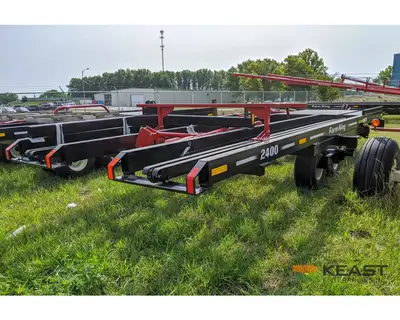

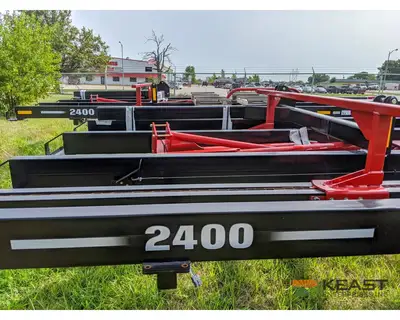

Farm King 2400 Round Bale Carrier, 8 Bale Capacity, Self Loading Arm

Iowa, United States
Asking Price
USD $35,268.00
1 available
601Listings|4Followers
Overview
Bale Wagons

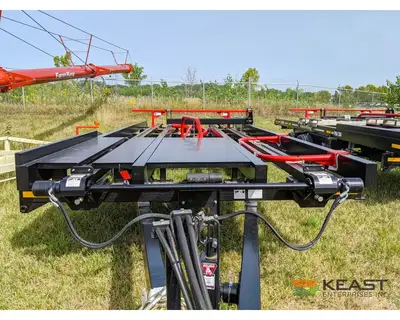

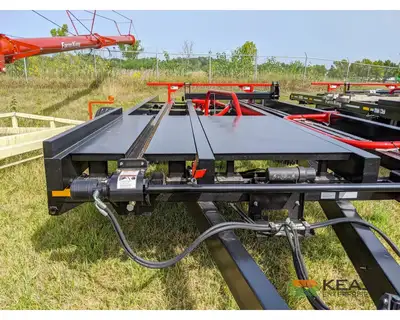

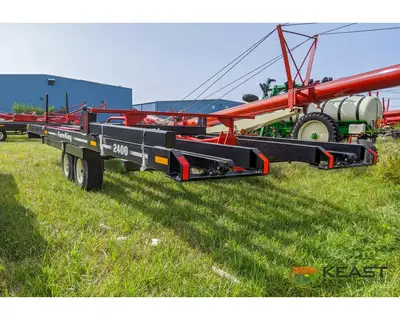

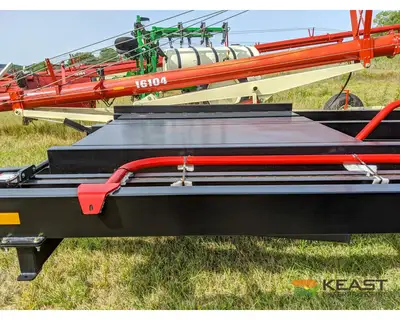

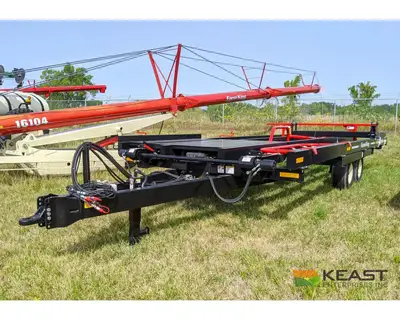

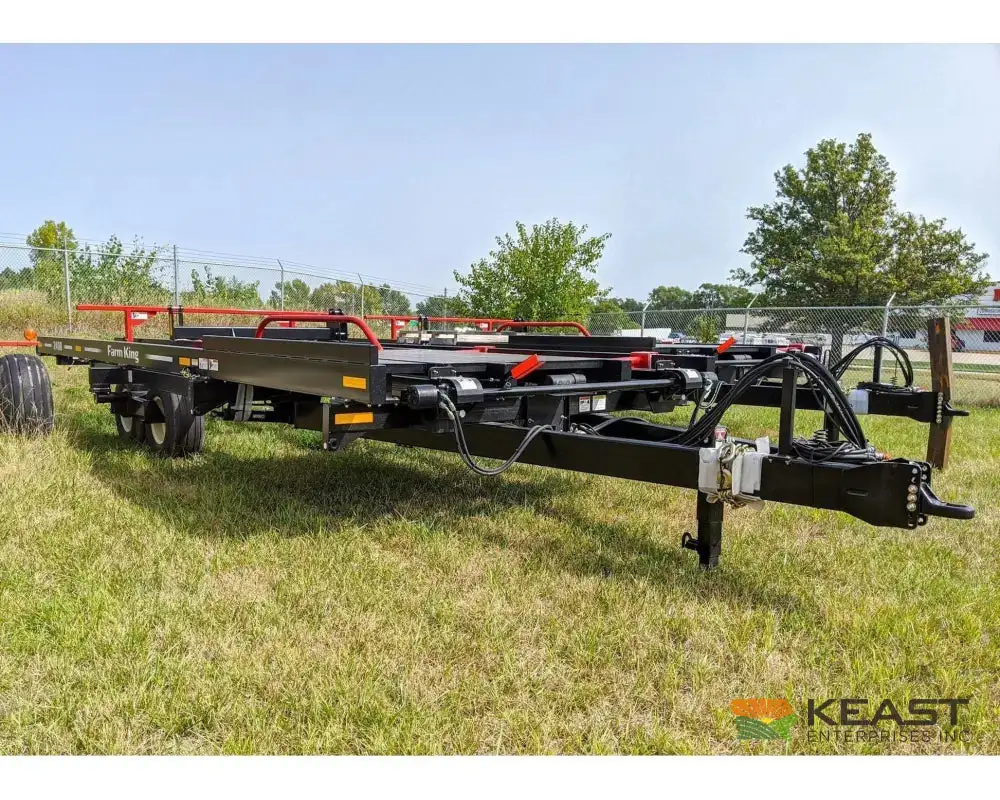

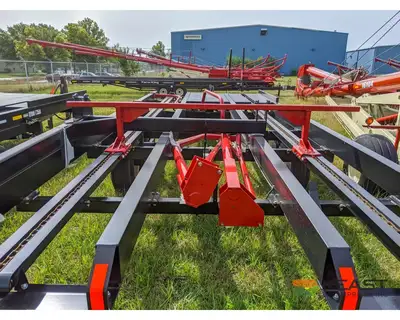

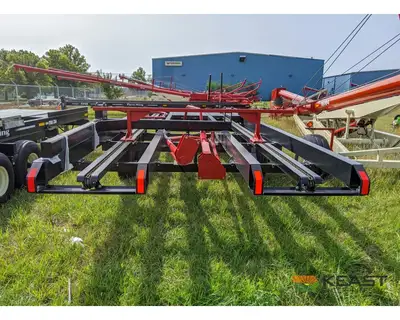

The Farm King 2400 is a double-wide bale carrier with a right-hand loading arm and hydraulic pusher. It collects bales in the field, then unloads them in end-to-end rows by tilting the deck and moving the pusher rearward.
A hand-held control operates the loading and unloading functions. The shorter deck carries eight 5-by-6-foot or ten 4-by-6-foot bales, subject to bale weight and the carrier's load rating.
Specifications
Allow for the wide frame when checking gates, road travel and the stacking area. The tractor needs suitable drawbar capacity, weight and braking for the loaded carrier as well as the listed horsepower and hydraulic connections. We can check those requirements against your tractor and bale weights.

Specs

Deck Length: 26 ft. (7.9 m)
Overall Length: 34 ft. (10.4 m)
Transport Width: 12 ft. 7 in. (3.8 m)
Bale Capacity: Eight 5-by-6-ft. or ten 4-by-6-ft. round bales
Gross Vehicle Weight: 18,720 lb.
Tractor Requirement: 80 HP minimum; tractor weight and braking must suit the loaded carrier

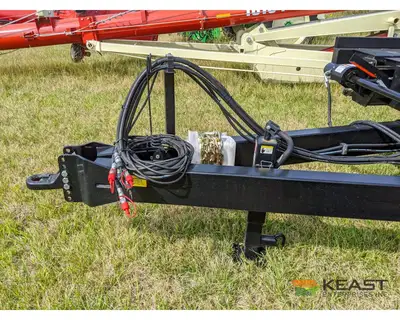

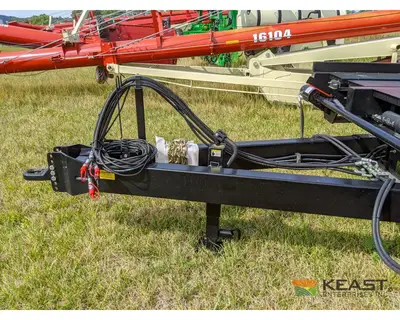

Hydraulics: Two double-acting circuits

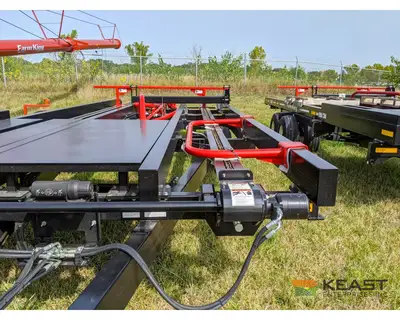

Pusher Motors: Two 22.0-cu.-in. hydraulic motors
Control: 12V hand-held remote; 15-amp service

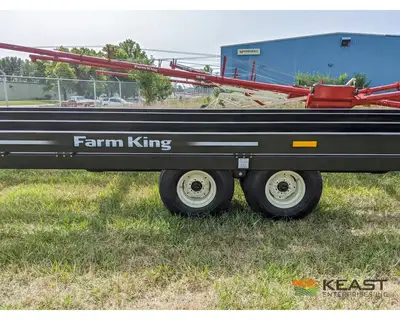

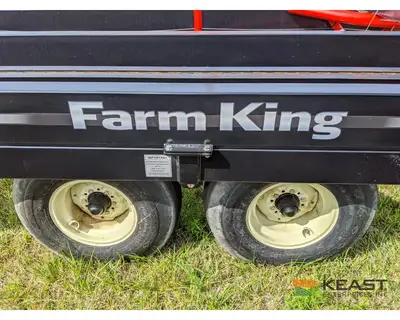

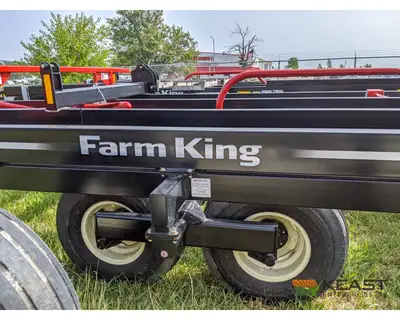

Axles: Tandem walking-beam

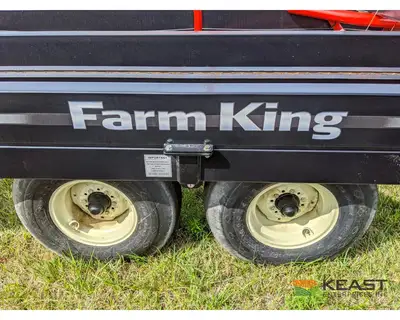

Tires: Four 12.5Lx15FI, load range F
Maximum Loaded Speed: 20 mph
Empty Hitch Weight: 1,750 lb.
Shipping Weight: 6,600 lb.
