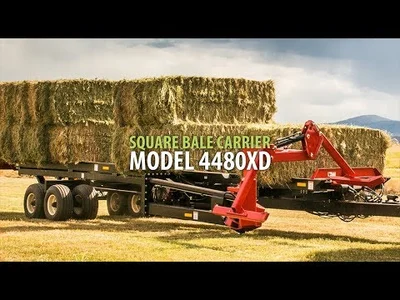

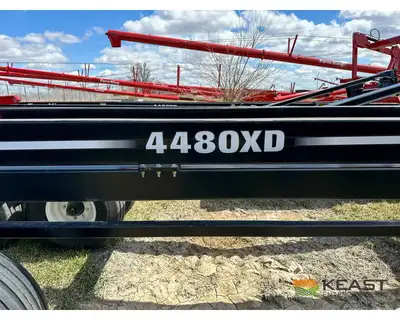

Farm King 4480XD Square Bale Carrier, Up to 24 Bale Capacity, Self Loading Arm

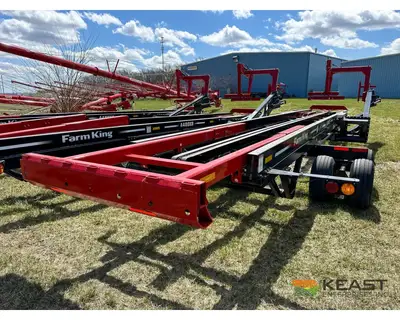

The Farm King 4480XD is a self-loading square bale carrier with a 34-ft. usable deck and a 25,000-lb. maximum load. It carries nine 4-by-4-ft., 18 3-by-4-ft., or 24 3-by-3-ft. bales per load.
4480XD Design and Operation

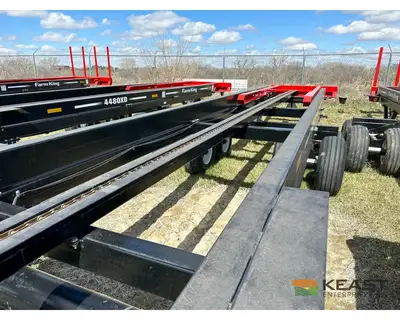

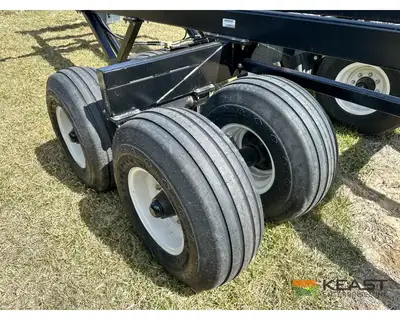

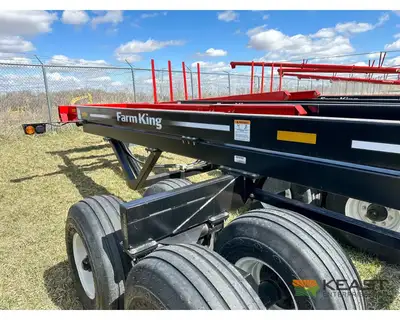

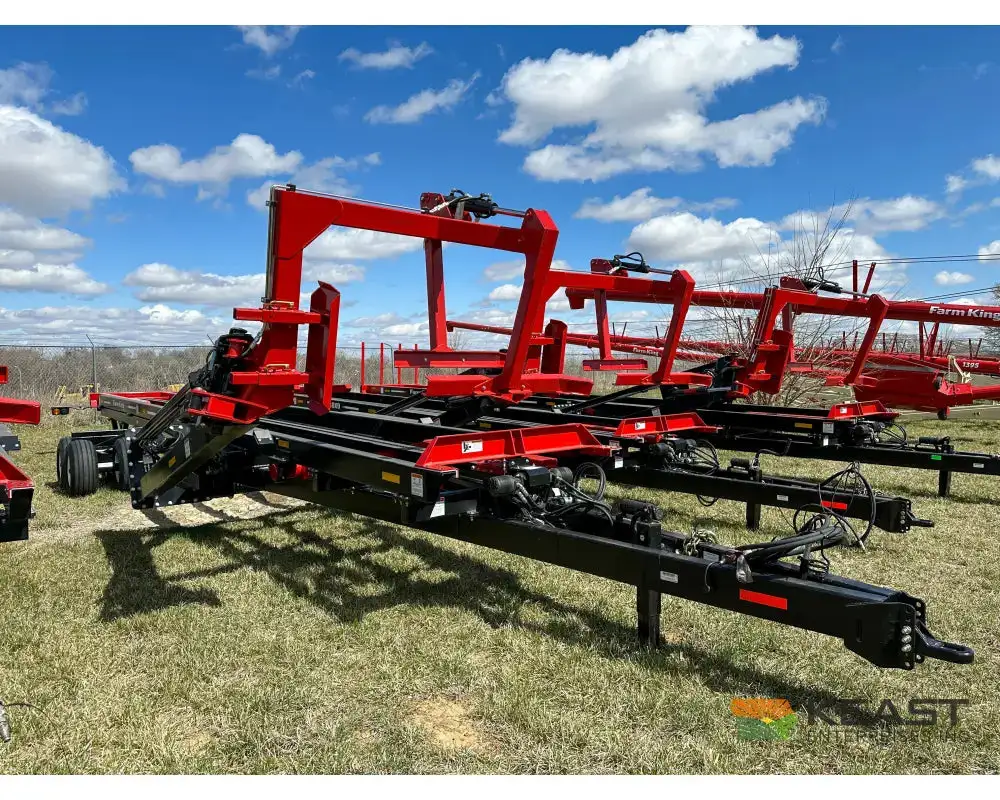

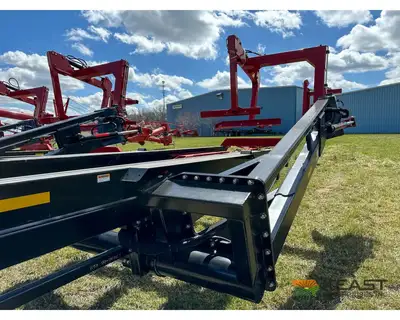

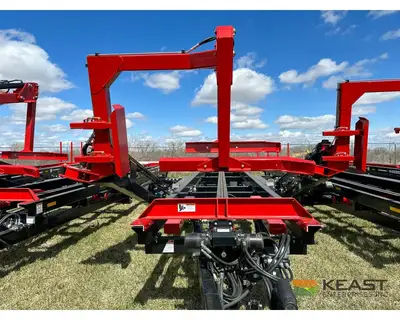

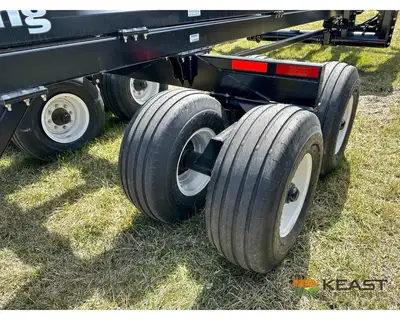

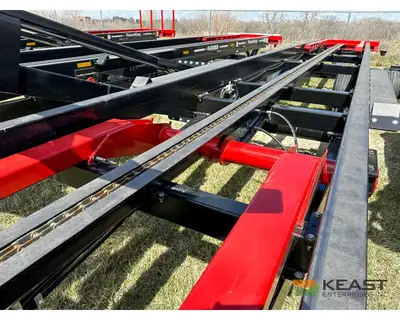

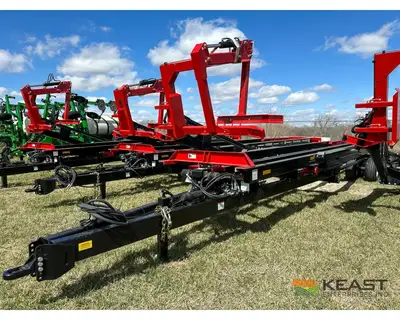

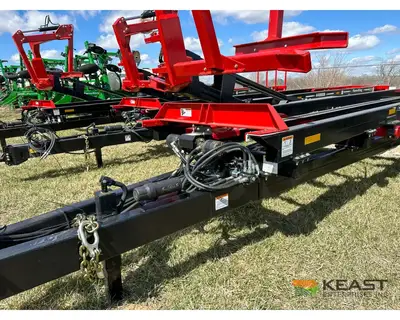

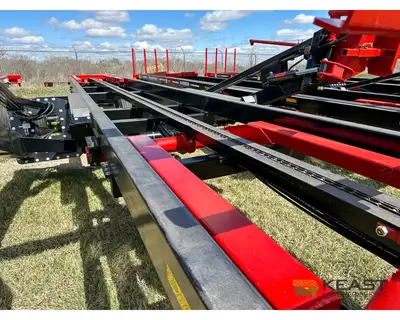

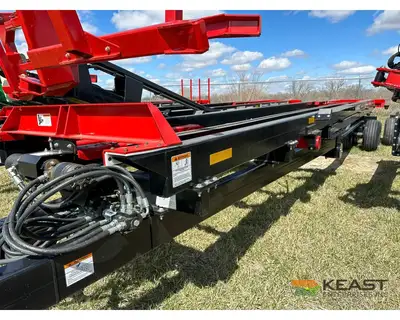

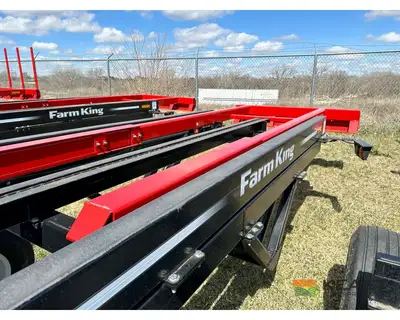

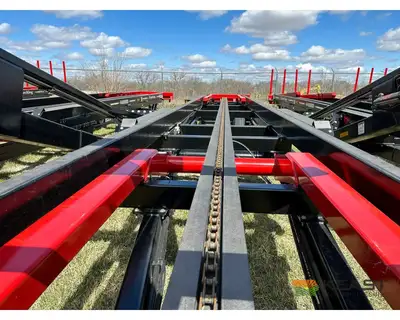

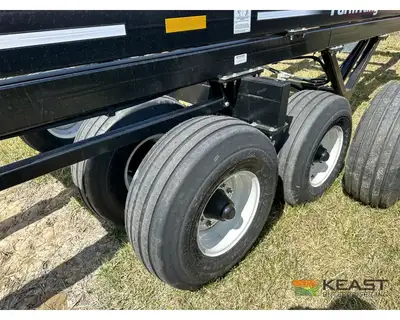

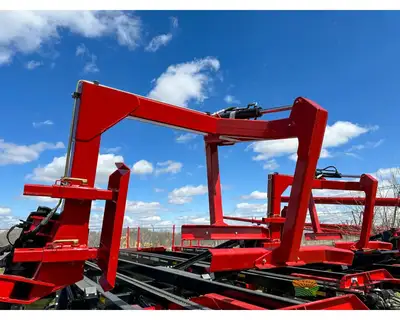

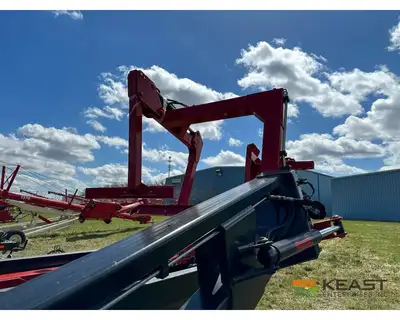

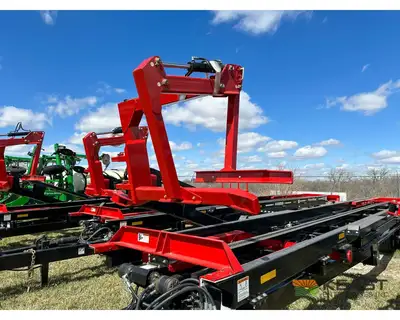

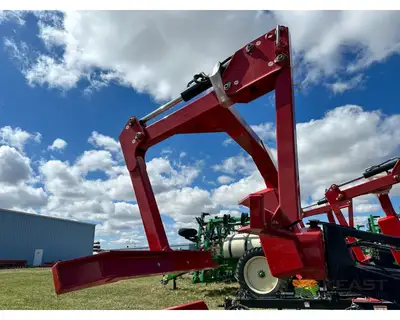

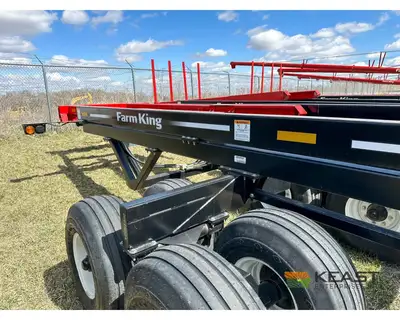

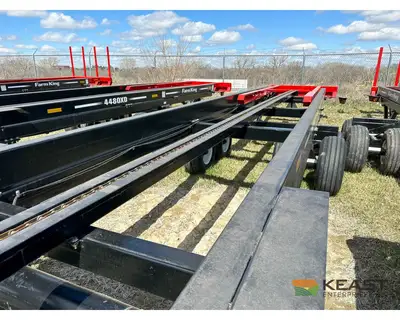

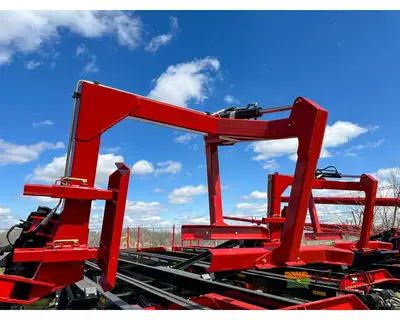

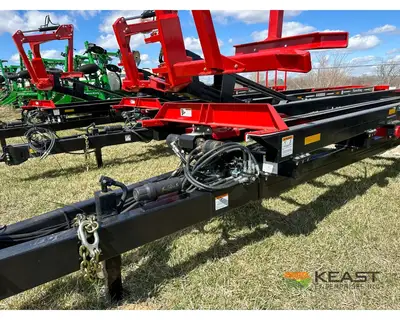

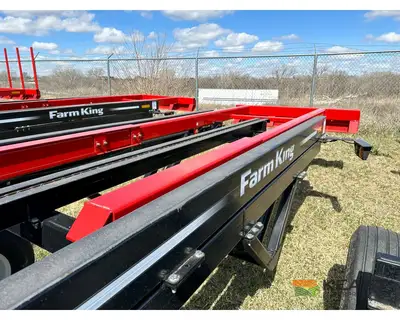

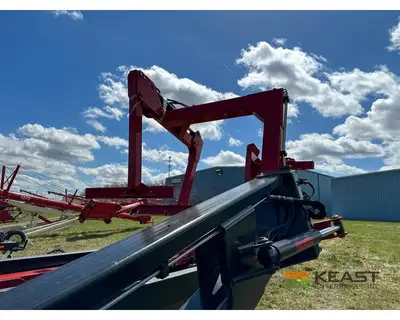

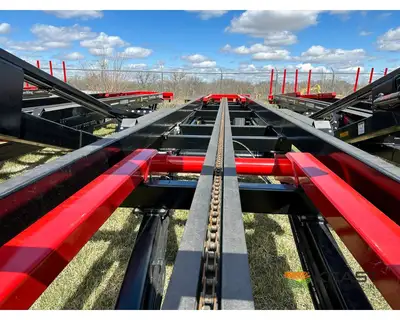

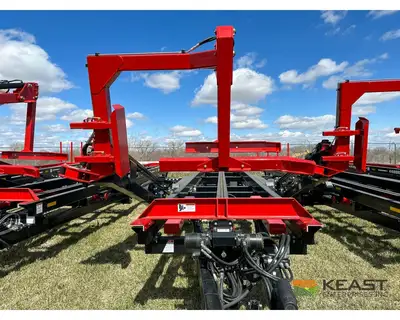

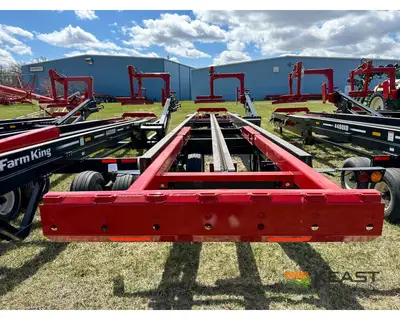

A side pickup arm loads bales onto graphite-coated deck beams, and two 22.2-cu.-in. hydraulic motors power the pusher. The pusher chain runs below the beams to reduce contact with bales and twine. Tandem walking-beam axles, eight-bolt hubs, and 12V controls support repeated field loading and organized unloading.
4480XD Specifications
Bale Size and Capacity
Farm King lists capacity for nine 4-foot by 4-foot bales, 18 3-foot by 4-foot bales, or 24 3-foot by 3-foot bales per load. The 25,000-pound payload limit still applies, so bale weight and the selected loading pattern must both remain within the carrier rating.
Fitment and Ordering

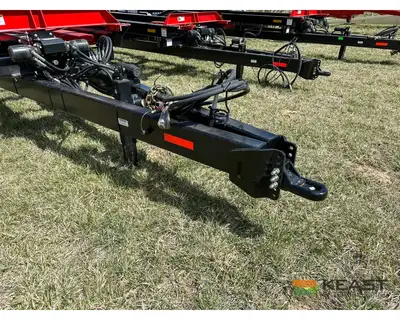

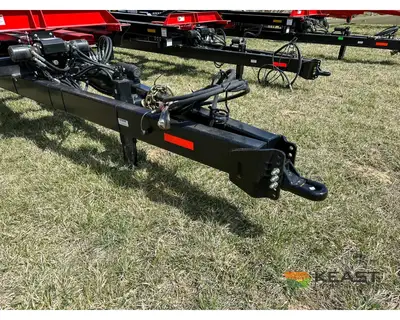

Confirm bale dimensions and weight, tractor horsepower and drawbar, hydraulic flow and remotes, road width and lighting requirements, field slopes, and the stacking pattern. Bale count is limited by both dimensions and total weight.
What limits bale capacity?
Bale dimensions, individual bale weight, total payload, deck space, and legal transport limits all apply.
What tractor information is required?
Send the tractor model, drawbar and hydraulic information, plus the bale size and expected weight.
