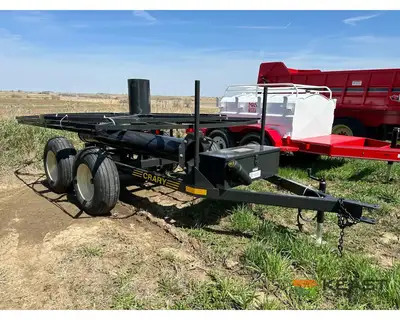

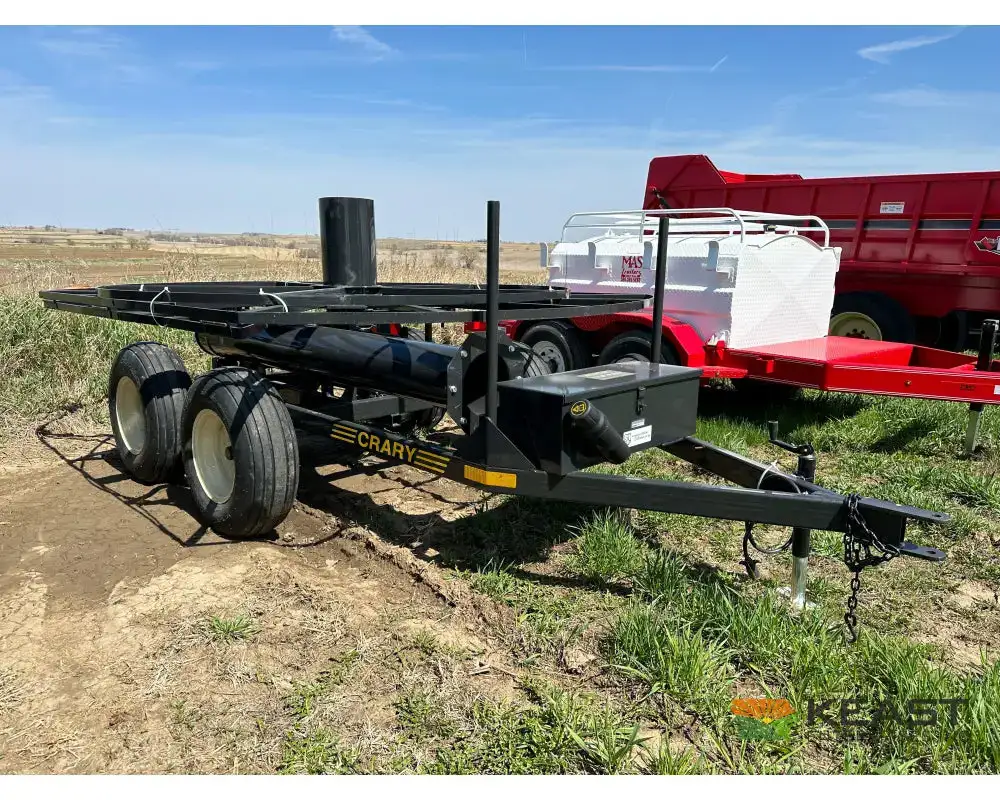

Crary Tandem Axle Stringer Trailer, Electric Spool Brake

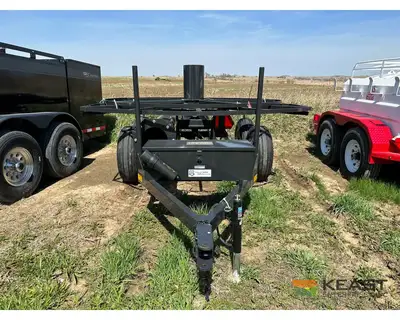

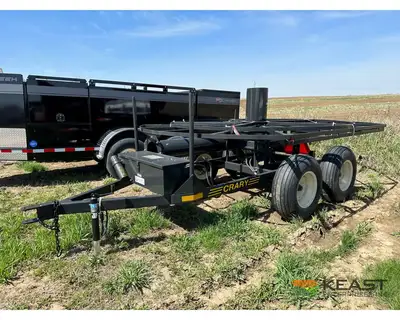

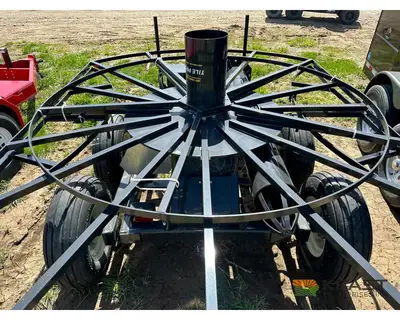

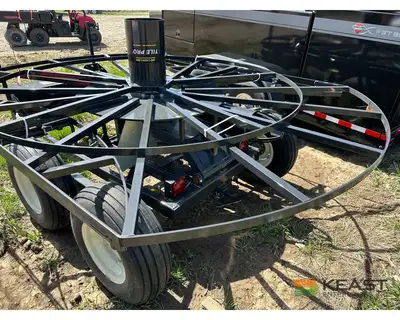

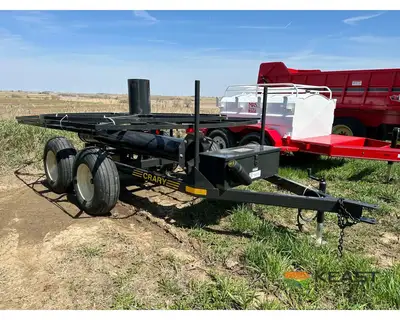

The Crary tandem-axle tile stringer trailer carries maxi rolls to the field and controls the roll as tile feeds toward the plow. Its 11-ft. diameter table has folding wings that reduce transport width to 8.5 ft., and the walking tandem axle follows rough field surfaces more smoothly than a fixed tandem.
Powered Table and Spool Control

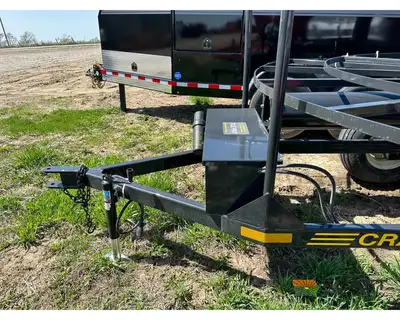

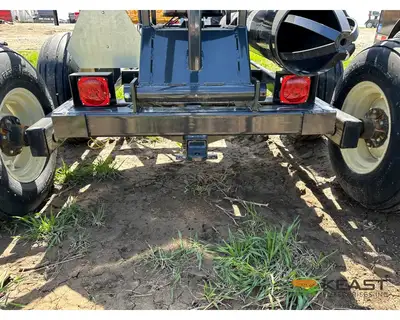

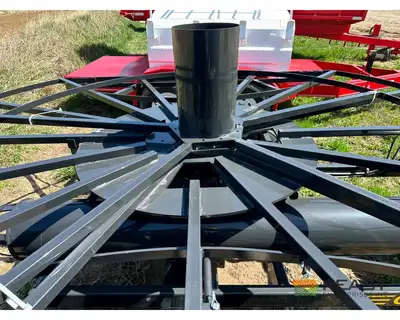

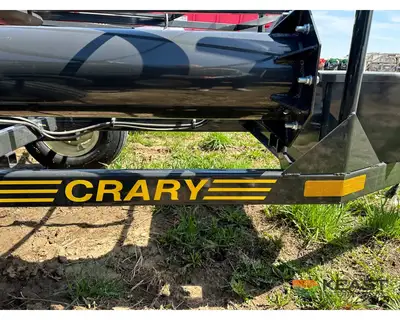

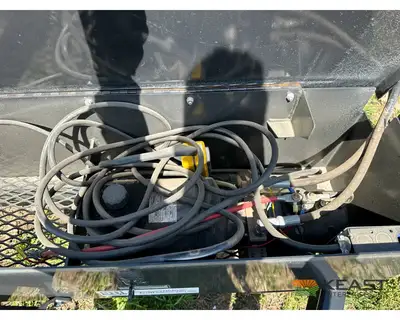

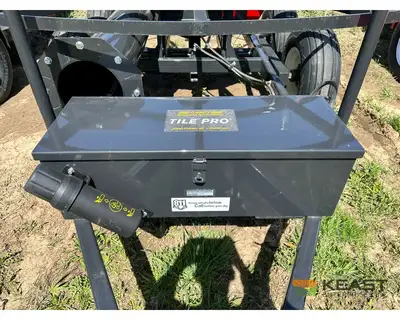

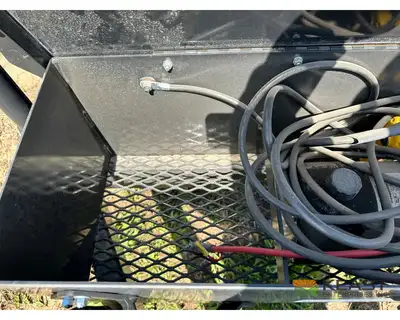

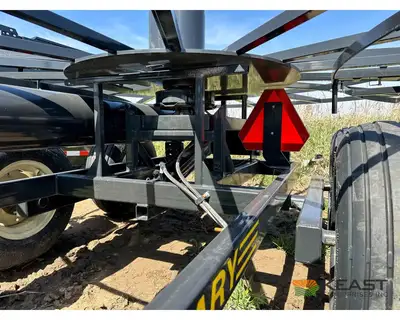

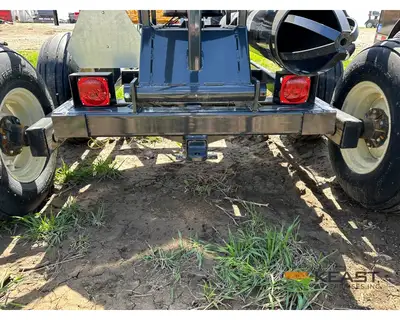

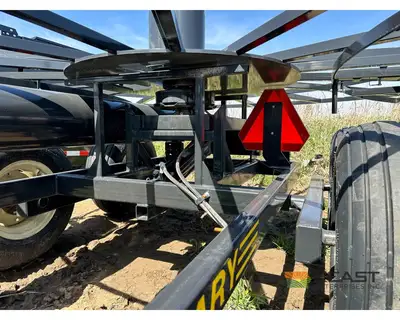

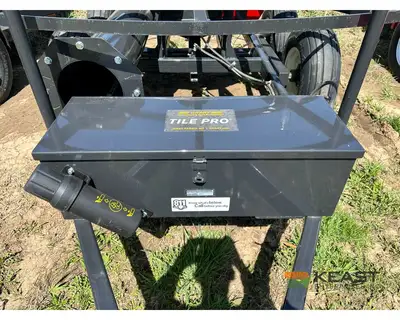

An electric spool brake regulates table speed while tile is being strung. The brake control and lift switch are mounted on a 30-ft. rubberized cord, allowing the operator to control the table away from the trailer. The configuration shown here includes an electric-hydraulic pump and tilt cylinder; Crary also specifies a replaceable table spindle, manual transport lock, tail lights, and pin hitch.

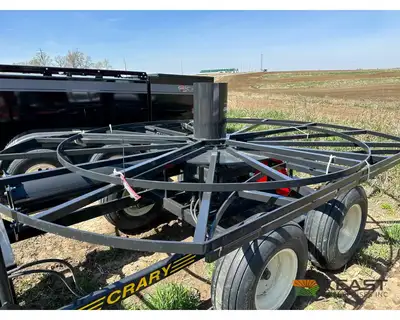

11-ft. table with folding wings
8.5-ft. folded width

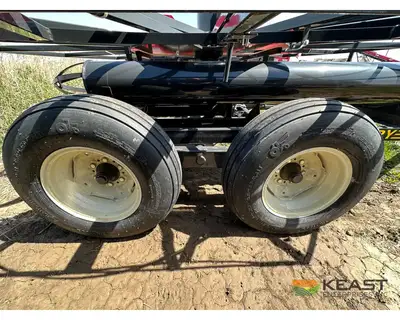

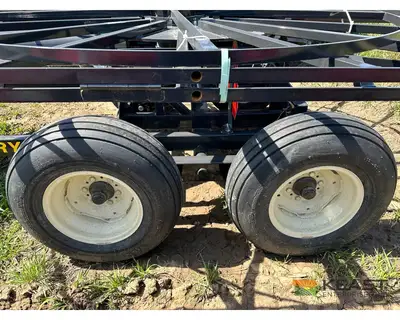

Walking tandem axle with 11L-15 8-ply flotation tires
Electric spool brake and powered table tilt
Specifications
Fitment and Configuration
To confirm the correct setup, we will review tile-roll size and weight, field conditions, towing vehicle, hitch, road use, table capacity, brake controls, and delivery.
How is table speed controlled?
The electric spool brake is operated through the corded control so the operator can regulate tile feed as field conditions change.
What should be checked before transporting a tile roll?
Confirm roll diameter and weight, legal road dimensions, hitch and towing capacity, lighting, tire condition, table lock, and local transport requirements.
