Used

Demco 28' Hopper Bottom Grain Trailer, 765 Bushel Heaped Capacity, Roll Tarp

Iowa, United States
Asking Price
USD $38,359.00
1 available
608Listings|5Followers
Overview
Grain Hopper Trailers

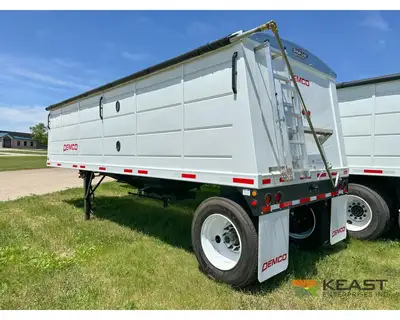

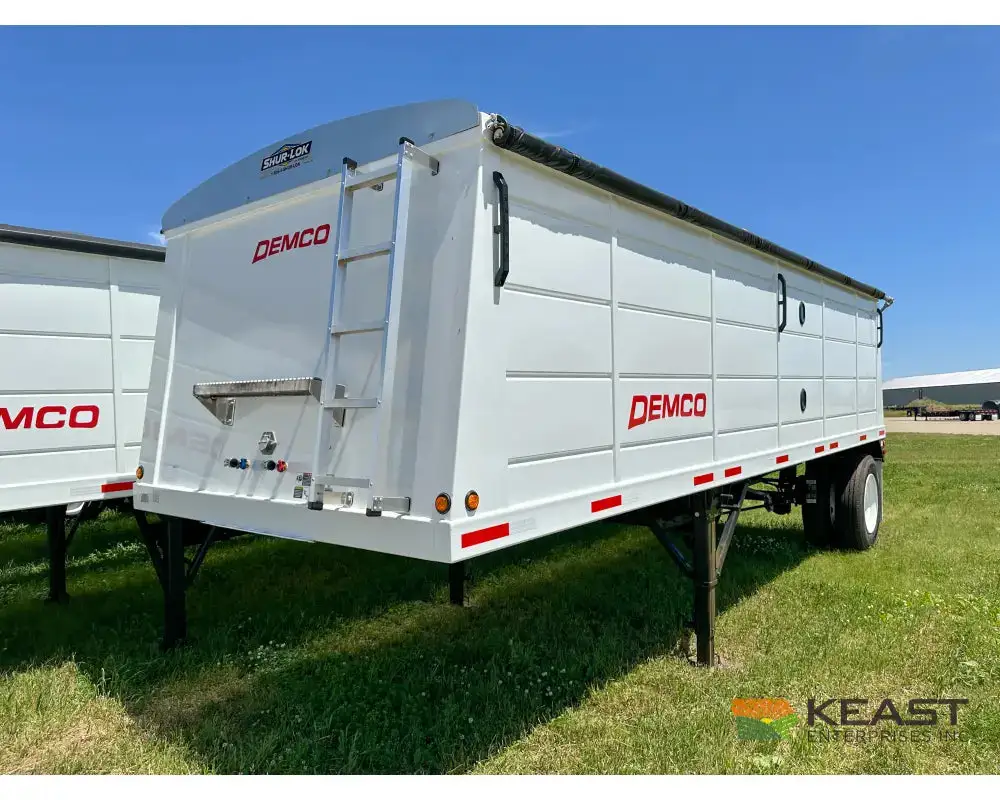

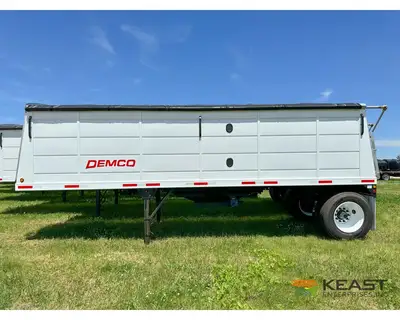

FET is included in the listed price. The Demco 28-foot steel hopper trailer holds 715 bushels struck and 765 bushels heaped. It retains the straightforward single-hopper layout of the 24-foot model while adding body length, a little more capacity, and tandem running gear.

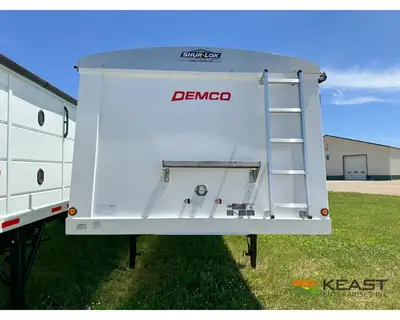

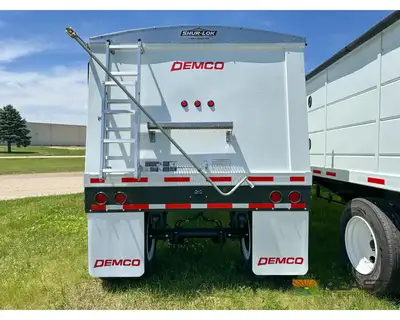

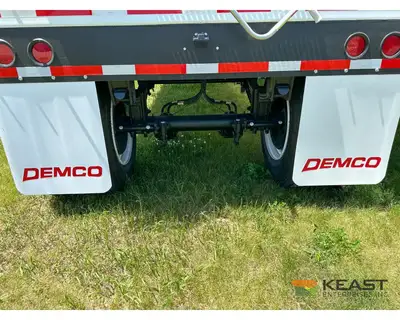

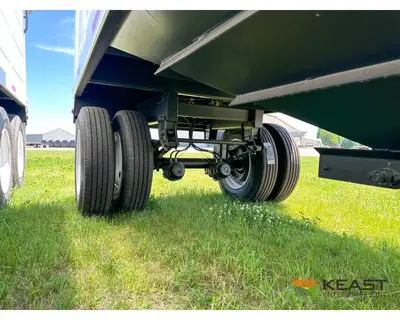

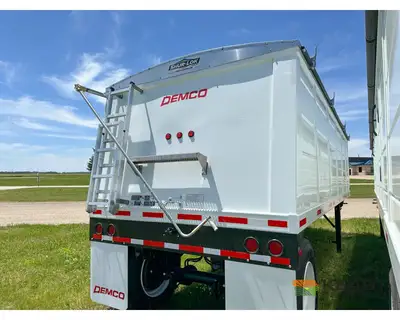

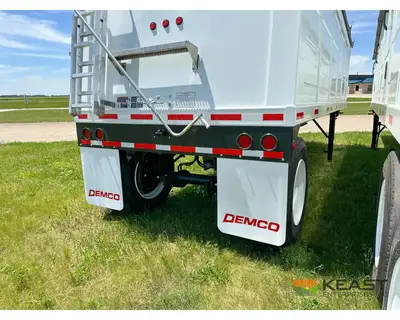

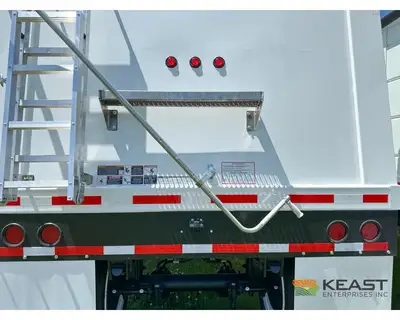

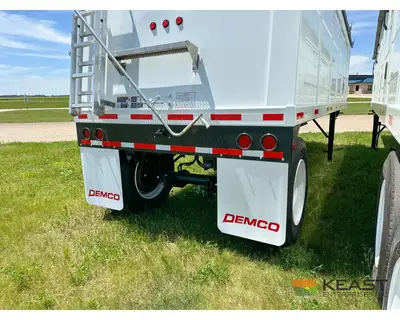

The single hopper unloads through a 30-by-20-inch sliding gate. This trailer is equipped with spring suspension, two 22,500-pound axles with ABS, 11R22.5 tires on 10-bolt steel wheels, and a Shur-Co roll tarp. Front and rear aluminum ladders, interior hopper rungs, a hopper sight window, sealed LED lighting, and anti-sail mudflaps are included.
Specifications
The Demco manual gives a 9,000-pound spring-ride reference weight for the 28-foot model with 66-inch walls and 24.5 tires. Since the tire package and other options can change the finished trailer weight, use the exact build sheet, VIN information, or a scale weight to determine empty weight before calculating legal payload.

Specs

Body length: 28 ft.
Capacity: 715 bu. struck / 765 bu. heaped (855 cu. ft.)

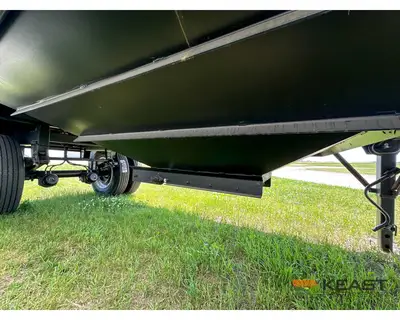

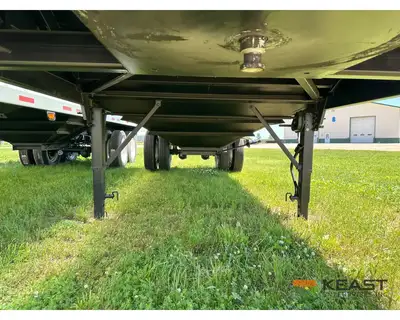

Hopper and gate: One hopper; 30 x 20 in. sliding gate
Sidewall height: 66 in.
Overall width: 98 in.
Ground to top rail: 9 ft. 6 in.
Empty hopper clearance: 25 in.
Kingpin to landing leg: 87 in.
Floor slope: 28 degrees

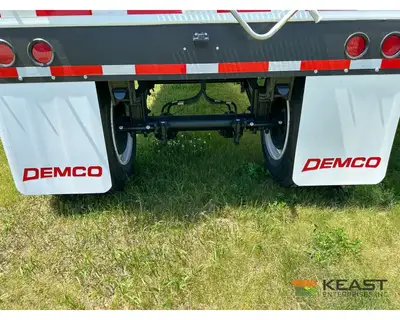

Running gear: Spring ride; two 22,500-lb. axles with ABS
Tires and wheels: 11R22.5 tires on 10-bolt steel wheels
Tarp: Shur-Co roll tarp
