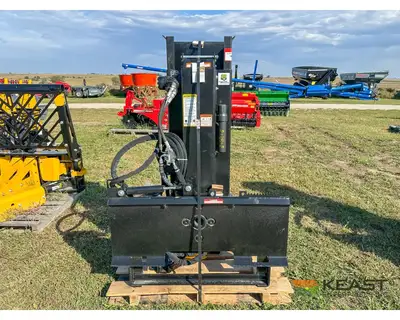

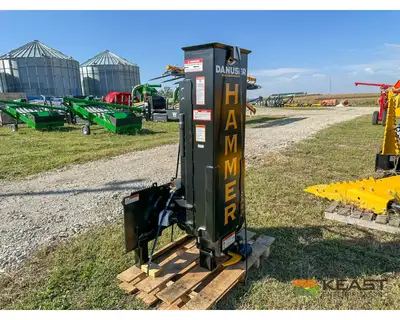

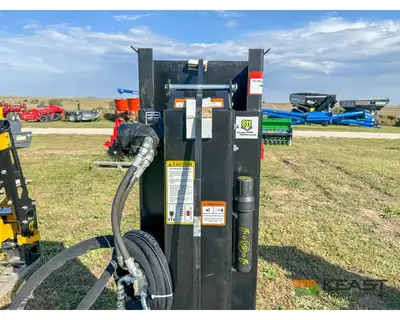

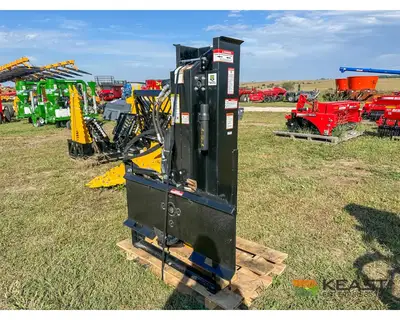

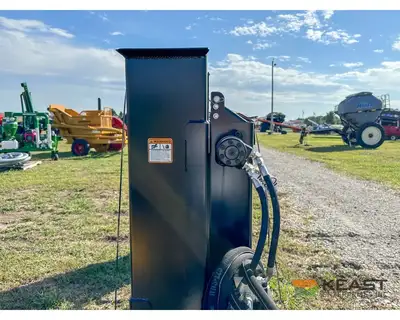

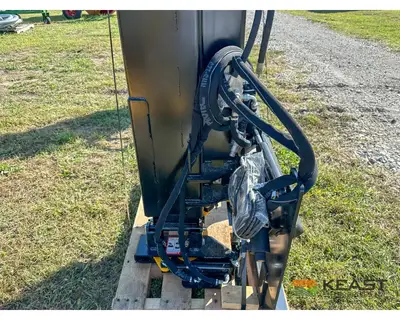

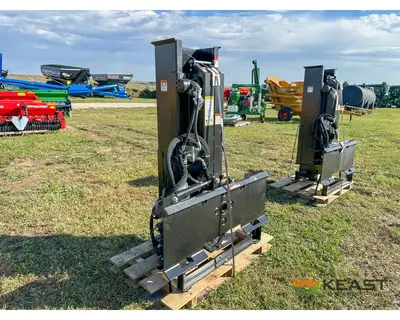

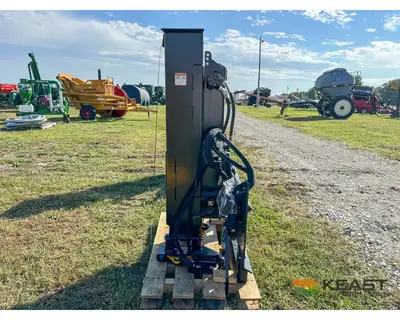

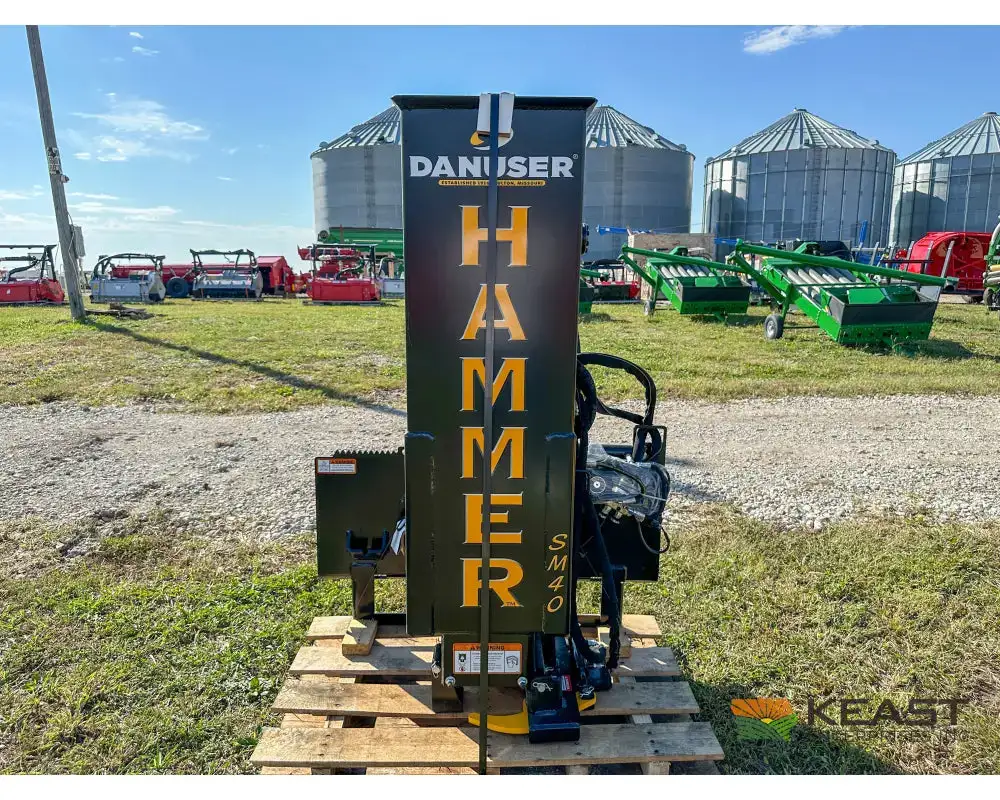

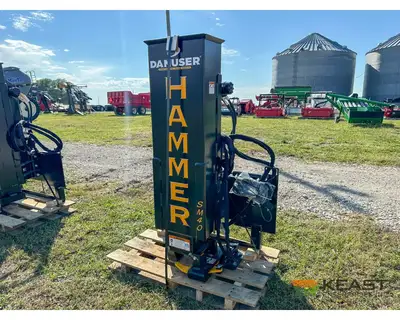

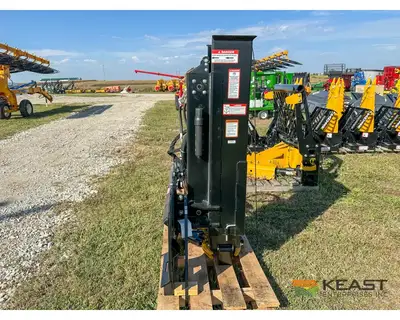

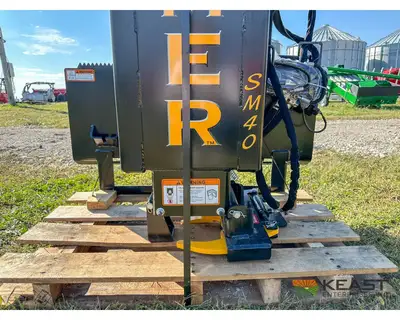

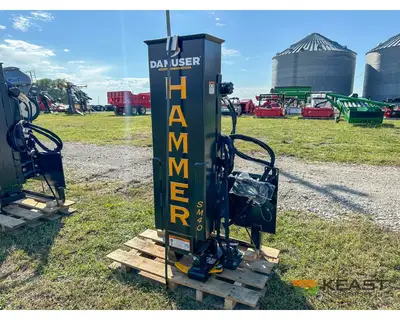

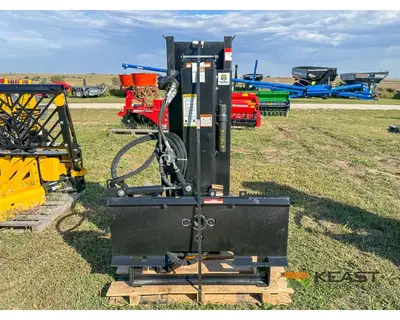

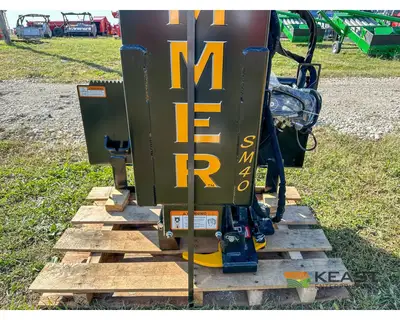

Danuser SM40 Post Driver, Hyd Tilt, Grapple, 40" Stroke, 96" Hoses, 300 lb Hammer, Skid Steer Mount

The Danuser SM40 is a hydraulic post driver with a 40-inch hammer stroke and a 300-pound standard hammer. This configuration includes hydraulic tilt, a grapple, and 96-inch hoses for positioning and holding posts from the operator’s seat. Danuser lists hydraulic requirements of 12-30 GPM at 1,500-3,000 PSI.
Key Features
40″ Free-Fall Hammer Stroke
The SM40 can achieve full-stroke impact on every cycle or use short-stroke mode for precise depth control. The free-fall design does not use return springs or a rebound cylinder.
300 lb Hammer, 500 lb with Weight Kit
A standard 300 lb hammer delivers up to 1,025 ft‑lbs of energy. An optional 200-pound weight kit increases hammer weight to 500 pounds and rated impact energy to 1,709 foot-pounds.

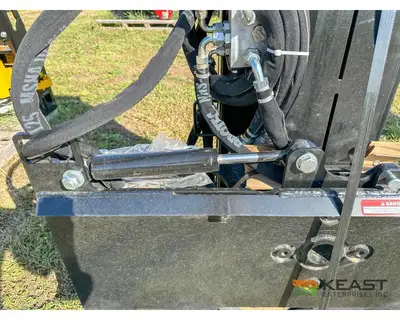

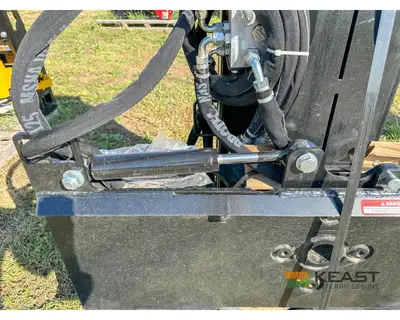

Hydraulic Tilt (±20°)
Hydraulic tilt provides 20 degrees of side-to-side adjustment for positioning posts on uneven ground.

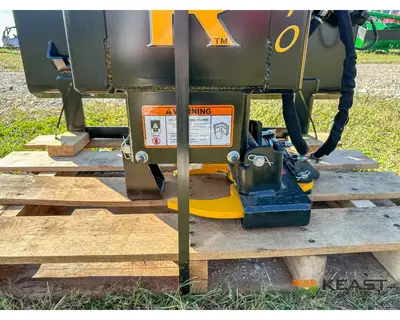

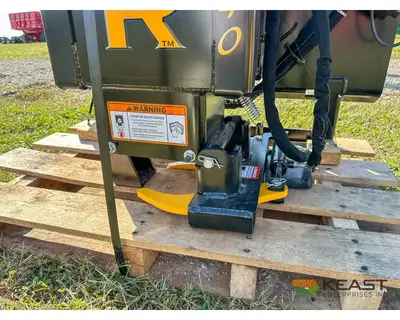

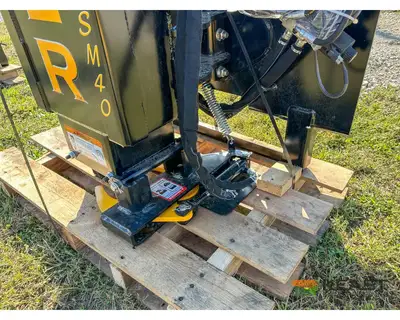

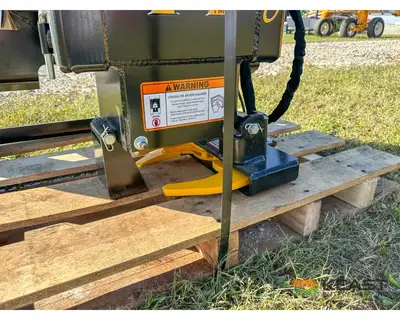

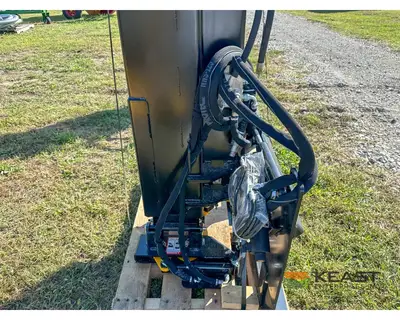

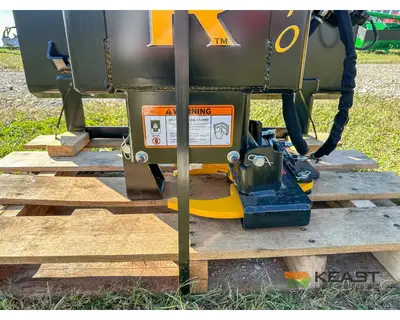

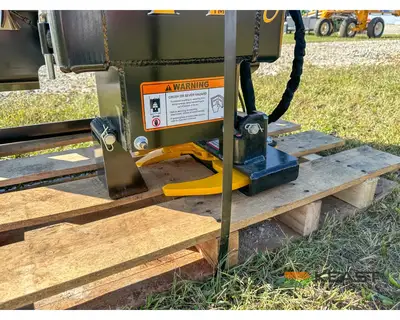

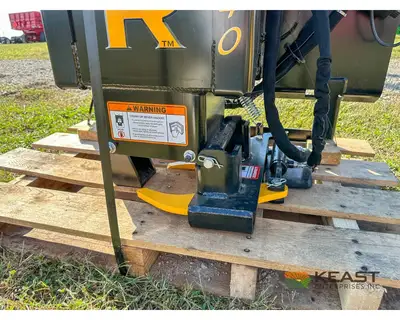

Hydraulic Grapple
The hydraulic grapple picks up, positions, and holds a post while the operator remains in the cab.

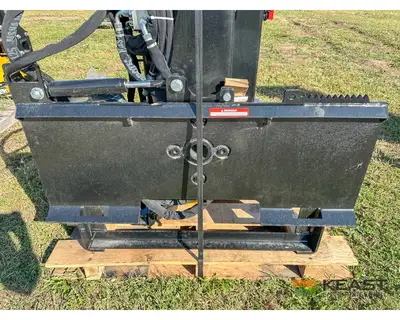

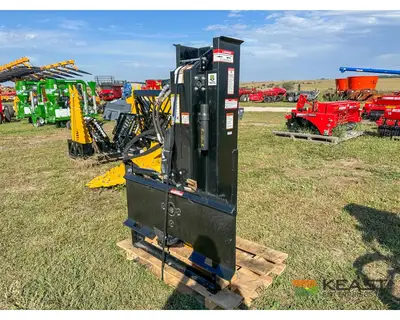

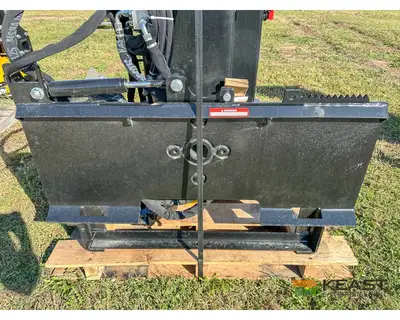

Universal Quick-Attach Mount
This configuration uses a universal skid-steer quick-attach plate and requires 12-30 GPM at 1,500-3,000 PSI.

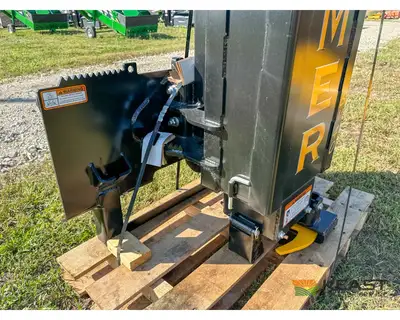

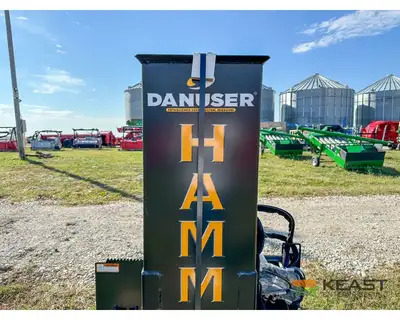

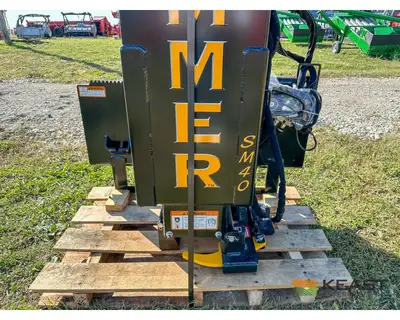

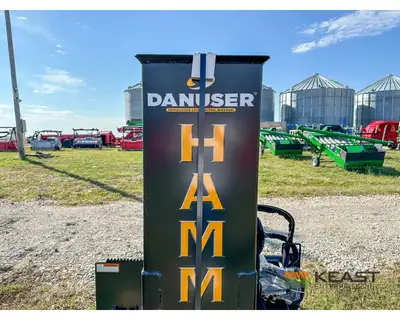

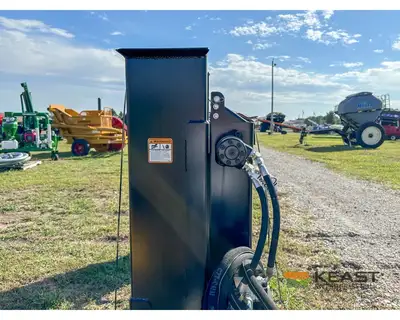

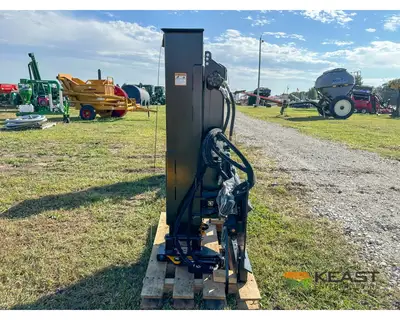

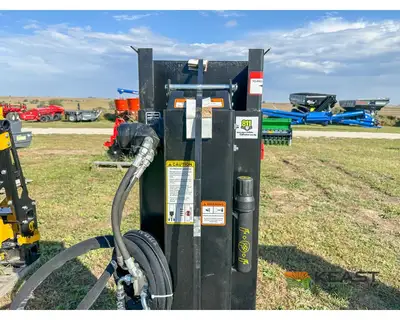

Hammer Housing and Mount

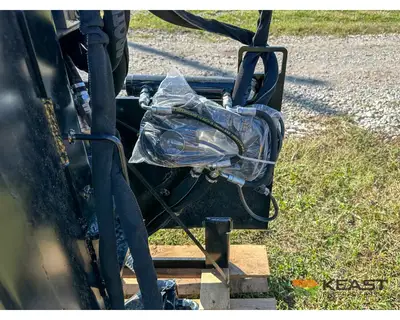

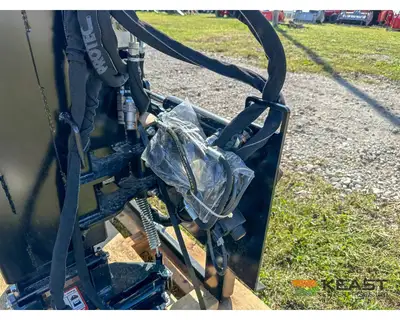

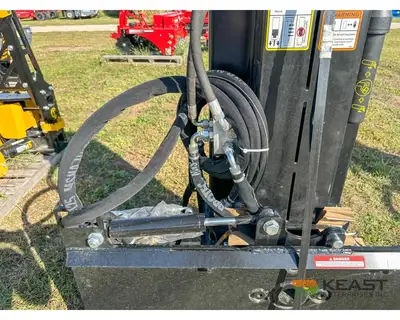

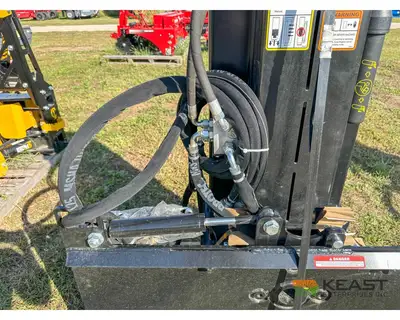

The hammer housing and mount use 3/4-inch steel. Pivot points are greaseable, and the hydraulic system uses industrial hose fittings.
Technical Specifications
Hammer Performance and Positioning
Danuser rates the SM40 for up to 35 strokes per minute. The 300-pound hammer produces 1,025 foot-pounds of impact energy, while the optional 500-pound hammer configuration is rated at 1,709 foot-pounds. Hydraulic tilt provides up to 20 degrees of side-to-side adjustment, and short-stroke operation gives the operator additional control over final post depth.
