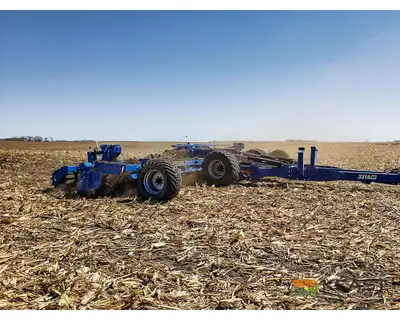

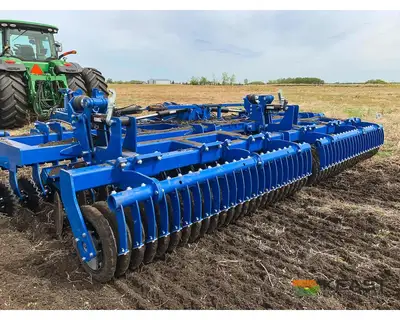

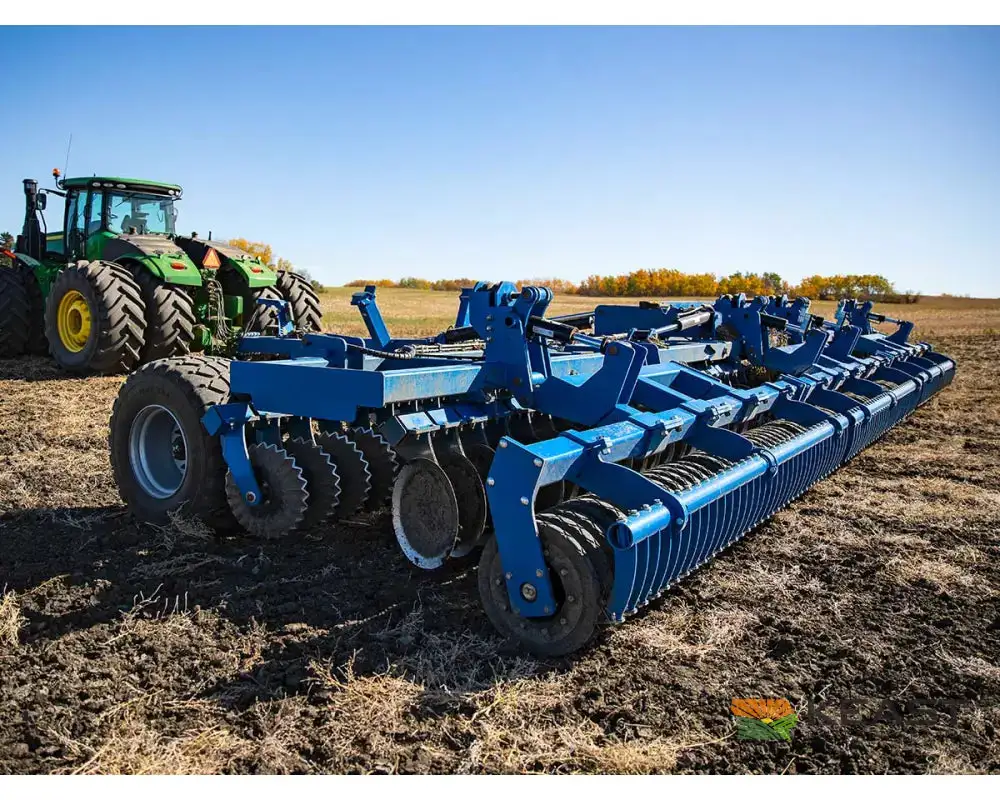

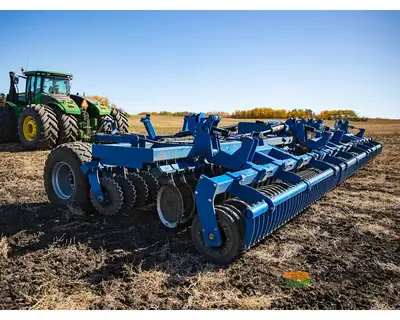

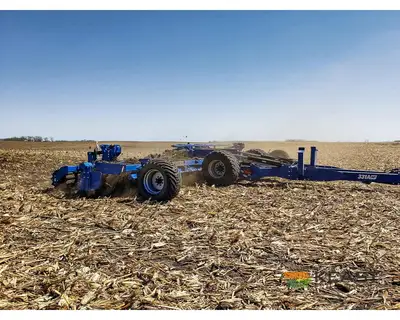

Brandt 326A HP High-Speed Disc, 26′ 8″ Working Width, 22″ Discs, 3-Section, Spring Roller
Overview
The Brandt 326A HP high-speed disc combines a three-section folding frame with U-notch front discs, smooth rear discs, and a spring finishing roller. It is set up for cutting and mixing residue while preparing a worked surface behind the machine.
Rubber torsion suspension allows each disc arm to move independently. The rear spring roller finishes the soil after the discs, making the roller choice an important part of the complete tillage package.
Specifications
The tractor must handle both the disc's draft in the field and its hitch weight in transport. Check folded width and height against gates, storage buildings, and the roads between fields.
Photos are for reference only.
Specs
Frame Type: 3-section folding
Working Width: 26′ 8″
Disc Diameter: 22″ discs
Number of Discs: 62
Disc Spacing: 5″
Disc Angle: 14° front gang / 17° rear gang
Disc Configuration: U-notch front discs, smooth rear discs
Max Working Depth: Up to 9″ (with 22″ discs)
Rear Finishing: Spring roller (rear)
Machine Weight: 27,664 lb
Hitch Weight: 8,299 lb
Transport Width: 14′ 5″
Transport Height (max): 12′ 4″
Tractor HP Requirement: 300-520 HP (depth/speed/conditions dependent)
Tires: 600/50R22.5 (transport), 550/45R22.5 (wing)
