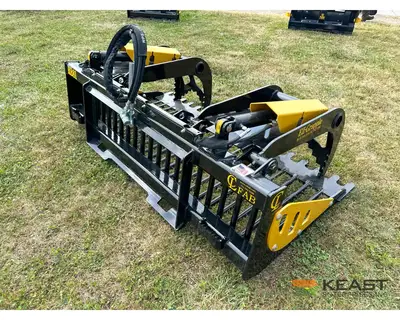

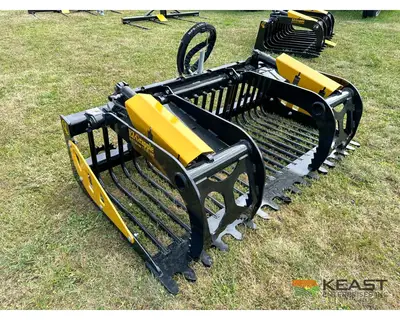

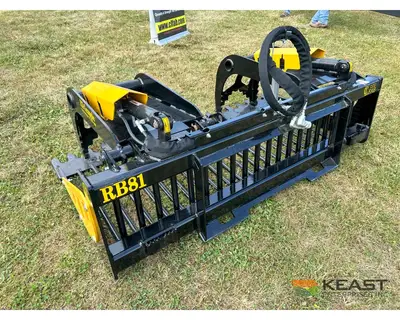

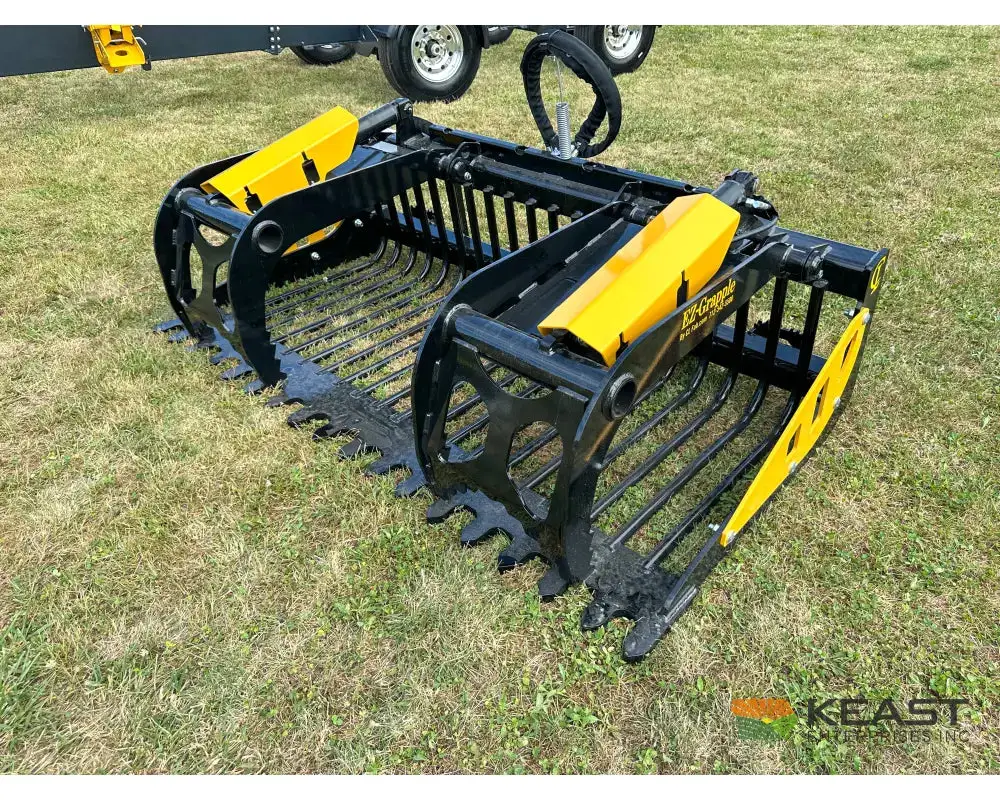

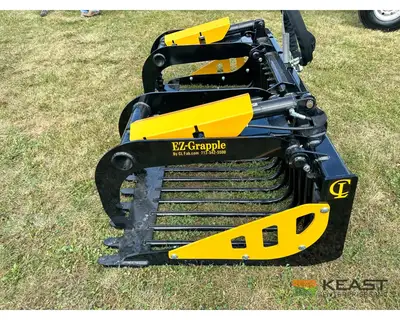

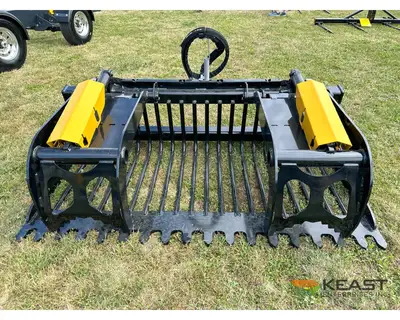

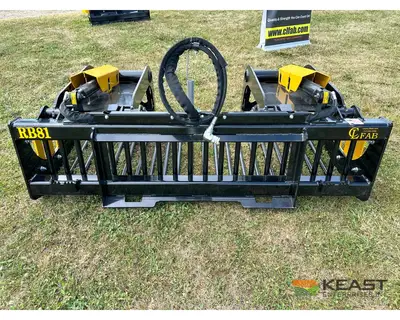

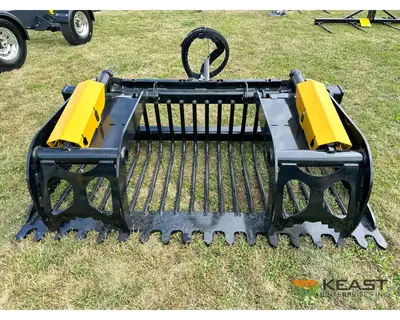

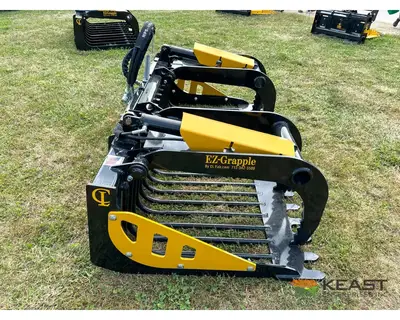

CL Fabrication EZ Grapple, 81″ Width, 50″ Opening, 1/2″ AR400 Tines, Skid Steer Mount
Overview
The CL Fabrication EZ-5081 grapple handles brush, logs, roots, and bulky debris from a skid steer quick-attach mount. The wide opening lets the upper tines close around irregular loads, while the open lower tines allow loose material to fall through.
AR400 tines and a one-piece tine brace reinforce the working end. Guarded cylinders and rods help protect the hydraulics, and greasable pins and bushings provide accessible service points.
Specifications
Consider the size of the material as well as grapple width when choosing an attachment. We can help check the carrier's lift capacity and auxiliary hydraulic connection for this grapple.
Specs
Mount / Interface: Skid Steer Quick Attach (SSQA)
Working Width: 81"
Grapple Opening: 50"
Tines: 10
Tine Spacing: 9"
Tine Material / Thickness: AR400 steel, 1/2" thick (upper & lower)
Frame Tubes: 4" x 4" x 1/4" (upper & lower)
Hydraulic Cylinders: 2.5" x 8" welded cylinders
Cylinder / Rod Protection: Guarded
Pivot Pins: 1.5" diameter, CF1045
Pivot Points: Thick-wall greasable bushings
Overall Height (open): 57"
Front-to-Rear Depth: 47.5"
