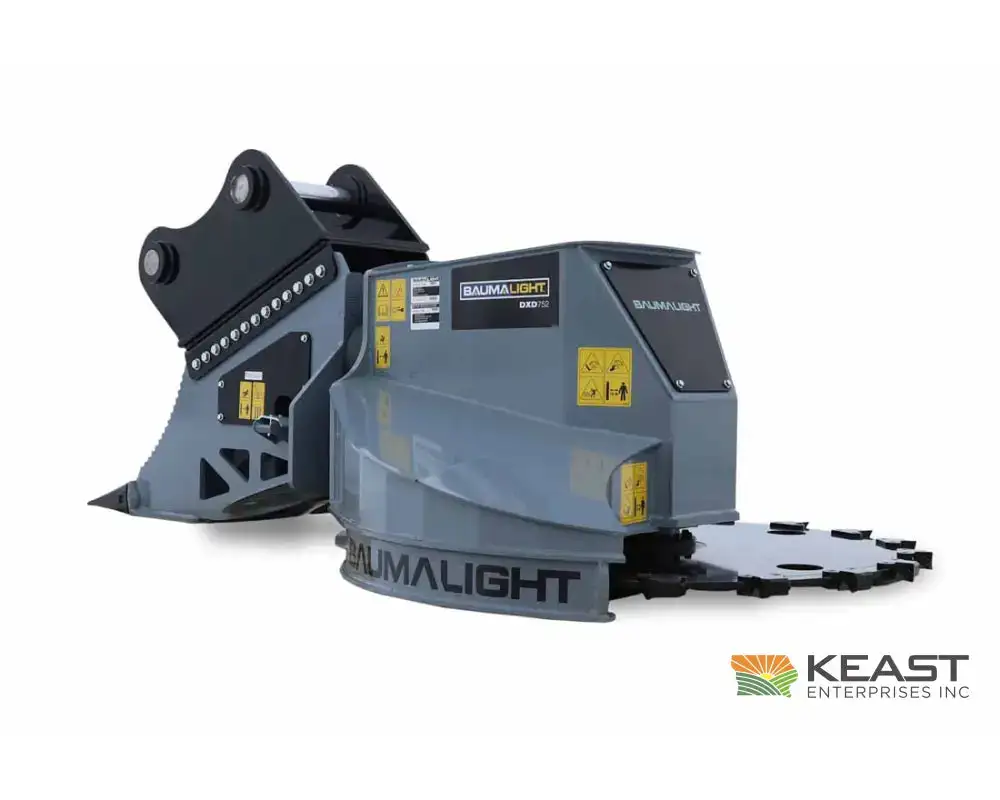

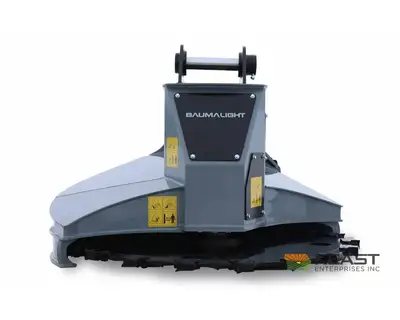

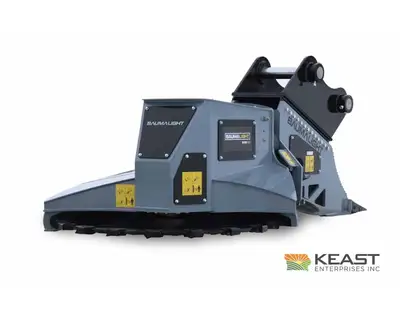

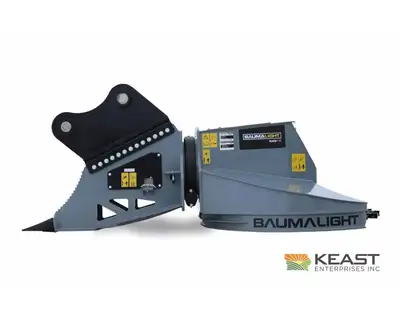

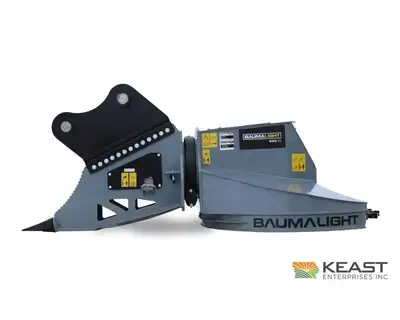

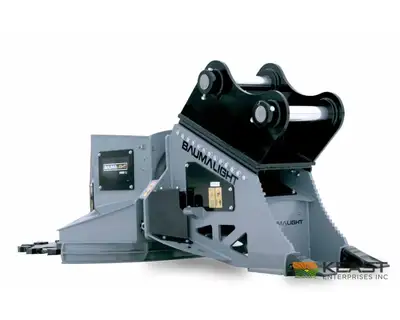

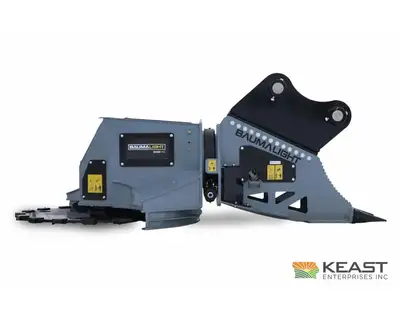

Baumalight DXD752 Articulating Excavator Tree Saw, 52" Blade, 25-60 GPM Piston Motor, 20" Cut

The Baumalight DXD752 is an excavator-mounted tree saw with a 52-inch blade, full 360-degree hydraulic rotation, and a maximum cut of 20 inches. Its bent-axis piston motor is matched to 25-60 GPM auxiliary hydraulic flow, and the bolt-on adaptor system allows the mount to be built for the excavator.
DXD752 Cutting and Rotation
A hydraulic slew drive provides full 360-degree head rotation for commercial clearing, right-of-way work, and cutting from varied angles. The blade is supported by an overhung load adaptor with tapered roller bearings. A blade shield directs chips, and replaceable B8000 Beaver teeth provide serviceable cutting edges for land clearing, fence-line work, trimming, and limbing.
Baumalight DXD752 Specifications
Excavator Fitment
Confirm excavator operating weight, auxiliary flow and pressure, case-drain plumbing, electrical controls where required, coupler dimensions, pin size, pin spacing, stick width, and hydraulic hose length. Hoses and couplers are not supplied with these excavator models.
How far does the DXD752 head rotate?
The slew drive provides full 360-degree hydraulic rotation.
What excavator size does Baumalight recommend?
Baumalight lists the DXD752 for 10- to 22-ton excavators.
What electrical controls are required?
The hydraulic rotation valve requires an auxiliary electrical connection. An optional hand control may be used when the excavator lacks the needed auxiliary electrical function.
