Used

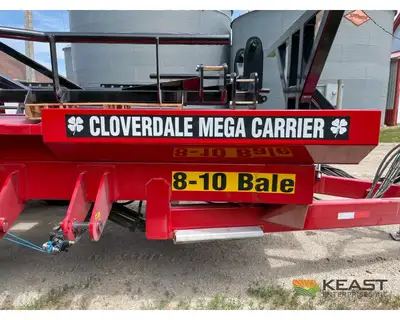

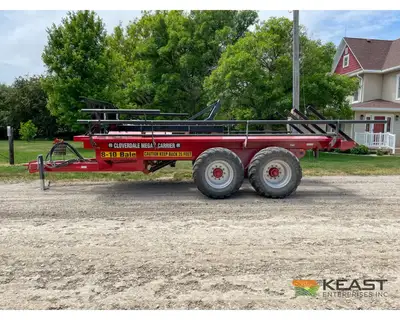

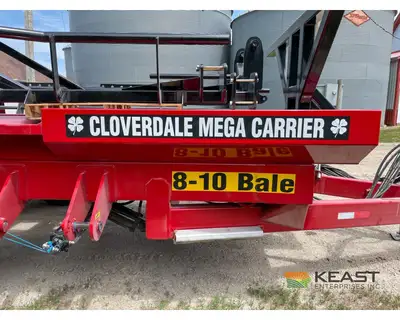

Cloverdale 8/10 Mega Bale Carrier, Self-Loading Arm, Stainless Steel Deck

Iowa, United States
Asking Price
USD $38,890.00
1 available
601Listings|4Followers
Overview
Bale Wagons

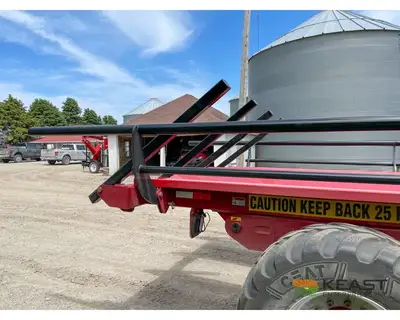

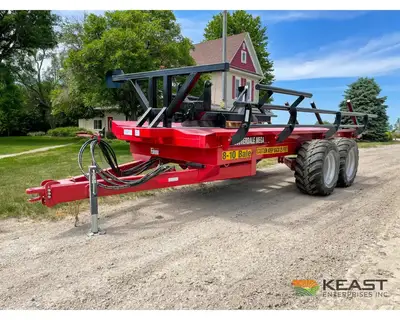

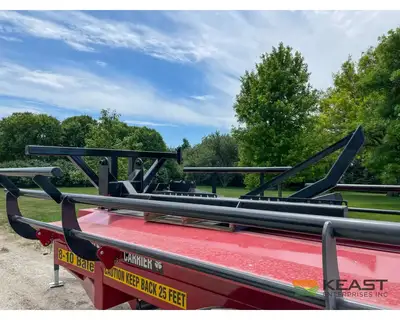

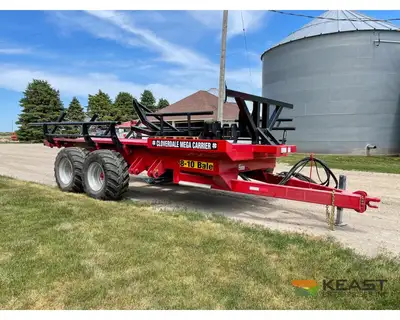

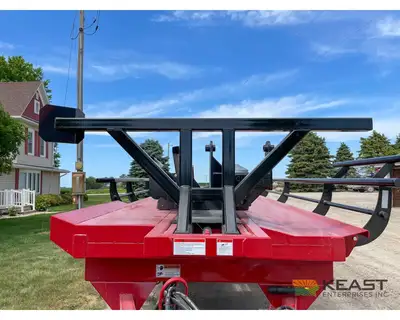

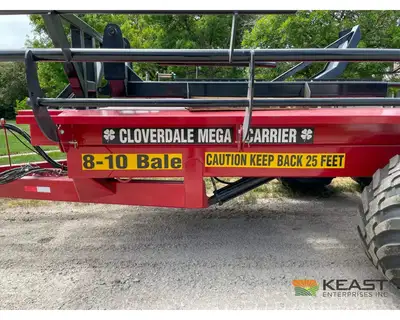

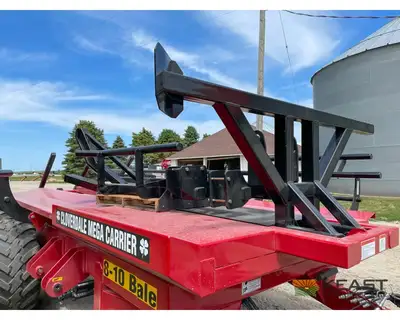

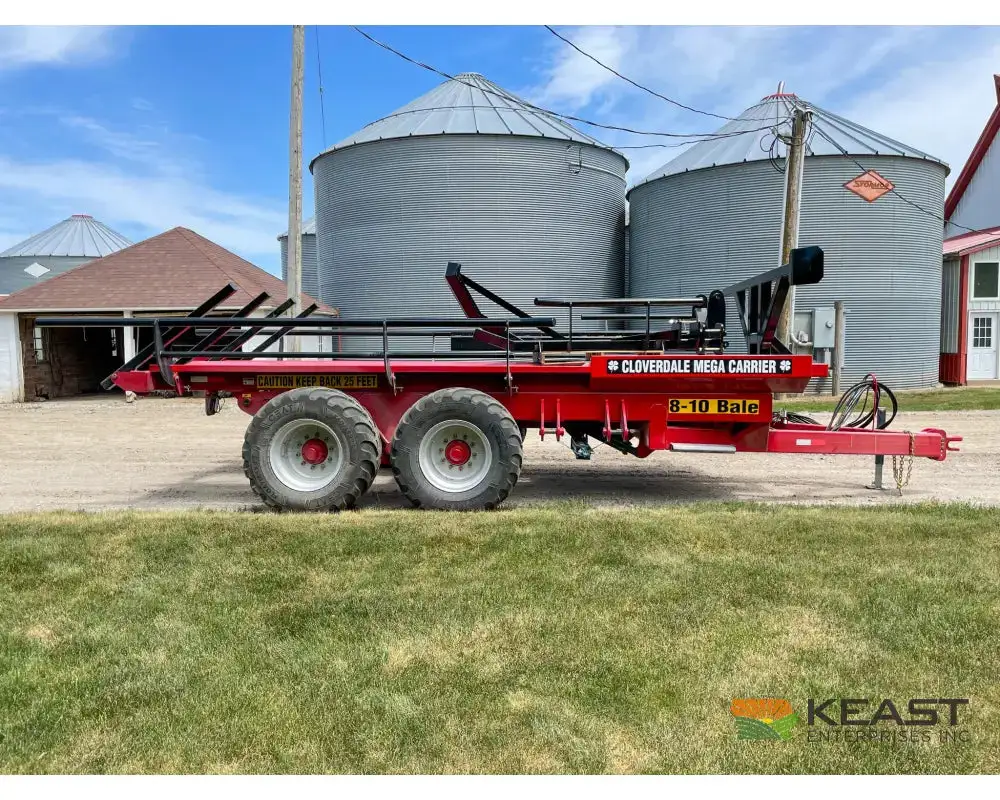

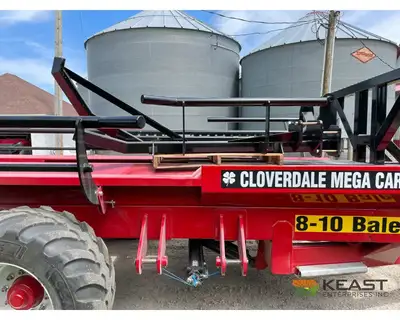

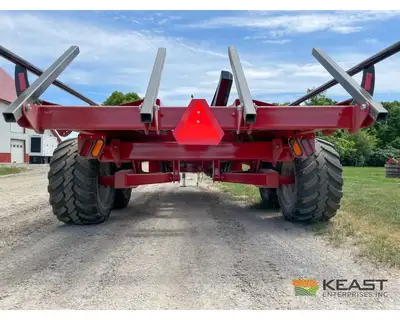

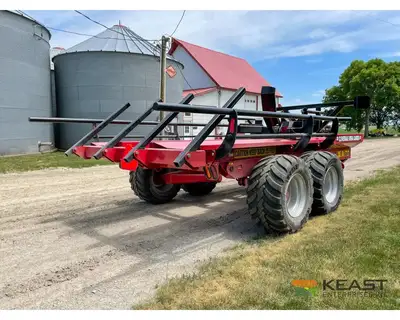

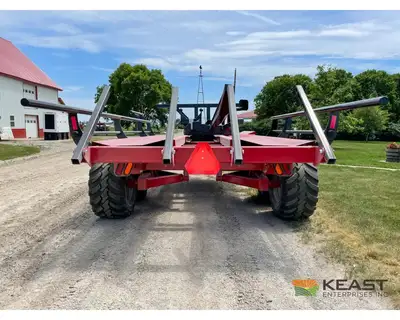

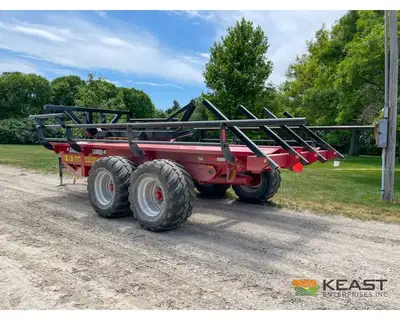

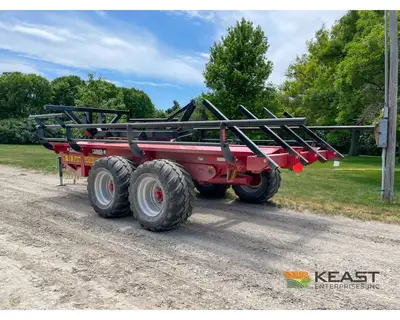

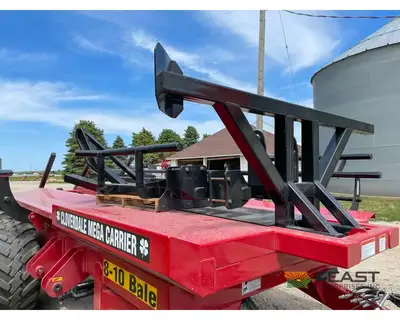

This Cloverdale 8/10 Mega Bale Carrier combines a stainless-steel deck with a self-loading arm for gathering and hauling round bales. The arm adjusts for 4- or 5-foot-wide bales, while adjustable side rails accommodate the load on the deck.

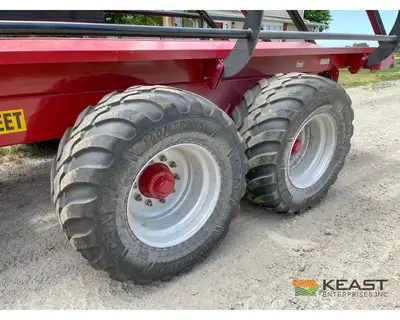

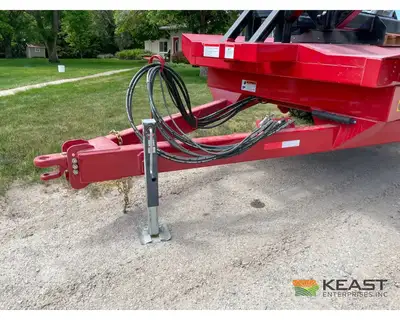

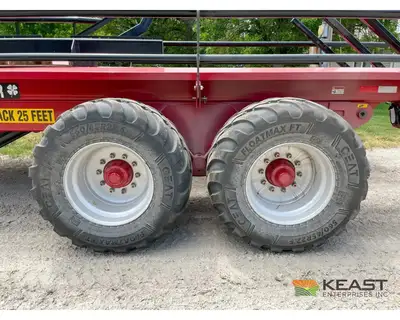

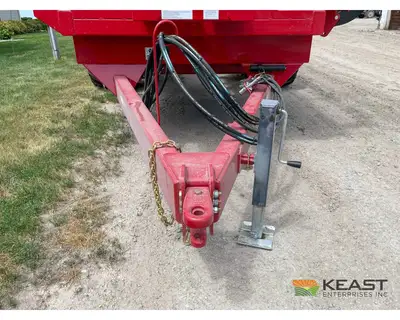

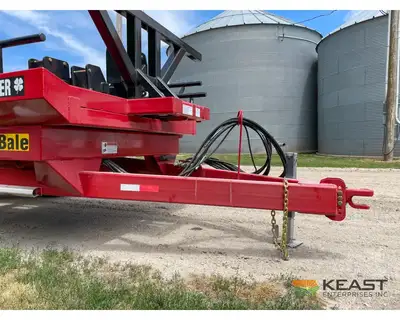

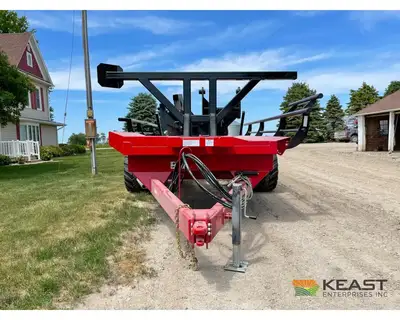

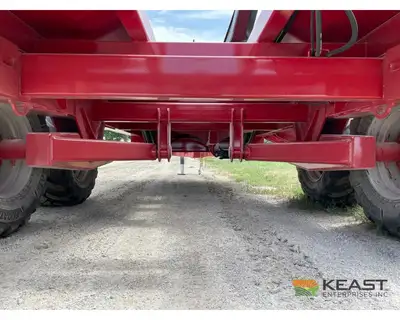

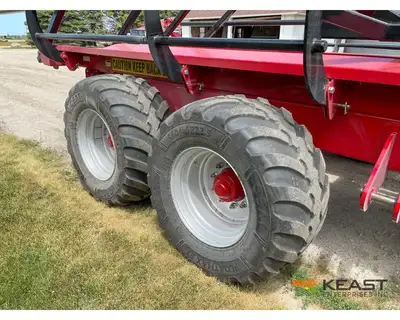

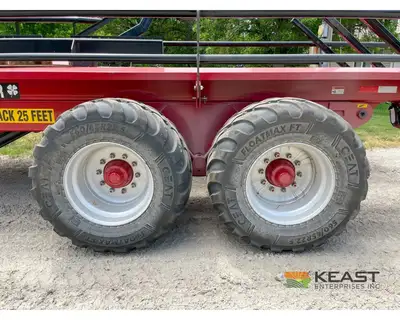

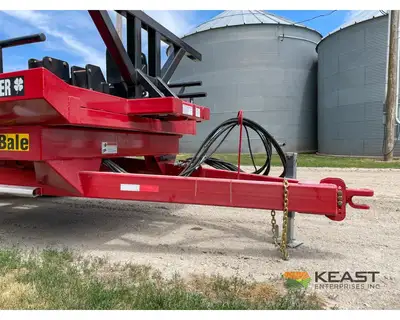

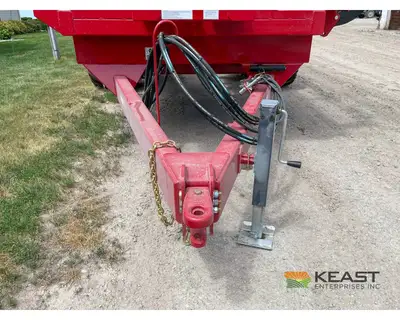

The walking tandem runs on four flotation tires, and a clevis hitch connects the carrier to the tractor. The stainless deck distinguishes this package from the graphite-coated steel version.
Specifications
Use actual bale weights as well as bale count when planning the load; the maximum loaded weight includes the chassis. Check clearance for the raised loading arm and allow enough turning room for the carrier's working width and overall length.

Specs

Bale Capacity: 8-10 round bales
Max Bale Diameter: Up to 6'6"
Hitch: Clevis
Empty Weight: ~11,000 lb
Max Weight Capacity: 39,000 lb (including chassis)
Overall Length: 32'
Working Width: 12'
Deck Height: 48"
Loading Arm Height: 13'3"

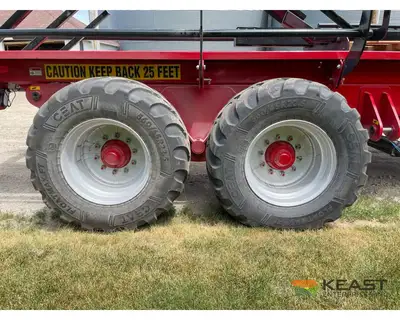

Tires: (4) 520/50 R17 flotation tires
Deck: Stainless steel
