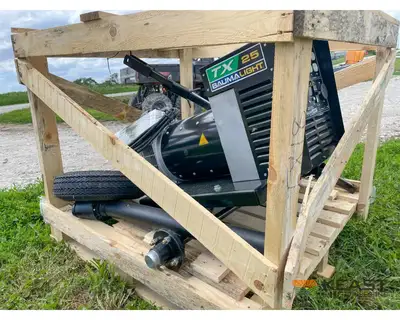

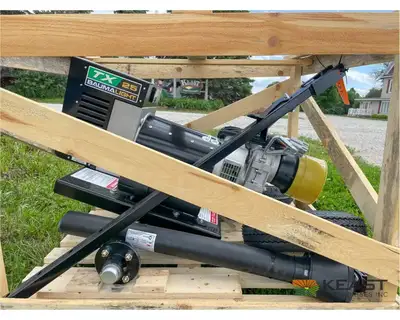

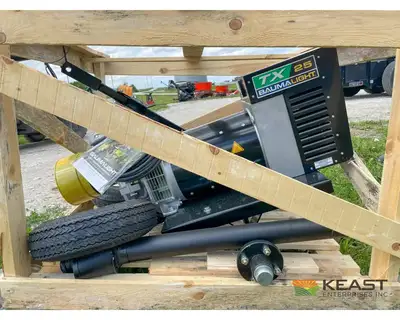

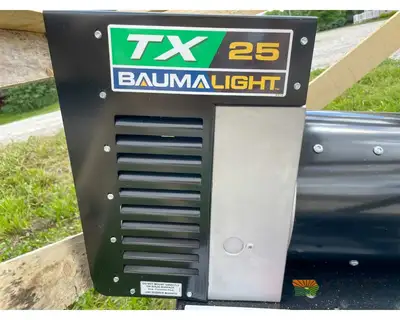

Baumalight TX25 PTO Generator, 25 kW Output

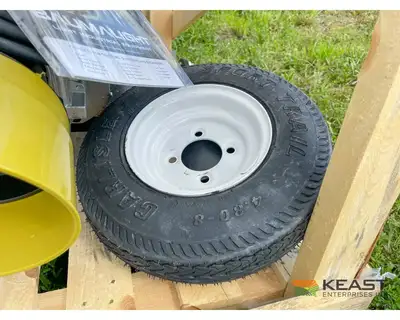

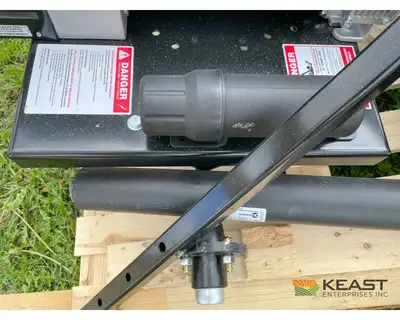

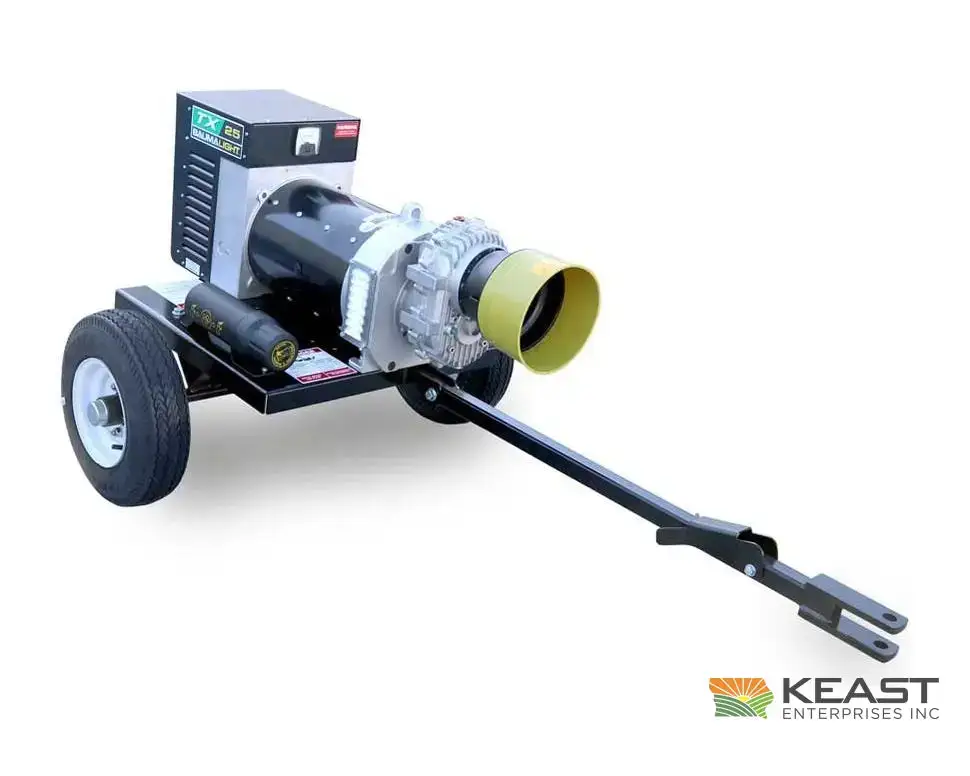

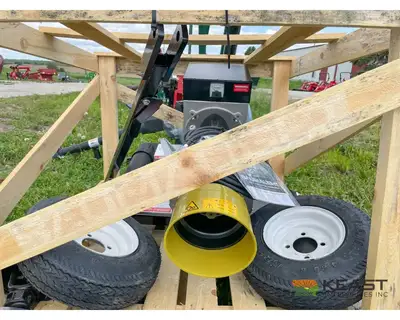

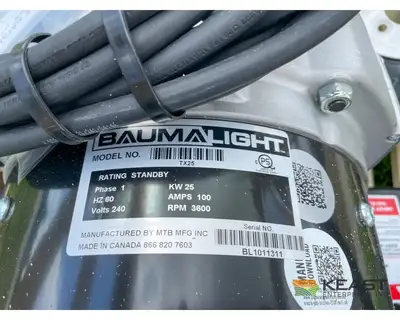

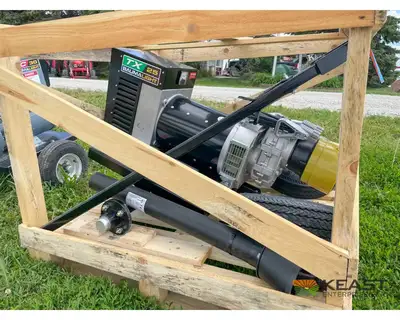

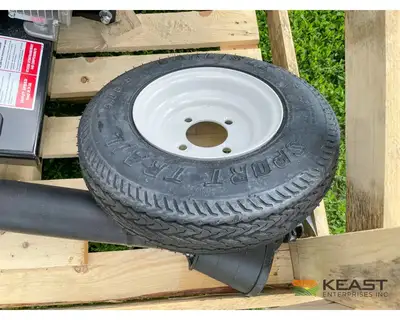

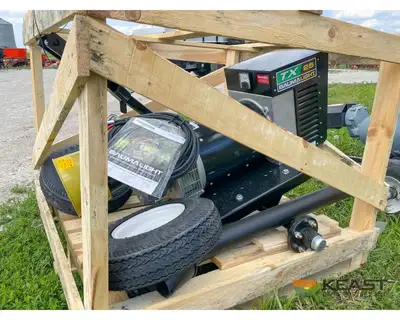

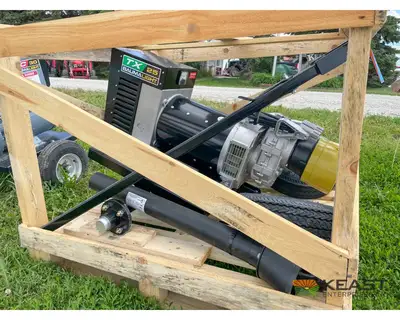

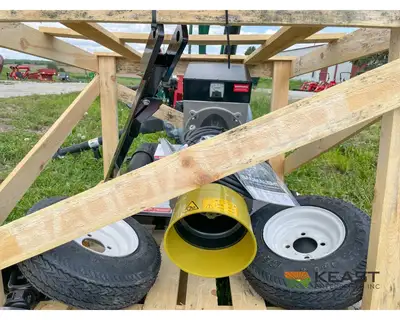

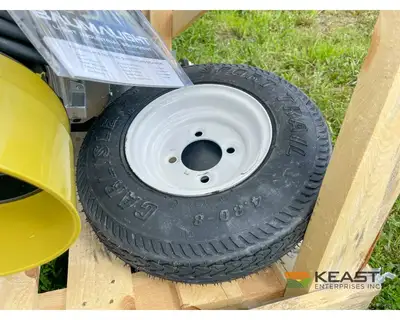

The Baumalight TX25 is a single-phase PTO generator rated at 25 kW continuous and 50 kW surge. Baumalight lists a 42 HP tractor requirement at full output with a 540 RPM PTO. The brushless, capacitor-regulated alternator supplies 120/240 V power with ±6% voltage regulation. A PTO shaft is included, and pneumatic-tire trailer or Category I three-point deck mounts are available. Applications include farm backup power, remote work, and welder support.
Key Features
25 kW Continuous / 50 kW Surge Capacity: Provides continuous output for steady loads and surge capacity for motor starting
Brushless Alternator with Voltage Regulation: Quiet, low-maintenance power generation

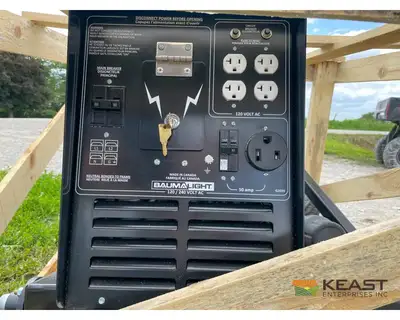

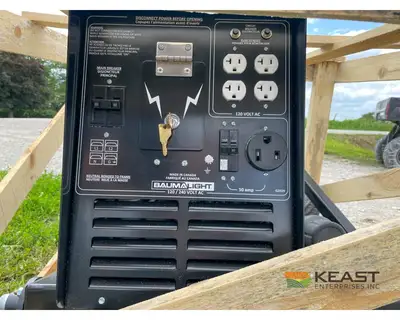

Multiple Receptacles: Two 120 V/20 A duplex outlets and a 240 V/50 A welder receptacle

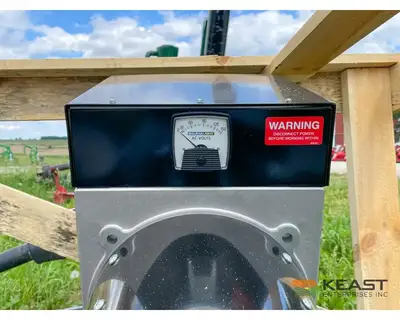

Integrated Monitoring & Protection: Onboard voltage/amperage display and resettable breakers
Stable Power Delivery: Capacitor regulation controls voltage as the electrical load changes
Technical Specifications
Performance
At half load, the TX25 requires about 19 HP; at full capacity, it requires about 42 HP. Its self-regulating design supplies power for tools, welders, or backup loads.
How much tractor power does the TX25 require?
The TX25 requires 42 HP at full output from a 540 RPM PTO. A larger tractor can be used when the PTO speed and driveline setup are correct.
Is the TX25 single-phase?
Yes. The TX25 supplies single-phase 120/240-volt power. Load planning and transfer equipment should be reviewed with a qualified electrician.
