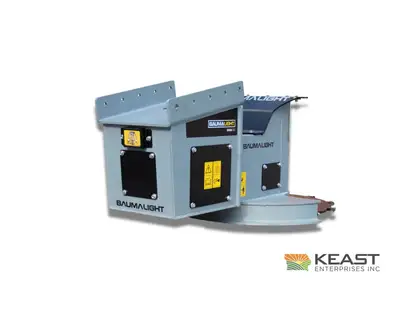

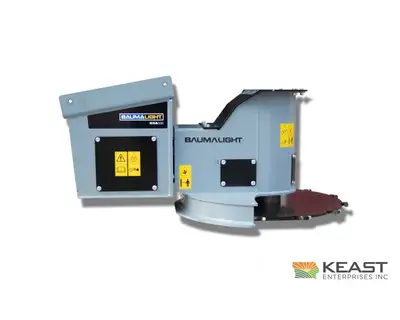

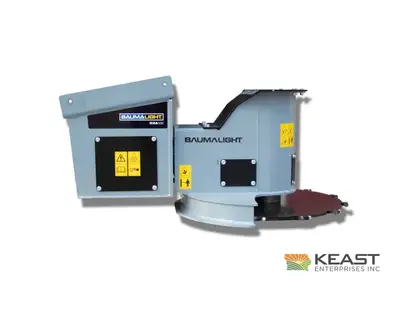

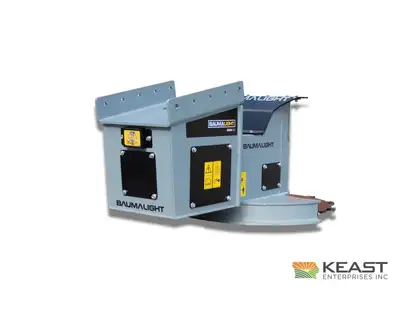

Baumalight DXA530 Rotating Excavator Tree Saw, 30-Inch Blade, 10-45 GPM, 10-Inch Cut
Overview

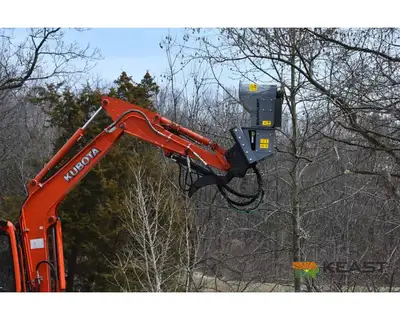

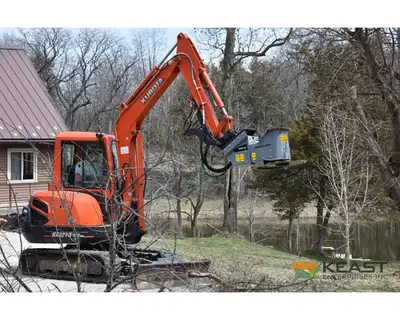

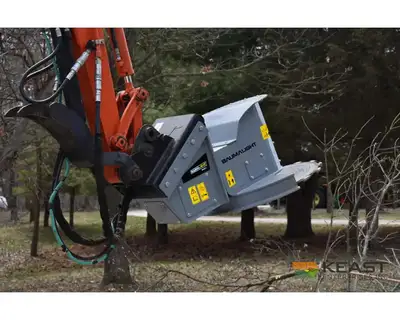

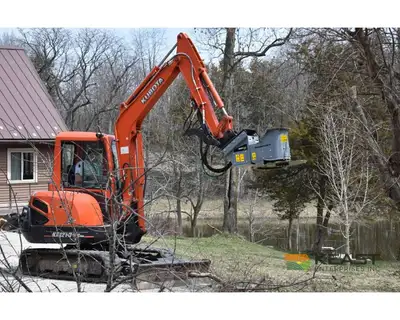

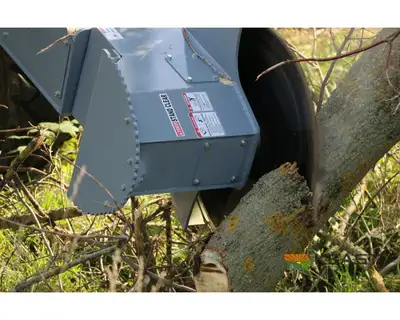

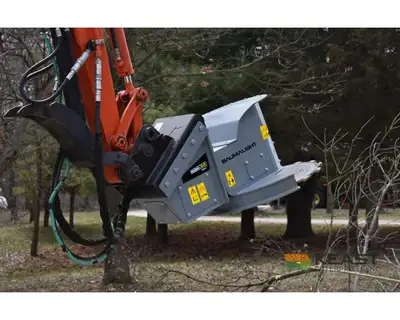

The Baumalight DXA530 is an excavator tree saw with hydraulic head rotation for trimming, limbing and fence-line work. A helical actuator moves the head through 180 degrees, allowing horizontal cuts, vertical trimming and changes of angle from the cab.

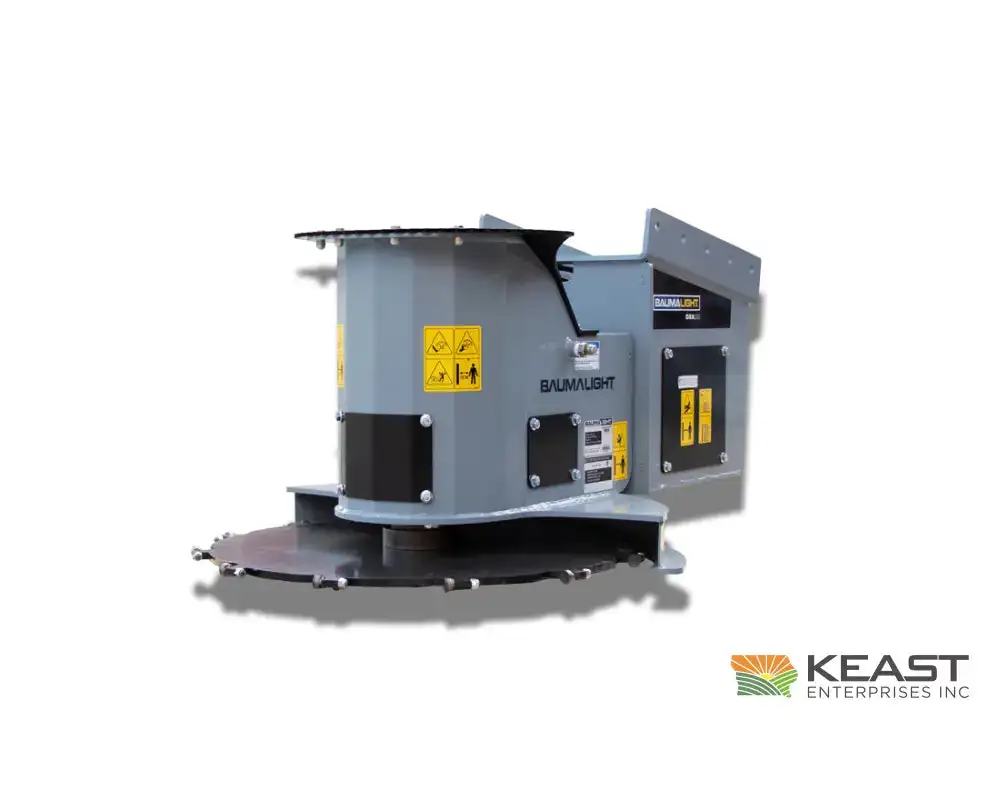

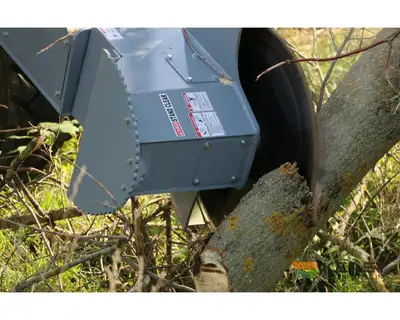

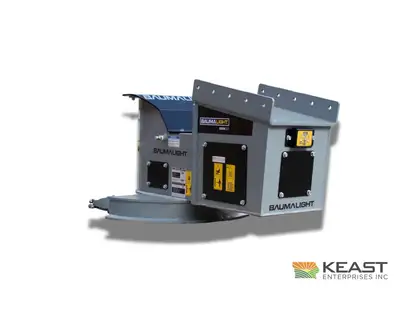

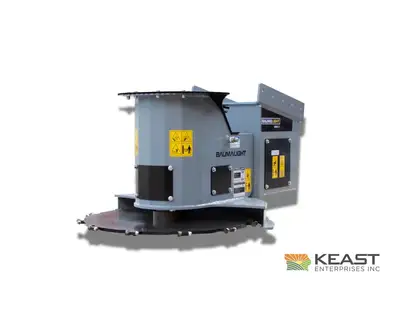

The blade runs on a bent-axis piston motor with a separate bearing support. Its H3000 carbide teeth are replaceable and can be rotated to a fresh edge. A bolt-on adaptor matches the saw to the excavator’s mounting arrangement.
Specifications
Send the excavator model, coupler dimensions, pin size and spacing, stick width and hose length needed at the attachment. The electrical connection operates the hydraulic rotation control. Confirm the adaptor and control equipment on the quote, then check their combined weight with the saw against the excavator’s lift chart.
Specs
Manufacturer carrier range: 4–12 ton excavators
Blade: 30 in. AR400; 12 H3000 carbide teeth
Maximum cut: 10 in.
Head rotation: 180 degrees; hydraulic helical actuator
Hydraulic flow: 10–45 GPM
Maximum hydraulic pressure: 5,000 PSI
Motor: T530, 47 cc bent-axis piston
Case drain: Required
Electrical control: Two on/off pins and ground
Hoses / couplers: Not supplied
Published unit shipping weight: 650 lb.
