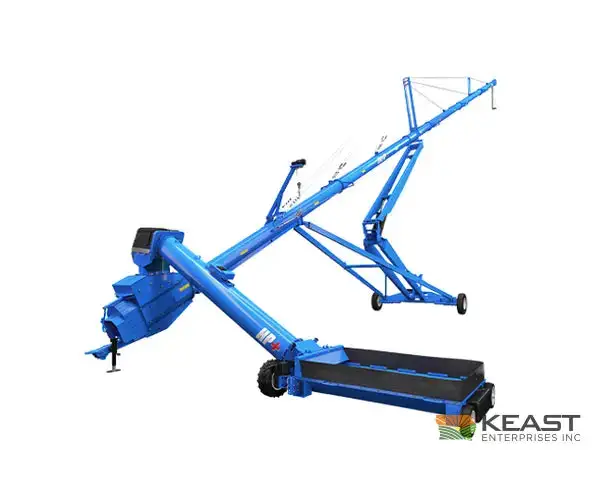

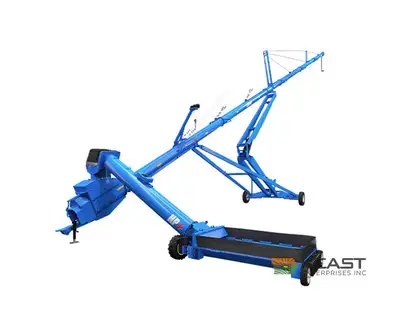

Brandt 13110HP Auger, 13" x 110', Electric Swingaway, Scissor Lift

The Brandt 13110HP Swing Away Auger is a high-capacity, 13″ × 110′ grain auger.
Its configuration includes a self-leveling, electric swing-away hopper, electric winch, dual 6" horizontal feed augers, scissor-lift undercarriage, 1000 PTO, and extended life auger flighting with an up to 13,000 BPH capacity.
Key Features
Self-Leveling Swing-Away Hopper
The self-leveling hopper maintains its position as unload height and ground conditions change; a chain coupler connects the hopper drive.
Scissor-Lift Hydraulic Undercarriage
The cable-supported scissor lift raises the discharge while keeping the auger folded height lower for transport.
Multi-Flighting Hopper
The twin 6" horizontal feed augers move grain through the hopper during loading and unloading.
Mechanical PTO Drive
The mechanical PTO driveline transfers power directly to the auger.
Technical Specifications
What is the rated capacity of the 13110HP?
Brandt rates the 13110HP at up to 13,000 BPH. Actual output varies with grain, moisture, auger angle, PTO speed, and loading conditions.
What tractor is required for the 13110HP?
The 13110HP is listed for 235 HP with PTO, reverse option available. Confirm that the tractor also has the hydraulic outlets required for the lift and swing-away hopper.
