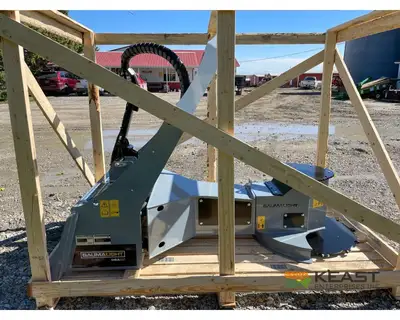

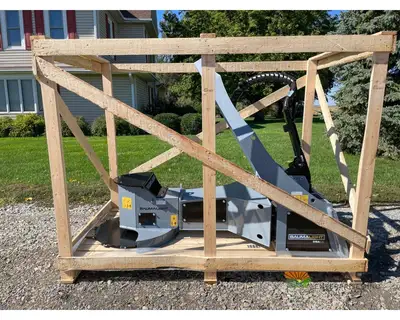

Baumalight DSA530 Tree Saw, Skid Steer Mount, 30″ Blade, 180° Hydraulic Rotation

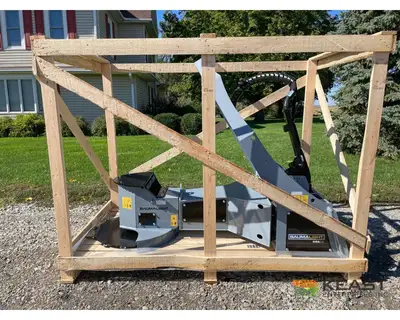

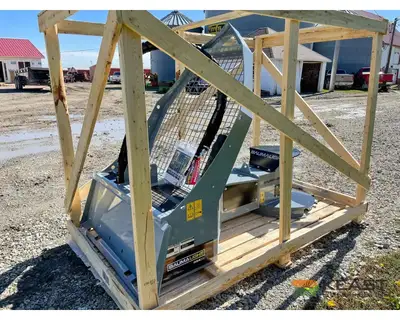

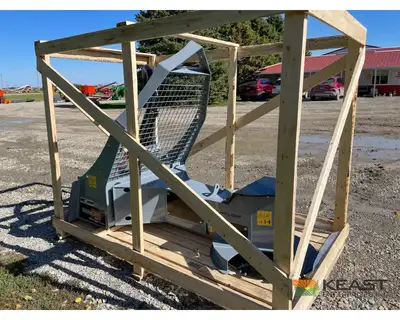

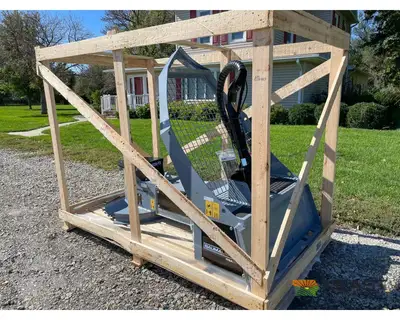

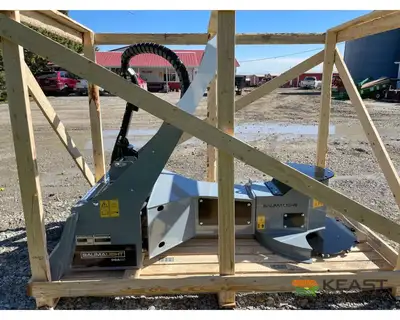

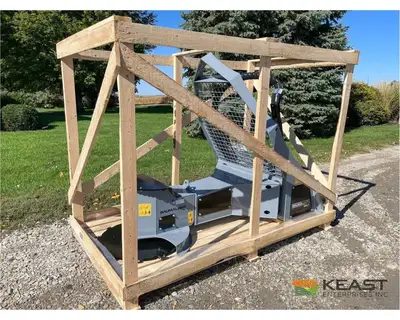

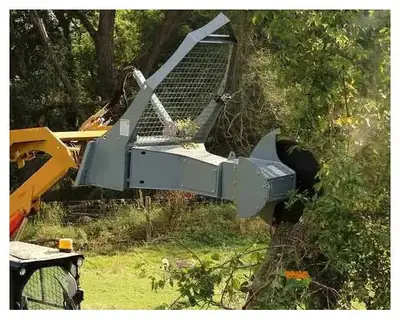

The Baumalight DSA530 is a hydraulically driven skid steer tree saw with a 30-inch AR400 blade, 12 H3000 carbide teeth, and a maximum cut of 10 inches. A helical actuator rotates the cutting head through 180 degrees from the cab, allowing horizontal cuts as well as vertical trimming and limbing.

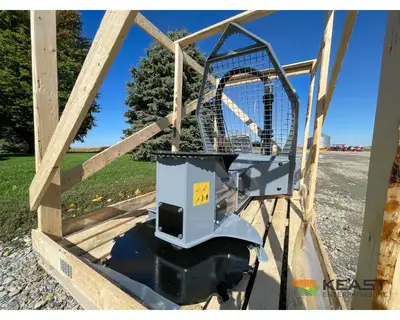

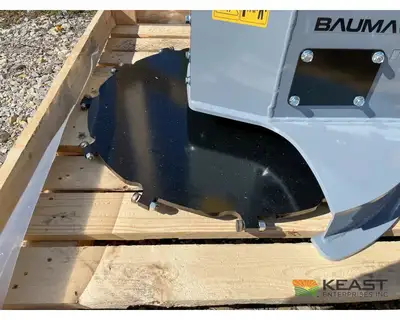

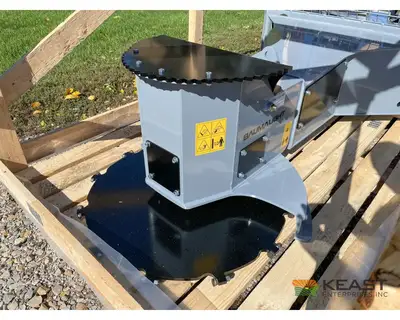

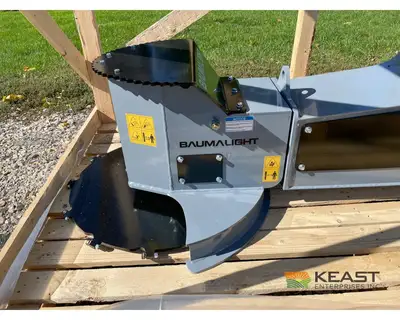

DSA530 Cutting Head

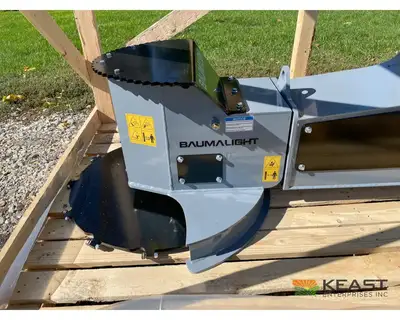

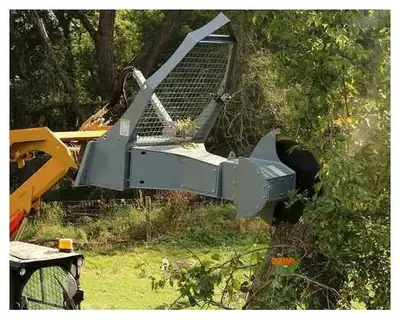

The blade runs on a bent-axis piston motor and overhung bearing support. A blade shield directs chips, while internal hose routing protects the hydraulic lines. The universal skid steer mount positions the saw for fence-line clearing, pasture cleanup, trimming, and limbing.
Baumalight DSA530 Specifications
Skid Steer Requirements
Confirm 10-30 GPM auxiliary flow, pressure up to 4,000 PSI, a case-drain connection, universal quick-attach compatibility, and the carrier's electrical connection for the helical actuator. Hydraulic hoses are supplied; couplers are not supplied.
How does the DSA530 head rotate?
A helical actuator rotates the cutting head through 180 degrees from the cab.
Does the DSA530 require a case drain?
Yes. A correctly connected case drain is required for the bent-axis piston motor.
Are hydraulic couplers included?
Hydraulic hoses are supplied, but couplers are not.
