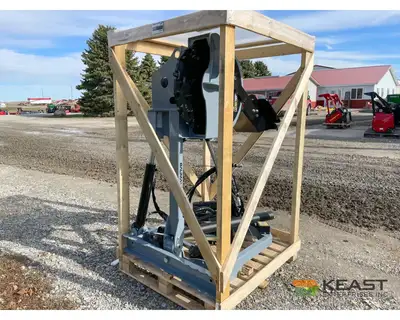

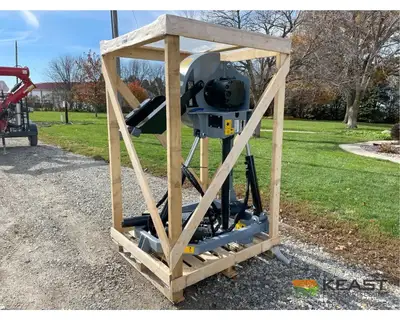

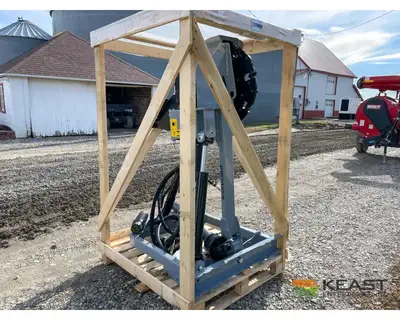

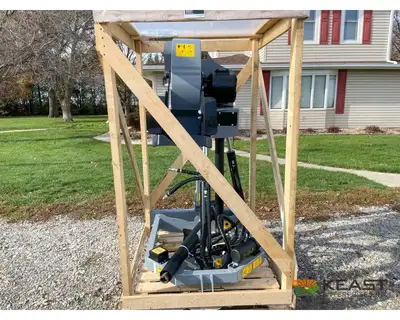

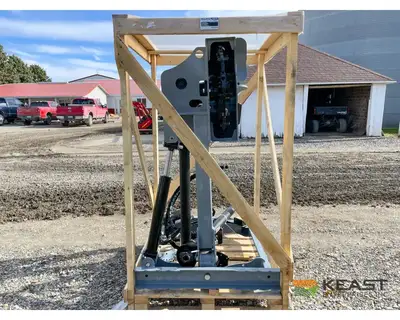

Baumalight 3P24 3 Point Stump Grinder, 24″ Rotor, 34 Carbide Teeth

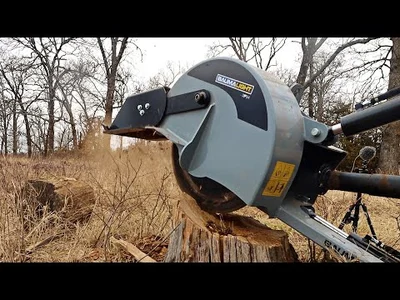

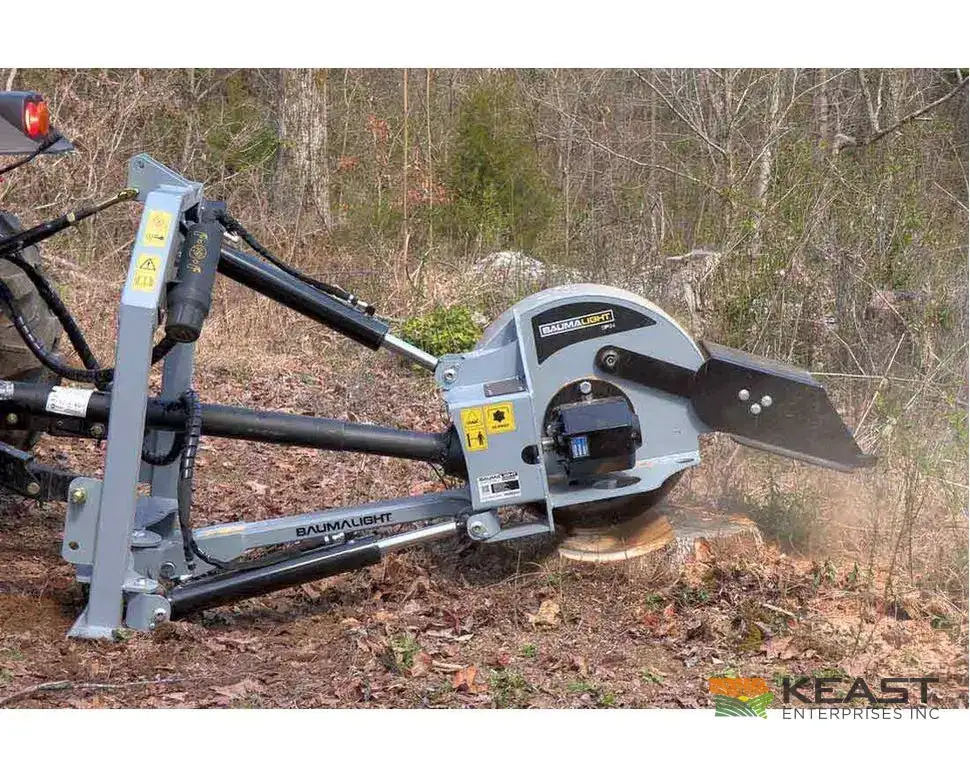

The Baumalight 3P24 is a PTO-driven 3-point stump grinder with a 24-inch rotor and 34 replaceable S1000 carbide teeth. It requires a tractor in the 25-55 HP range and uses a slip clutch to protect the driveline when the rotor encounters a heavy load.
3P24 Cutting System

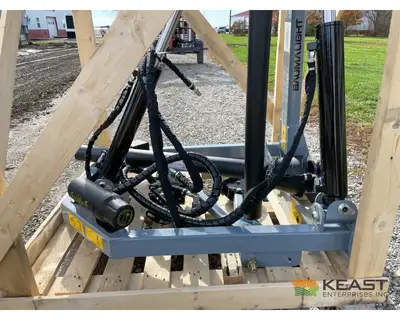

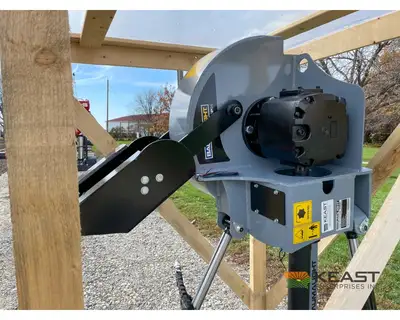

Hydraulic swing and lift cylinders provide a 65-degree sweep without repositioning the tractor. The grinder can operate with one or two hydraulic remotes, depending on the valve arrangement. The rotor reaches 18 inches above ground and 8 inches below grade, with a maximum horizontal cut of 22 inches. Teeth extend beyond the rotor to improve chip clearance and reduce heat buildup around the cutting wheel.
Baumalight 3P24 Specifications
Tractor Requirements
Confirm the tractor's engine horsepower, PTO horsepower, 540 RPM PTO, hitch category, transmission, rear lift capacity, and hydraulic remotes where applicable. Tractor weight and ballast also need to support the grinder during transport and operation.
How many hydraulic remotes does the 3P24 need?
Baumalight lists one or two remotes, depending on the valve arrangement used for the swing and lift cylinders.
How wide is the grinding sweep?
The hydraulic swing provides a 65-degree arc, reducing how often the tractor must be repositioned.
What hitch does the 3P24 use?
The 3P24 can mount to a Category I or Category II 3-point hitch and is not listed as quick-hitch compatible.
