NEW OLIVER 4705

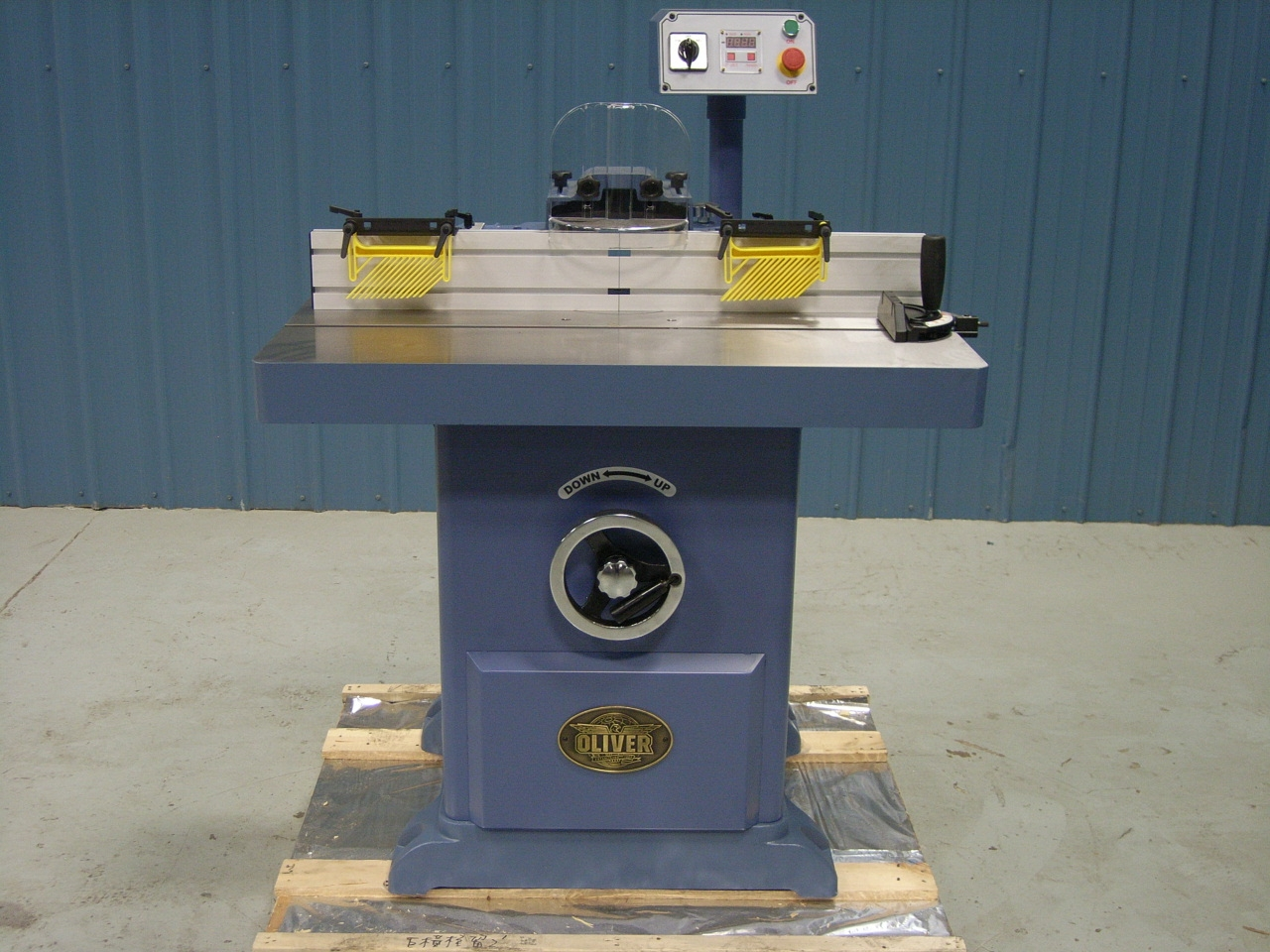

Oliver Model 4705 Shaper
Stock No. 4705.001 (5Hp 1Ph)
Stock No. 4705.002 (7.5Hp 3Ph)
Main Motor: 7.5HP 230v-3ph, or 5 HP 220v-1ph
Table Dimensions: 39" x 29-1/2"
Spindle Rotation: Reversible
Spindle Speeds: 5,000 RPM, 7,000 RPM, 10,000 RPM
Max. Tool Diameter: 7" Below Table, 8" Above
Spindle Diameter: 1-1/4" & 3/4" Interchangeable.
Verticle Spindle Travel: 4"
Spindle Direction: Reversible
Table Height: 36-1/2"
T-Slot: 3/4" x 3/8"
Dust Port Diameter: 4"
Minimum CFM: 800
Footprint: 28-1/2"L x 24-3/4"W
Table Dimensions: 39"L x 31-1/2"W
Motor 1Ph: 5HP, 220V only (18 Amp)
