USED HARDINGE BROTHERS HLV-H

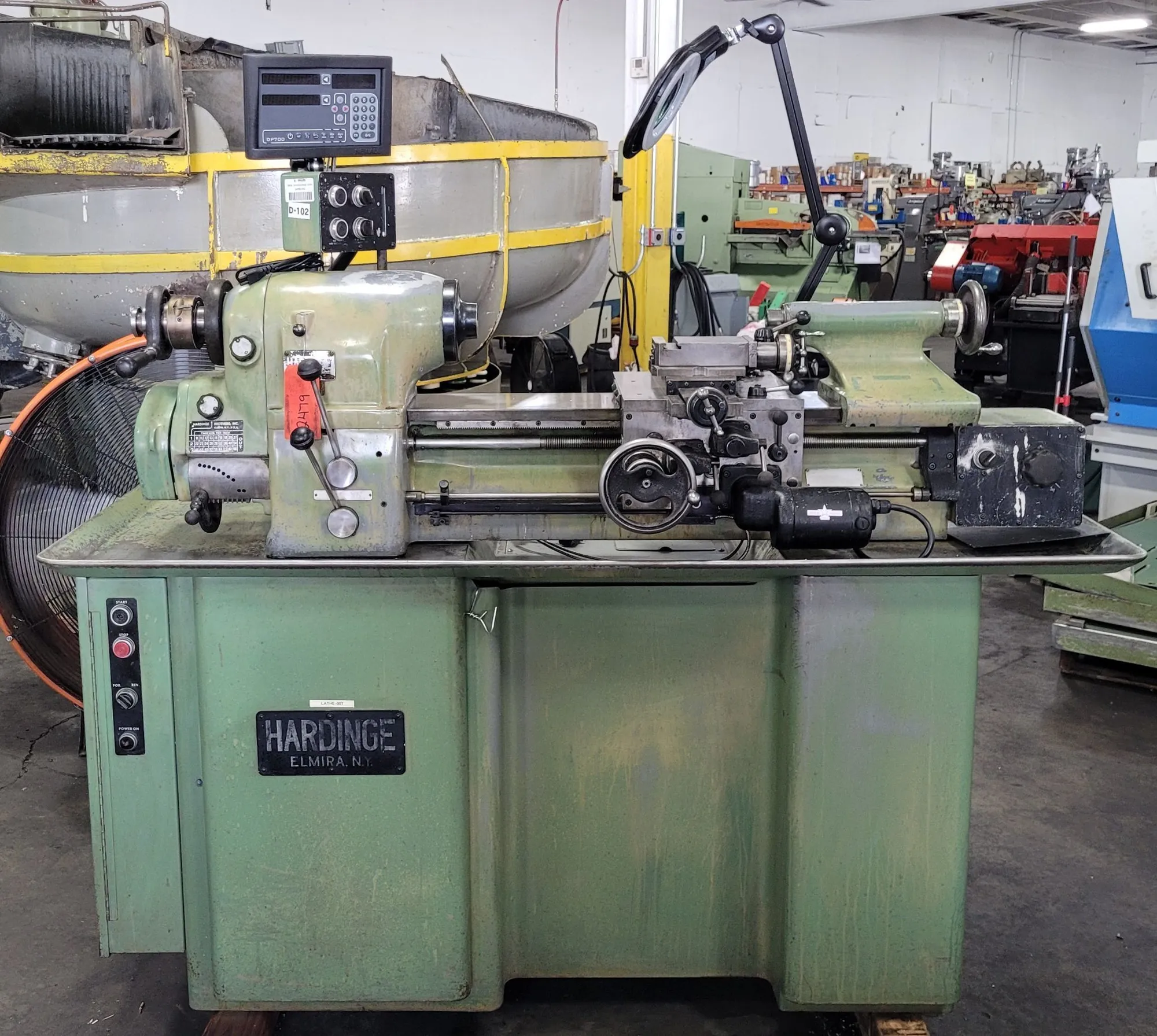

Hardinge HLV-H Wide Bed Tool Room Lathe
2 Axis Newall DP700 DRO
5C Collet Closer
Quick Change Toolpost
SPEC SHEET
Max Swing Over Bed: 11″
Max Swing Over Carriage: 9″
Max Swing Over Cross Slide: 5.75″
Compound Slide Travel: 3″
DISTANCE BETWEEN CENTERS
– Tailstock Flush: 18″
– Tailstock Overhung: 20″
Power Feed Range: 0.25 IPM – 7 PM
Longitudinal Feed Rate: 0.31 IPM – 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75″
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25″
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 – 3000 RPM
Spindle Nose: Hardinge Tapered
Power 208 Volts / 60 Hertz / 3 Phase ,
Approximate Size 72 x 32 x 72 inches,
Approximate weight 2,500–2,700 lb.
