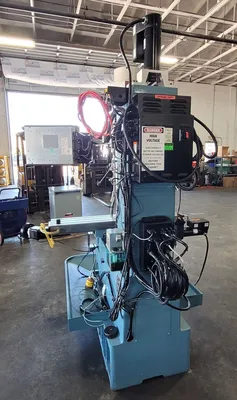

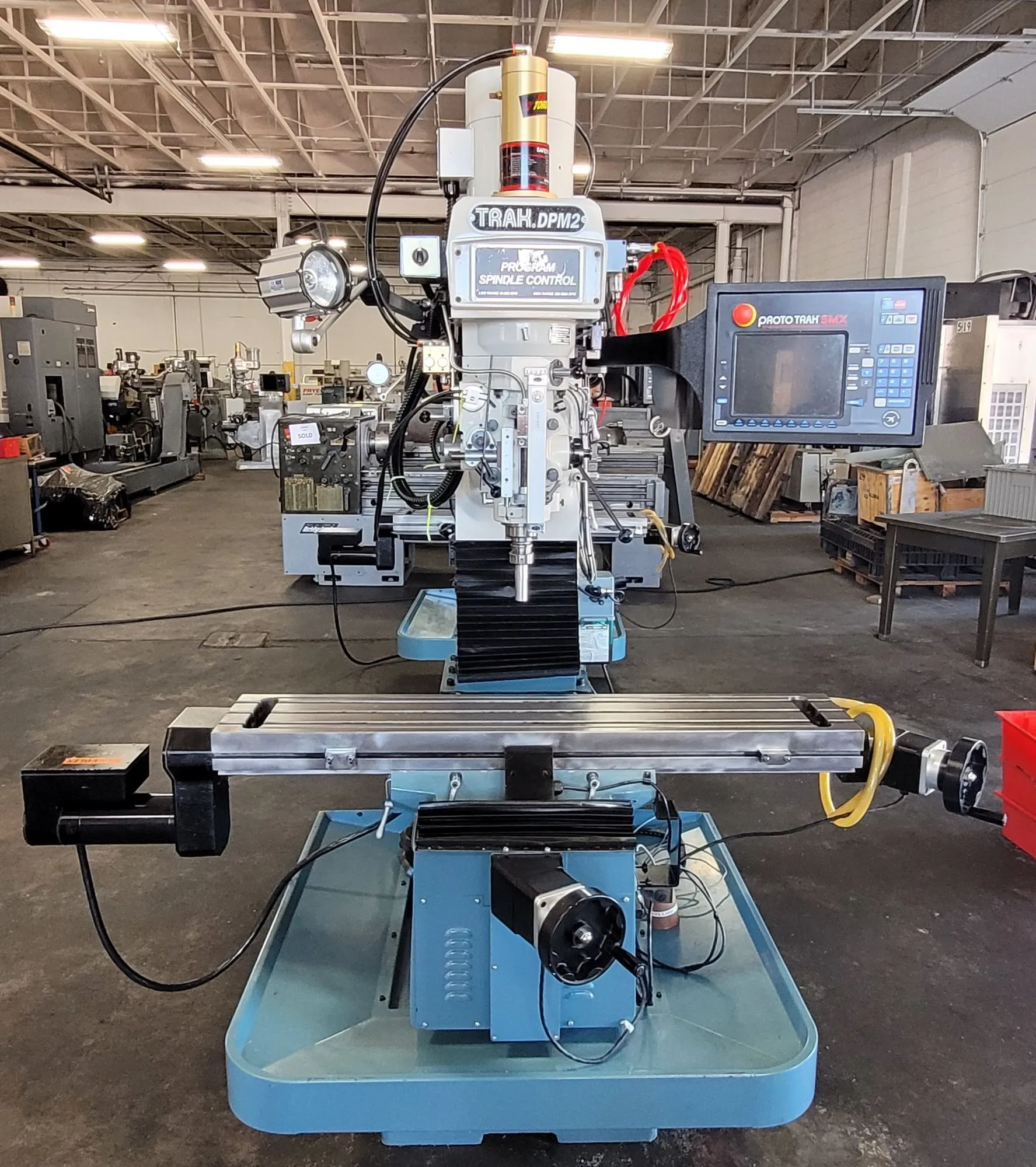

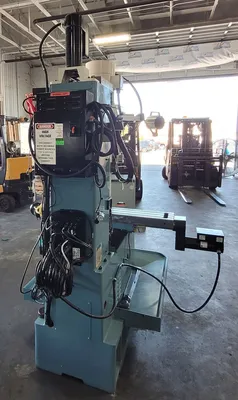

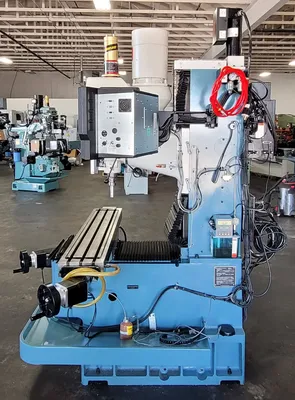

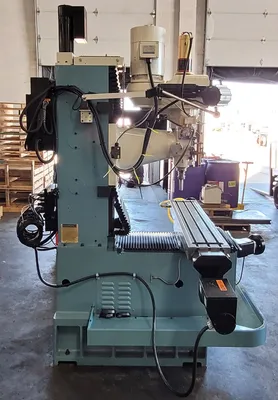

USED 2016 SOUTHWESTERN INDUSTRIES DPM SX2P

TRAK DPM SX2P Bed Mill is a 3-axis CNC bed mill featuring a 9" x 49" table,
31" X-axis travel, 16" Y-axis travel, 27" Z-axis travel,
a programmable 40–5,000 RPM spindle, and the ProtoTRAK SMX CNC control system.

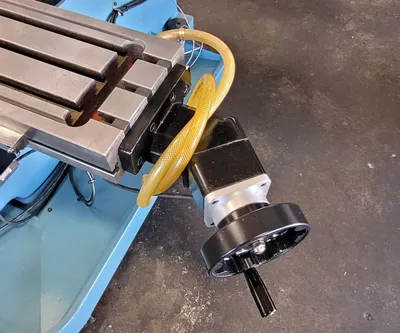

Table and Capacity
Table Size: 49" x 9"Table
Load Capacity: 1,320 lbs
T-Slots: 3 slots (0.63" wide on 2.5" pitch)
Table Height from Bed: 37"Travels
X-Axis Travel: 31" (32" max)
Y-Axis Travel: 16"Z-Axis Travel: 27"
Quill Travel: 5"
Rapid Traverse Rate: 150 IPM (all axes)

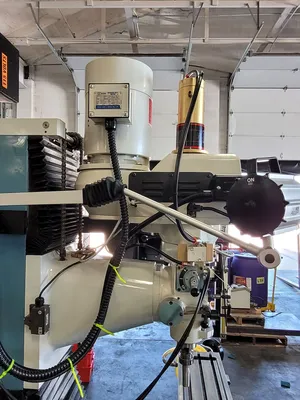

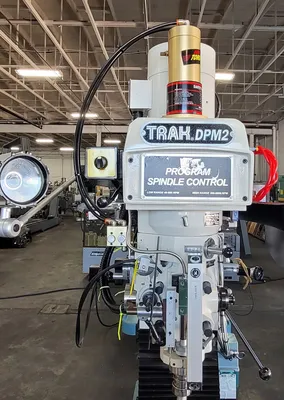

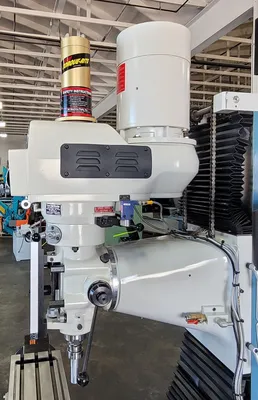

Spindle
Spindle Taper: NST #30
Quill Diameter: 3 3/8"
Spindle Speed Range: 40 – 5,000 RPM (programmable electronic variable, low/high ranges)

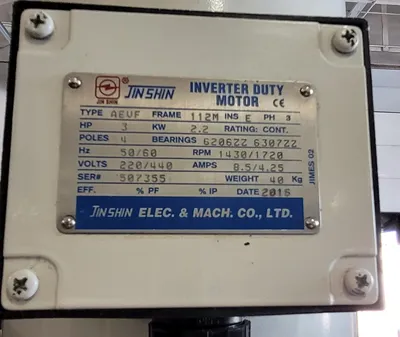

Spindle Motor Power: 3 HP
Spindle Center to Column Face: 18"

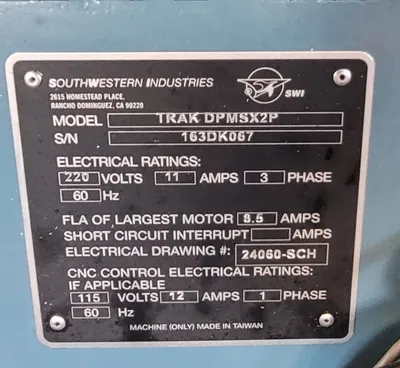

Control and Electrical

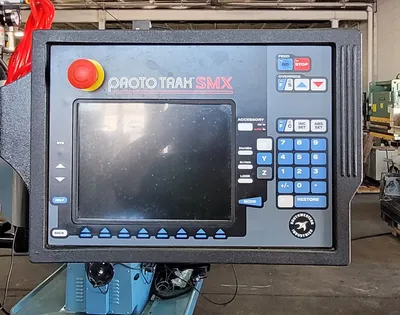

Control System: ProtoTRAK SMX 3-Axis CNC
Control Power Requirements: 110V, 1-Phase, 10A
Machine Power Requirements: 220V, 3-Phase, 11A / 60 Hz
Size and Weight
Approximate Dimensions: 72" x 64" x 98"
Machine Weight: 4,000 lbs
