USED 2019 HURCO VM30I

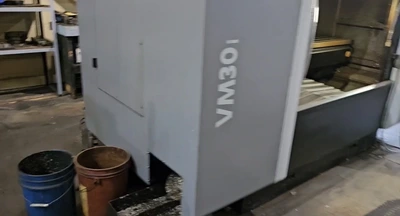

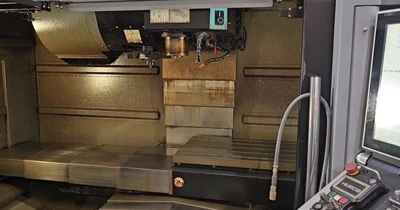

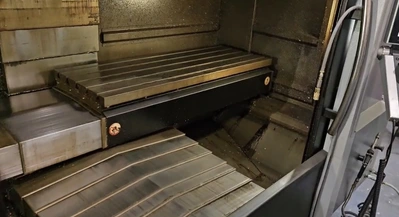

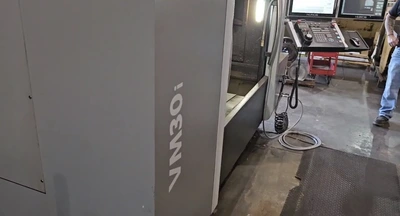

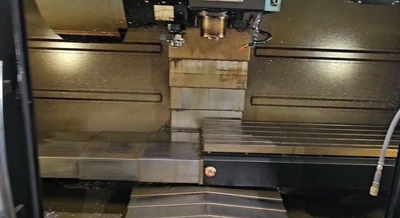

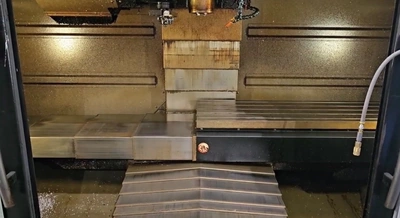

Hurco VM30I Vertical Machining Center (2019)

Travel and Capacity

X-Axis Travel: 50 inches (1,270 mm)
Y-Axis Travel: 20 inches (508 mm)
Z-Axis Travel: 20 inches (508 mm)
Table Size: 52 x 20 inches (1,321 x 508 mm)
Max Table Weight: 3,970 lbs (1,800 kg)
Spindle Specifications
Max Speed: 12,000 RPM
Spindle Power (Peak): 20 HP (15 kW)
Spindle Torque: 75 ft-lbs (102 Nm) at 1,450 RPM
Spindle Taper: CAT 40 (or BT 40 compatible)
Tool Changer
Tool Capacity: 24 stations
Tool Type: 40 Taper
Max Tool Diameter: 3.15 inches (80 mm)
Max Tool Length: 9.8 inches (250 mm)
Max Tool Weight: 15.4 lbs (7 kg)
Feedrates and Dimensions
Rapid Traverse (X/Y/Z): 1,102 in/min (28 m/min)
Machine Weight: Approx. 9,339 lbs (4,250–4,320 kg)
Control System: Hurco WinMax CNC Dual Folding Screen
