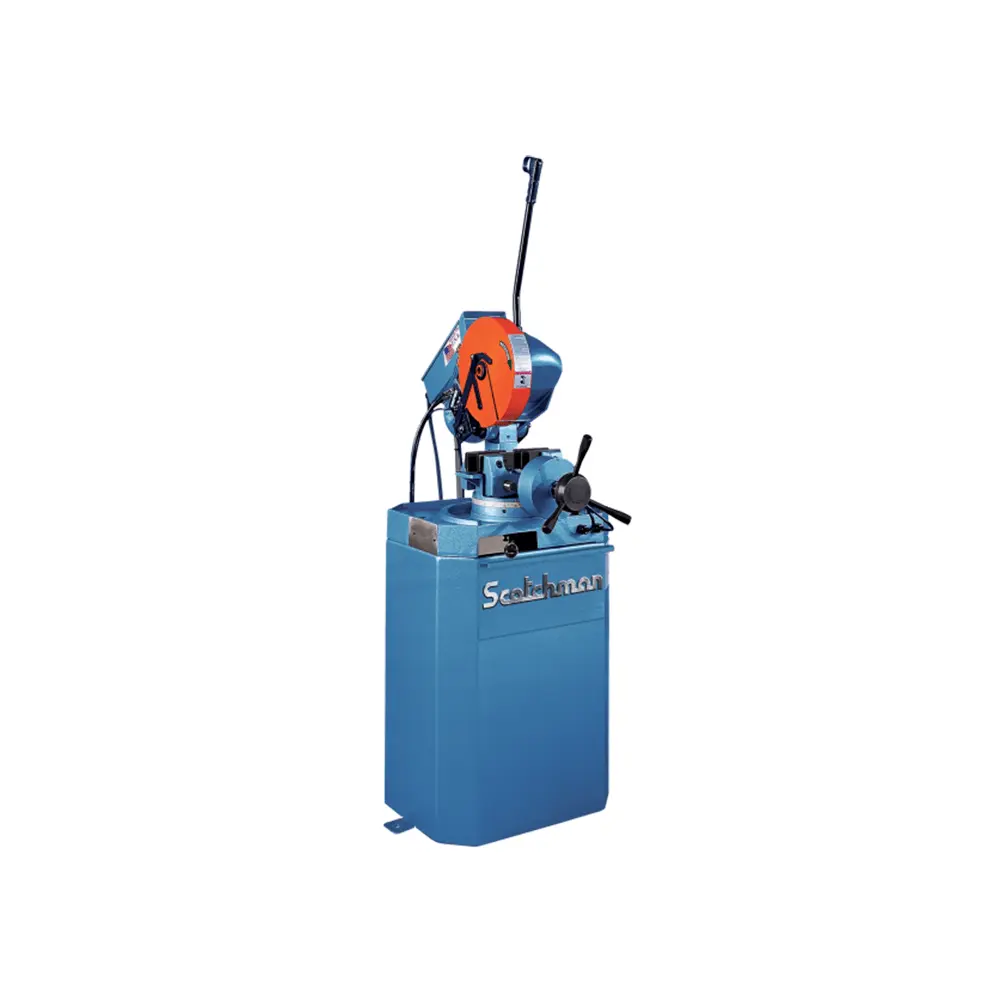

NEW SCOTCHMAN SCOTCHMAN AIR OPERATED COLD SAW – CPO 350 PK

LT (Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe: LT (Low Turn)
22 rpm / 44 rpm
HT (High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material: HT (High Turn)
44 rpm / 88 rpm
VS (Variable Speed) ~ wired 230/460, 3-ph: VS (Variable Speed)
11 / 177 rpm
VS (Variable Speed) ~ wired 220, 1-ph: VS (Variable Speed)
11 / 177 rpm
SS (Single Speed) designed for 220v 1ph applications: SS (Single Speed)
44 rpm
TUBING
Round
Square Rectangle SOLID
Round
Square: 90 Deg.
4-1/2″ (114 mm)
4-1/4″ x 4-1/4″ (108 x 108 mm)
5-1/2″ x 4″ (140 x 102 mm) 90 Deg.
2″ (51 mm)
2″ x 2″ (51 x 51 mm)
Factory Wired: Specify
208V 3PH
230V 3PH
460V 3PH
575V 3PH 60Hz
220V 1PH 60Hz (SS model only)
Maximum Diameter Blade: 14″
Arbor Bore: 1-9/16″
Pin Spacing: 4/12/64
Width: 21-7/8″
Depth: 43-1/2″
Height not including handle: 56-1/4″
Height from floor to vise: 37-7/16″
Shipping Weight: 660 lbs.
