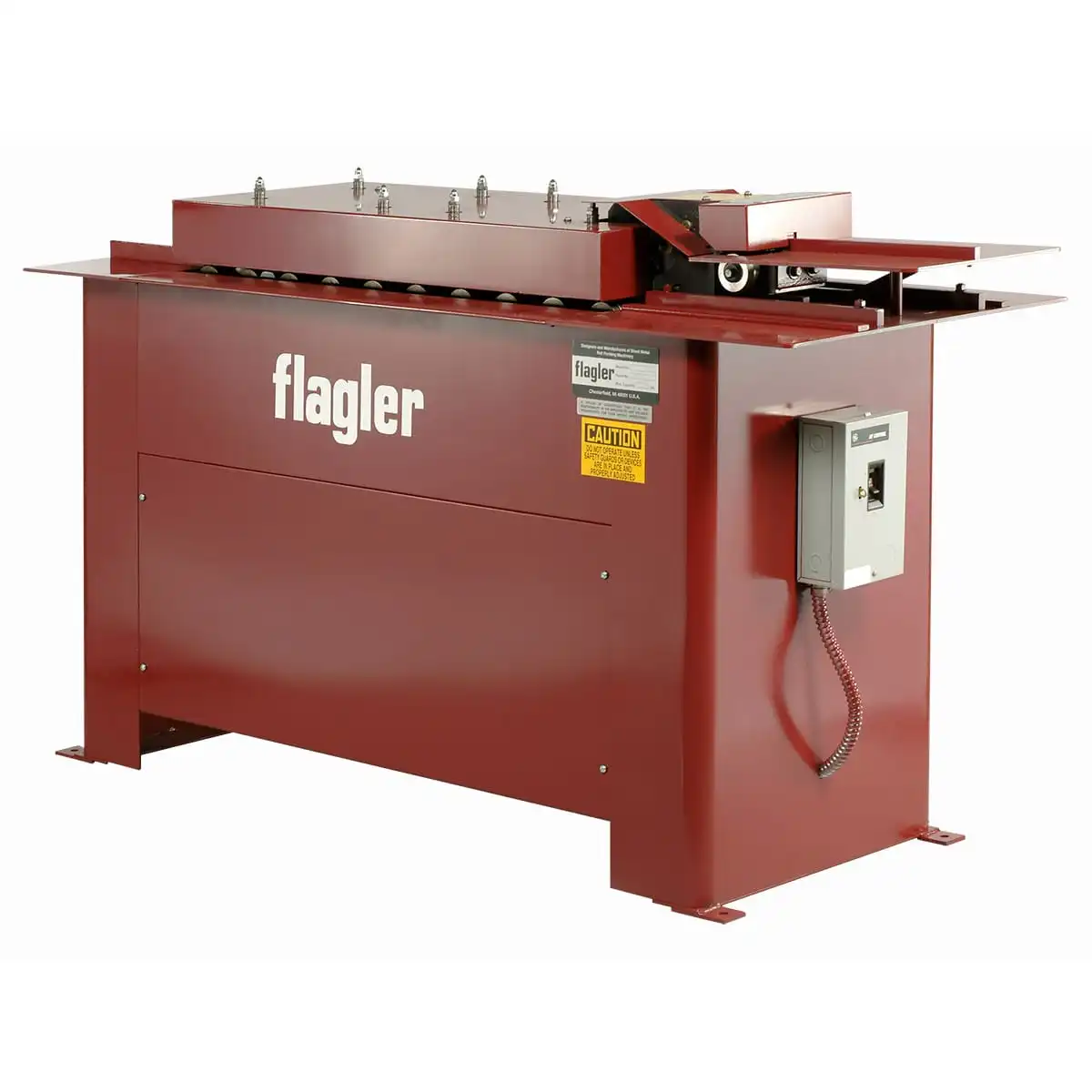

NEW FLAGLER FLAGLER QUADFORMER S AND DRIVE CLEAT ROLLFORMER

10 station rollformer with Flat S and Drive Cleat rolls built inboard and 2 outboard roll set profile available, pulls approx 16 amps, standard 230 Volt 3 Phase Electrics. Single Phase Electrics available as special order
Runs 100 ft per min

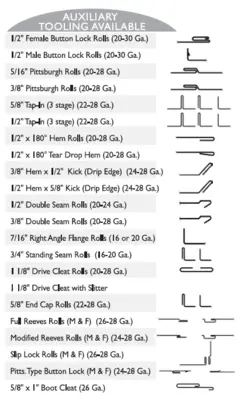

With (10) Forming Stations, the Flagler Quadformer comes standard with “S” and Drive Cleat on the inboard forming positions. Machine has two Outboard Auxiliary Shafts which allow for your choice of Male or Female Button Lock, or Pittsburgh and 3-in-1 Rolls. The optional Quad Cutter attachment allows the shop to use up drop for their S & Drive Cleats while also avoiding having to pre-cut widths of 2.125″ and 3.625″
