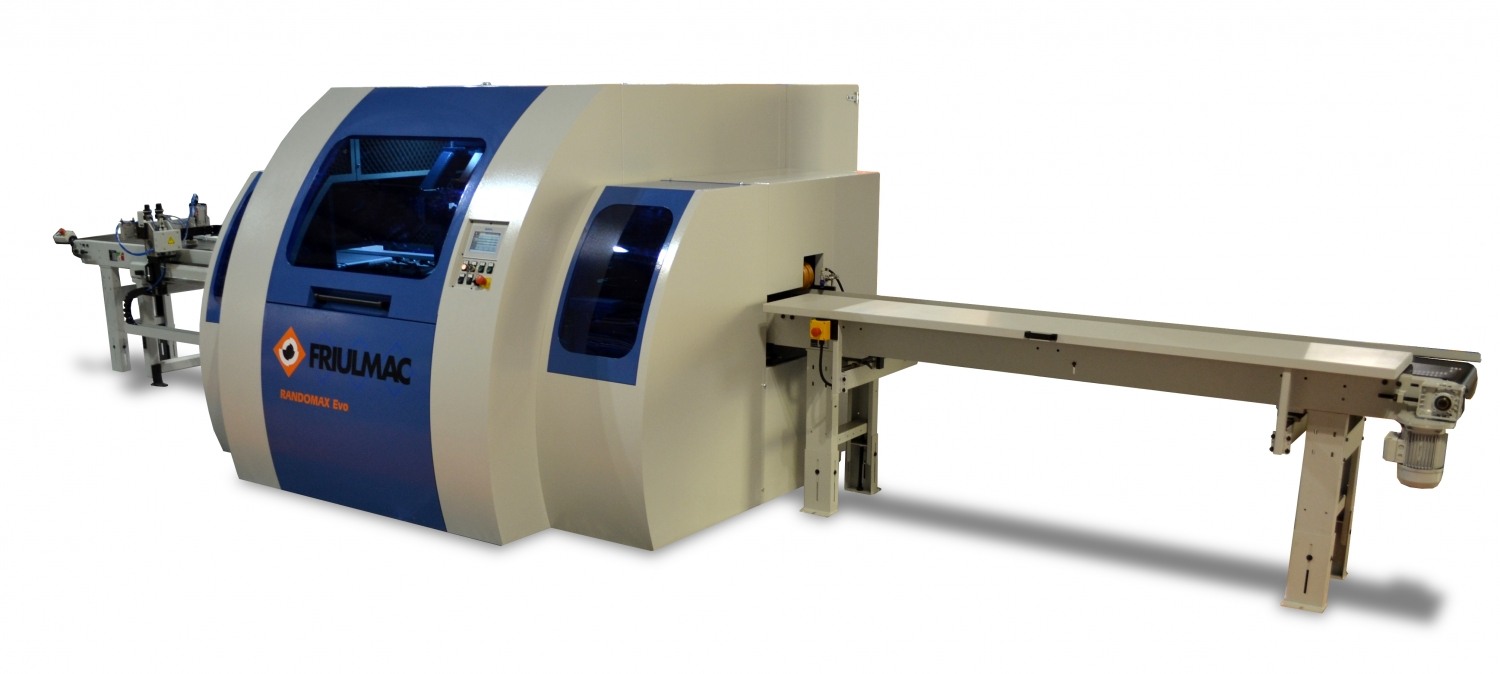

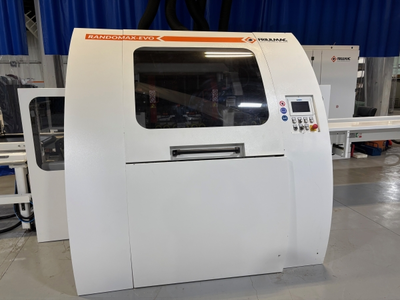

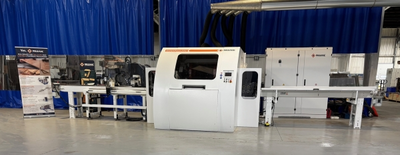

Friulmac Randomax Evo Random Length Defecting End Matcher

Friulmac Randomax Evo Random Length Defecting End Matcher
Automatic End-trimming and Profiling of Random Length Components

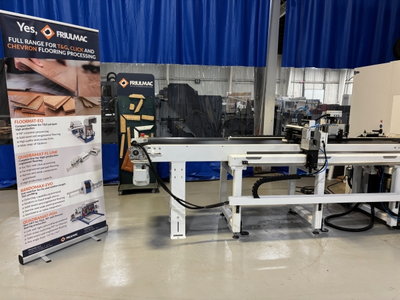

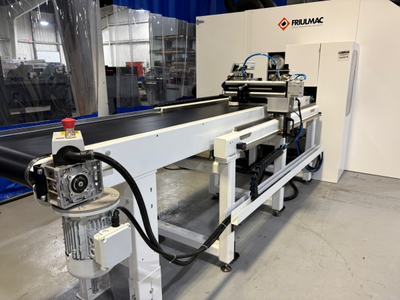

Defects are Marked with Fluorescent Crayon and Work-piece is positioned onto in-feed belt transfer by the operator
Work-Piece is then transferred inside the machine by means of motorized bottom tracks with free rollers top pressure system
A laser photo-eye activates an electronic measuring procedure to determine the work-pieces positioning with reference to the size of the scrap to be removed
The scrap size has to be preset on the control panel
Trimming unit operation by means of pneumatic cylinder
Work-piece referencing & clamping by means of controlled pneumatic pressure sequence

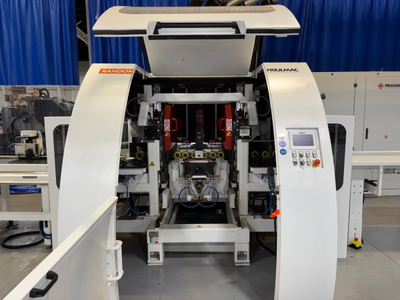

The scoring & profiling units are assembled on a movable base that slides on precision linear guides
by means of pinion (connected with a brushless motor) and rack
The speed (forward, profiling & backward) is adjustable directly from the control board
Bakelite back-up blocks, driven by pneumatic cylinder, grants a great result of the work-pieces end-working
When the end-processing has finished, the work-piece gets released from the clamping and moves to the next step to repeat the above described procedure with reference to the trailing-end
From here on, the machine keeps positioning and processing the leading and trailing ends simultaneously
This machine also comes standard with a fixed length stop allowing for high precision parts to be cut and machined. Fixed length stop usable from 200mm-2500mm this gives you the ability to process Herringbone Flooring in the Flooring industry
Workpiece Length ---- From 200mm (8") upto 3000mm (118")
* Note 118” is the suggested maximum length for the part to be totally supported. Pieces over 3 meters in length may need extra support but can still process without problem.)
Workpiece width ------ From 50mm (2") to 400mm (15.75")
Workpiece Thickness - From 10mm (0.4") to 40mm (1.6")
Trimming units: Two(2) 5.5KW(7.5HP) with 30mm arbor and 550mm tool diameter (supplied)
Scoring units Four(4) 1.2KW(1.5HP) with 20mm arbor and 100mm tool diameter
Profiling Units Two(2) 6KW(8HP) with 30mm diameter x 70mm usable length arbor and 120mm tool diameter
