NEW MEREEN-JOHNSON 99-D-BOX

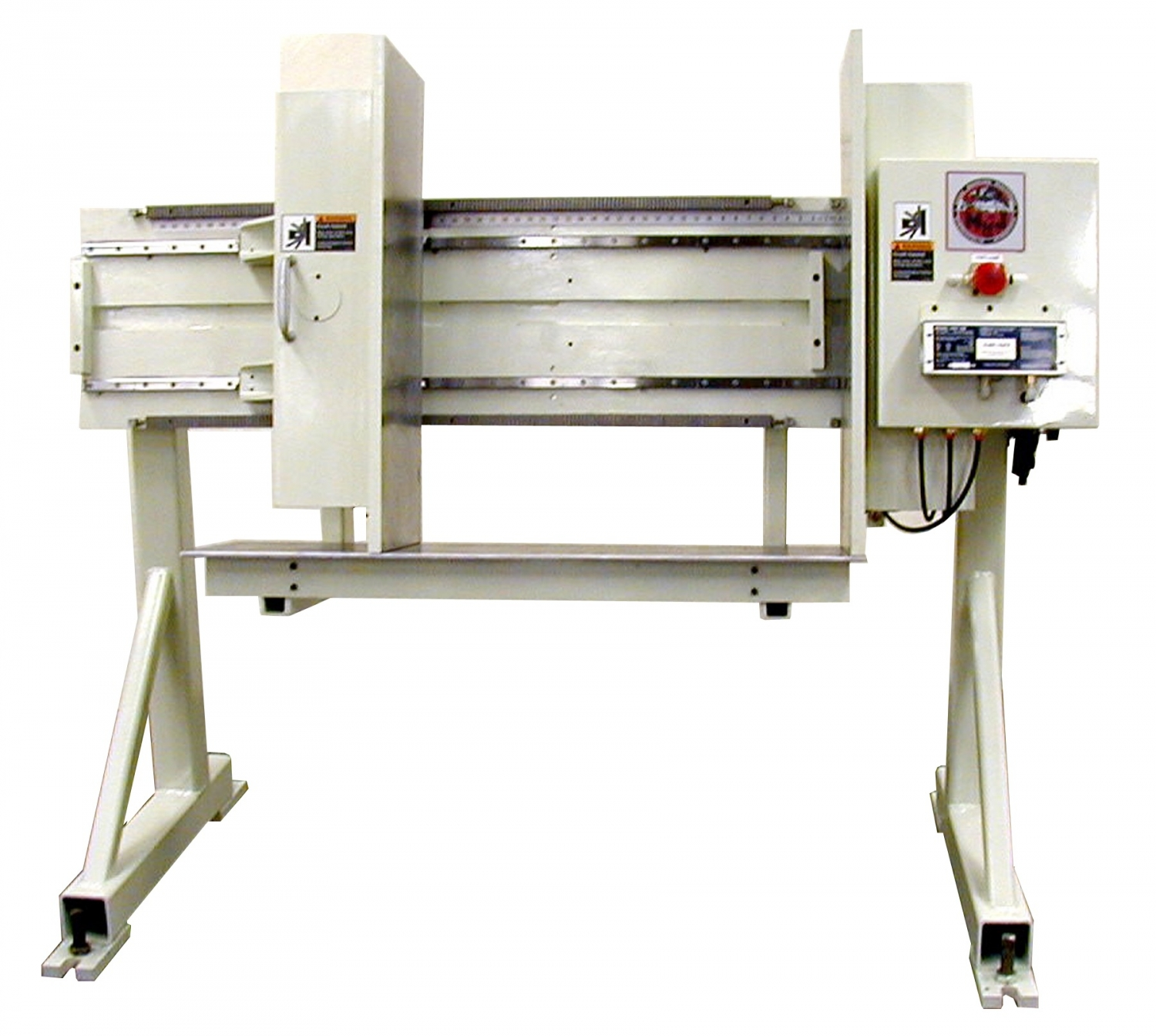

Mereen-Johnson Model 99-D-BOX Drawer Clamp
Tubular weldment frame with built-in leveling bolts and anchor feet
Horizontal axis: horizontal axis traversed on precision linear rails with reciprocating bearings, manual slide to position adjust, air cylinder rack lock integrated with clamp controls
scale and pointer position reference
clamp through air actuation
Min. Clamping Size: 3-1/2" wide x 10" long x 1" deep
Max. Clamping Size: 36" wide x 42" long x 15" deep
Horizontal Clamping Pressure: 2000 lbs. max.
Air requirement: 80-100 psi, maximum 5 cfm required
Air supply line: 3/4" diameter
CONTROLS Air valve push buttons for horizontal axis through dual palm type controls, R.H. side, interlocked for operator safety
