NEW SYSTEMS C-1203

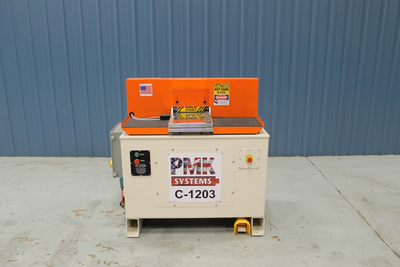

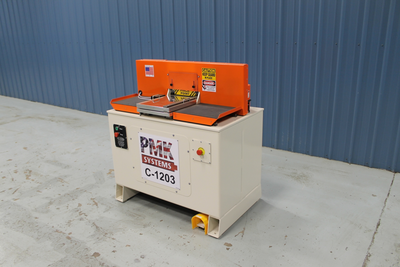

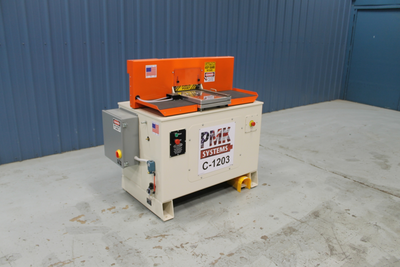

PMK Systems Model C-1203 PLC End Matcher/Coping Machine
Chip free coping or end-matching of squares or profiled parts without the need of a back-up piece

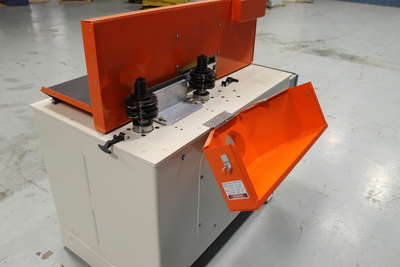

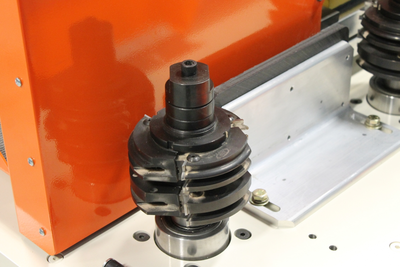

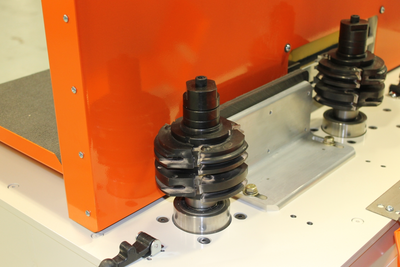

Two counter rotating spindles
Spindle Diameters: 1-1/4"
Spindle Speeds: 7,000 RPM

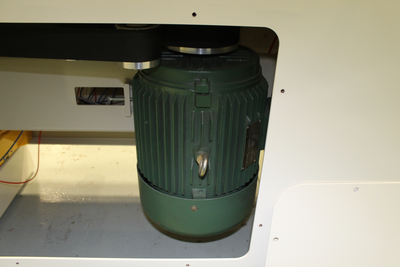

Main Motor: 7-1/2 HP, 230/460 volts (please specify your voltage)
Maximum Cutter Diameter: 5" OD
Minimum Cutter Diameter: 3-1/2" OD
Maximum Part Size: Up to 1" thick depending profile and density of the wood. 9-1/2" Wide
Minimum Length of Part: 4"
Maximum Depth of Cut: 3/4"
Minimum part width is determined by the O.D. of the cutter and if the part is profiled or not
Unlimited Part Length

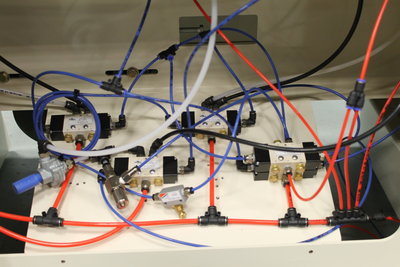

External flow valve allows you to adjust the speed of the sliding table according to the thickness, width & density of the part
New Safety lenses in top of hood to check rotation of spindle

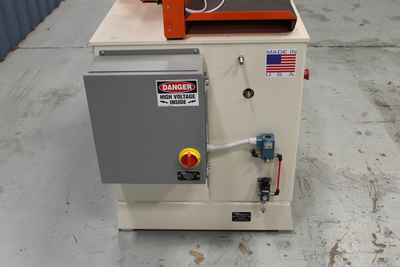

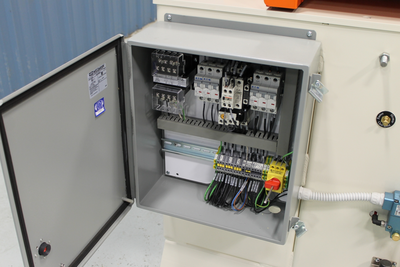

New up-graded PLC Controller
Cycle time adjustable from 4 to 10 seconds

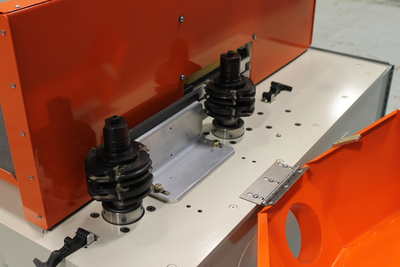

The C-1203 has the capacity to stack tooling

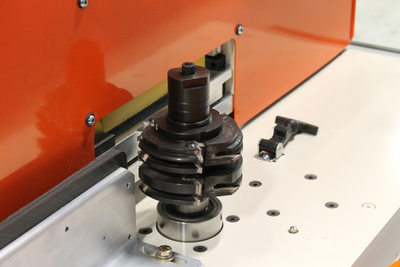

Maximum two cutters per spindle
Dust Hood with 5" port
Dust Collection Requirement: 1,000 CFM

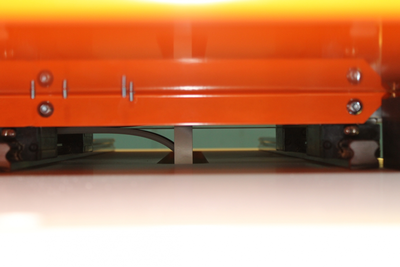

Precision THK rails for guidance of carriage stroke and hold down clamp
Side pressure clamp insures proper alignment with fence
The C-1203 meets UL & CSA Electrical Standards
Machine Can Also Be Outfitted with HSK Tooling, A Touch-Screen, Etc.
Can Be Sold Without Electrics for Amish Customers
Tooling is Sold Separately
