NEW SYSTEMS C-1205

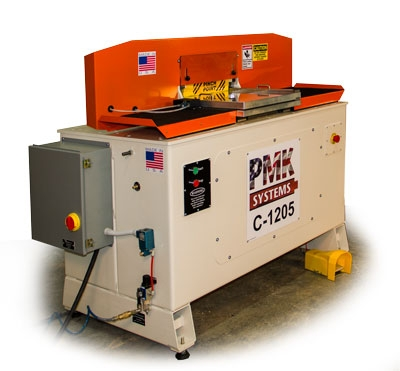

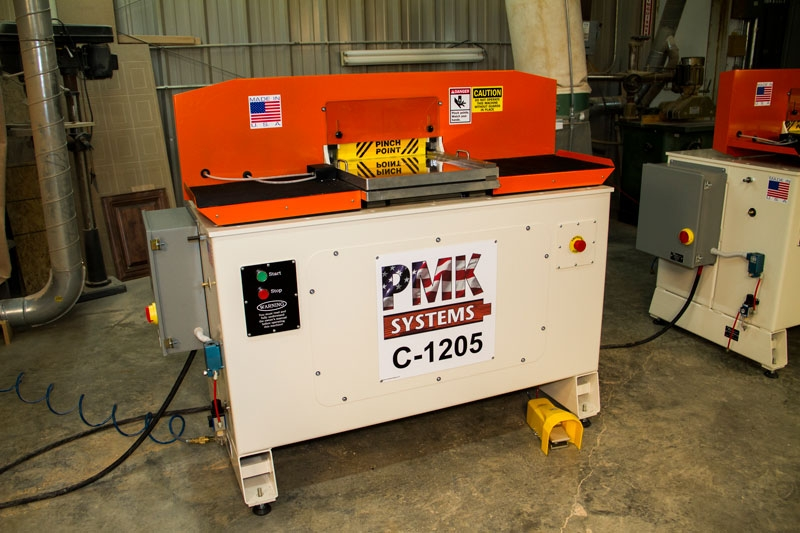

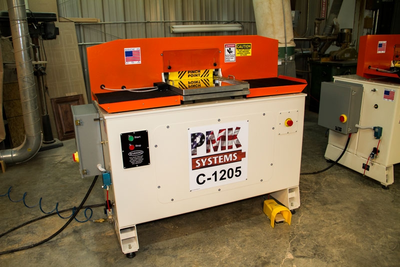

PMK Systems Model C-1205 End Matcher/Coping Machine

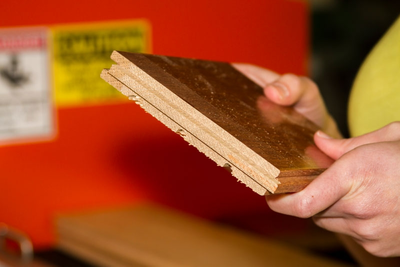

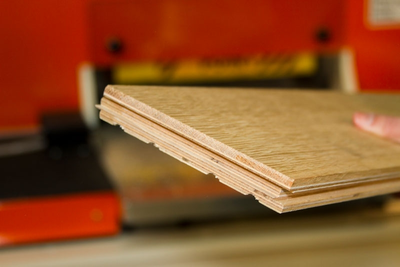

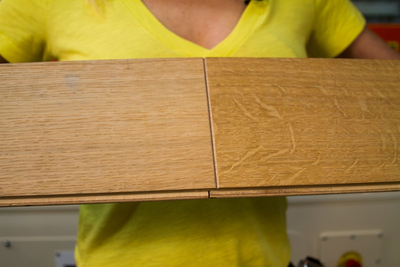

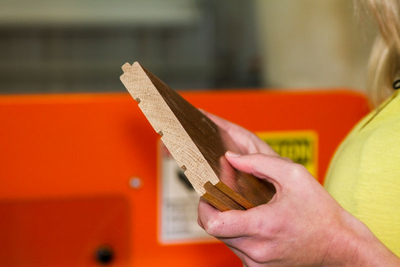

The PMK C-1205 Produces Chip free coping/end-matching of squared or profiled parts without the need of a back-up piece

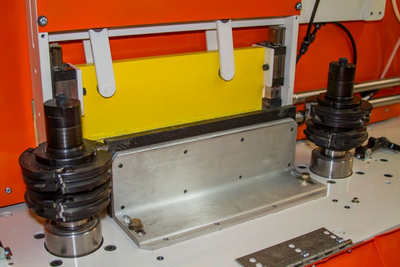

Two counter-Rotating Spindles
Spindle Diameters: 1-1/4"
Spindle Speeds: 7,000 RPM
Main Motor: 7-1/2 HP Motor, 230/460 volts (please specify your voltage)
Maximum Cutter Diameter: 5" OD
Minimum Cutter Diameter: 3-1/2" OD
Maximum Part Size: 2" Thick x 13.5" Wide
Minimum Part Length: 3"
Maximum Depth of Cut: 3/4" Depending on Profile & Density of Wood
Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not
Unlimited Part Length
External flow valve allows you to adjust the speed of the sliding table according to the thickness, width & density of the part
NEW Safety lenses in top of hood to check rotation of spindles
Cycle time adjustable from 5 to 10 seconds
The C-1205 has the capacity to stack tooling
Maximum two cutters per spindle
Dust Hood with 5" Port
Dust Collection Requirement: 1,000 CFM
Precision THK rails for guidance of carriage stroke and hold down clamp
Side pressure clamp ensures proper alignment with fence
The C-1205 meets UL & CSA Electrical Standards
Includes aluminum sub-table for stacking of tooling
Tooling Sold Separately
