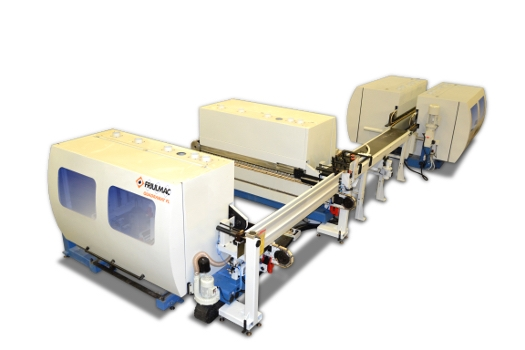

Friulmac Quadramat-FL Double End Tenoner

Friulmac Model Quadramat-FL Double End Tenoner
In line solution where the first QUADRAMAT-FL processes the work-piece lengthwise and the second one crosswise. Fittingly equipped with a conveyor and a linking transfer.
Stand-alone solution where a single QUADRAMAT-FL machine includes all the technological solutions to execute the lengthwise and crosswise processing by passing the work-pieces through the machine twice.

Principal characteristics:
Working speed up to 120 m/min.
The heavy machine base is made of a normalised electro-welded structure able to absorb and avoid the vibrations and resonances caused by the working process.
Iron casting working unit support columns and gliding slides.
The accurate manufacturing of the sliding guides allows the transversal and vertical working unit regulation without mechanical locking.
The chain feeding occurs by bearings rolling on cylindrical precision rectified steel guides.
Top pressure system:
Motorized with speed control by inverter
Pneumatic independent pulleys and trapezoidal track covered with special non-marking rubber
Uniform pressure on the processed work-piece all along the machine.
Hundredth mechanical comparators for a fine axial and radial regulation on each profiling unit.
Air compressor system and motorized brushes for the feeding system cleaning.
