USED 2008 OKAMOTO OGM-12.60UB

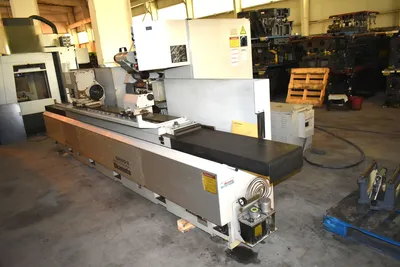

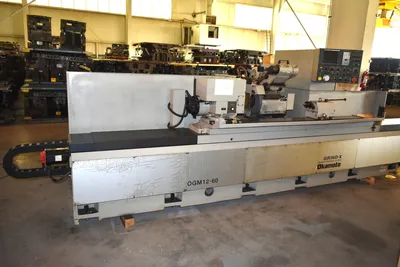

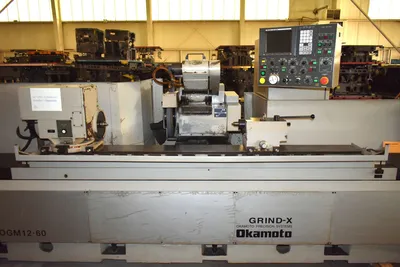

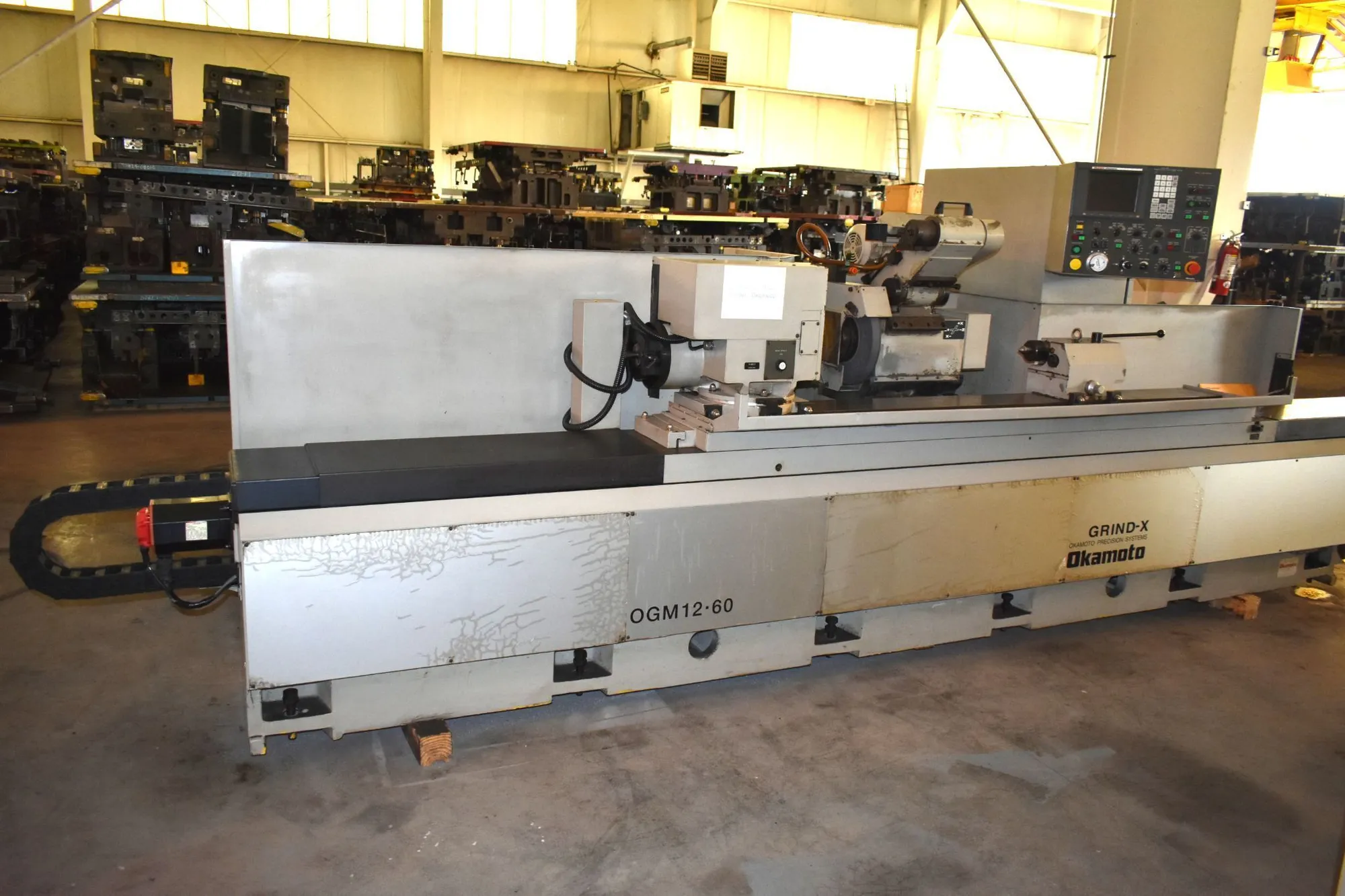

12" x 60" OKAMOTO GRIND-X CNC UNIVERSAL CYLINDRICAL GRINDER
New 2008, Serial No 32019, Model OGM 12-60UB, Series GRIND-X

EQUIPPED WITH:

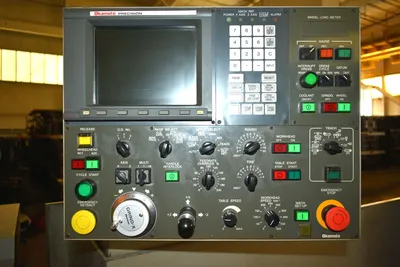

Okamoto/Fanuc MDI Programmable Control w/Ball Screw
Driven X and Z Axes & Teach Feature
Swing-Down Internal Grinding Attachment

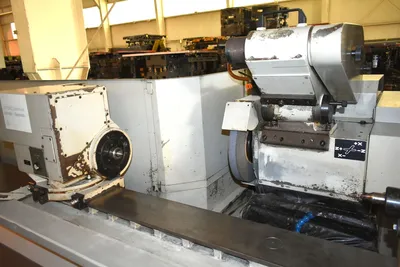

Dead/Live Spindle Variable Speed Workhead
Automatic Lube System - Grinding Wheel Balancing Stand

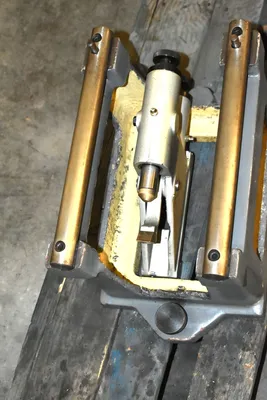

Wheel Dresser - Steady Rest

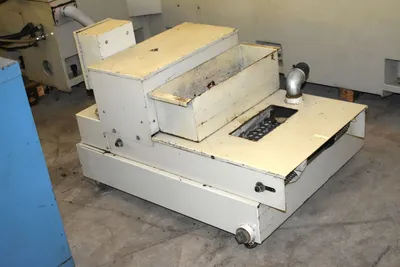

Coolant Filtration System (Tank & Pump)

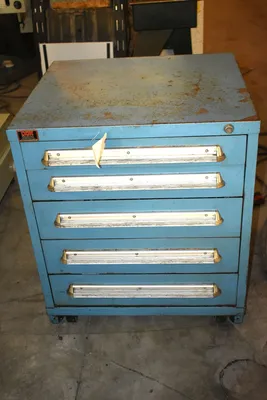

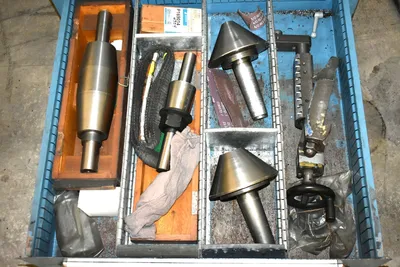

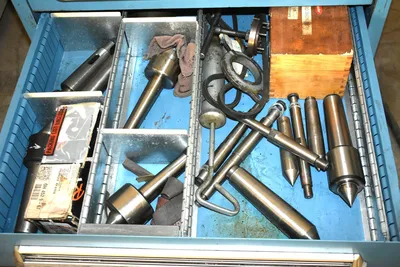

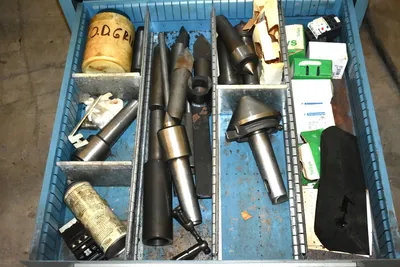

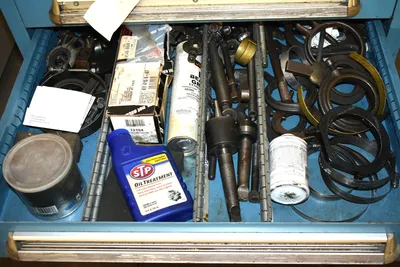

CABINET INCLUDING: Centers - Arbors ETC

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 12.6"
Distance Between Centers, 60"
Grinding Diameter, Maximum 12"
Weight Capacity Center Work 330 LBS
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Table Longitudinal Travel 73.5”
Table Swivel Adjustment 0 to -5-DEGREES
Wheelhead Swivel Range +/- 30-DEGREES
Workhead Swivel Range + 30 to -90-DEGREES
Tailstock Center Taper #4 MT
Workhead Center Taper #4 MT
Tailstock Spindle Stroke 1.2"
Grinding Wheel Speeds, Range 1770 & 2000 RPM
Workhead Spindle Speeds, Range 10 to 500 RPM
Table Longitudinal Feeds, Range 0 to 400 IPM
Wheelhead In-Feed Rapid 400 IPM
Grinding Wheelhead Spindle Motor 7.5 HP
Workhead Motor, Horsepower 1 HP
Floor Space Required, L x D 259” x 74"
Overall Height 64"
Weight, Approximately 13500 LBS

F.O.B. OUR WAREHOUSE
