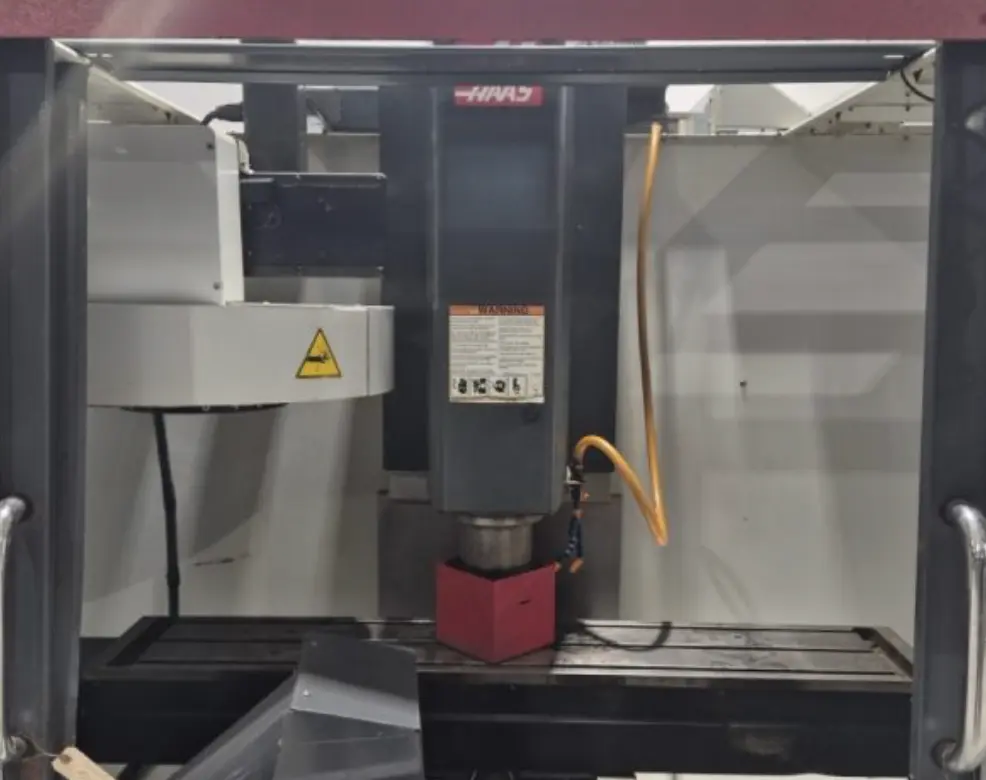

USED 2011 HAAS TM-2P

Ohio, United States
1,579Listings|478Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center with 40"x16"x16" travel, 20-tool umbrella changer, 7.5 HP, 6000 RPM spindle, and Cat 40 taper. Includes Haas CNC Control, chip auger, and coolant system. Weighs 5,200 lbs.

Specs
X
40"
1,016 mm
Y
16"
406.4 mm
Z
16"
406.4 mm
Power
7.5 hp
5.6 kW
RPM
6,000 RPM
6,000 RPM
# ATC
10
10
Taper
CAT 40
CAT 40
Table-W
10.5"
266.7 mm
Table-L
57.75"
1,466.8 mm
# Axis
3
3
Control
CNC (HAAS)
CNC (HAAS)
Dimensions
130″ x 78″ x 99″
130″ x 78″ x 99″
Weight
5,200 LBS
5,200 LBS

X AXIS: 40.00″
Y AXIS: 16.00″
Z AXIS: 16.00″
Tool Changer- 20 (Umbrella)
Spindle Motor- 7.5 HP
Spindle Speed- 6000 RPM
Spindle Taper- Cat 40
Machine Weight- 5,200 LBS
Machine Dimensions 130″ x 78″ x 99″

Equipped With

Haas CNC Control
Chip Auger
Coolant System
