NEW NEWMAN TS-24

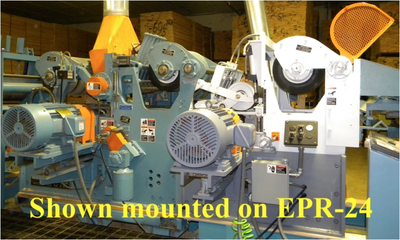

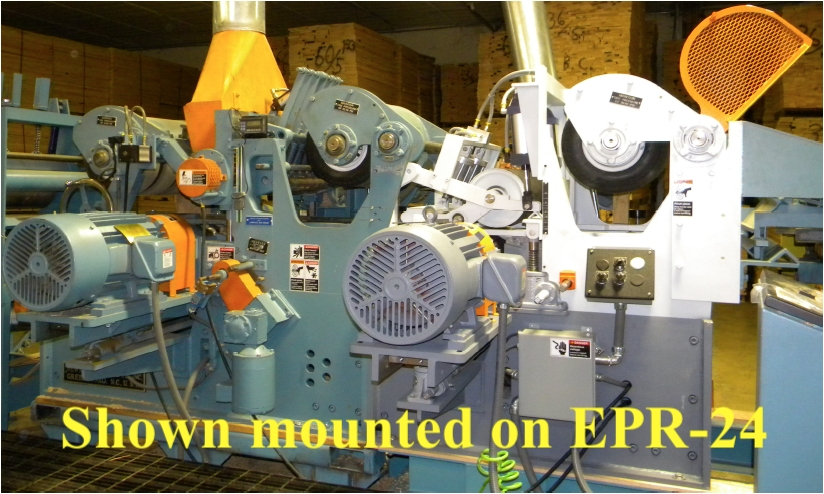

NEWMAN TS-24 Equalizing Module (to be used in conjunction with Newman EPR-24 or S-282-24).
Helical Carbide Bottom Cutterhead, 8-knife.
50 HP 3600 RPM bottom head motor; 3 phase, 60 cycle, 460 volt.
Feed works consists of one top infeed roll consisting of four pneumatic tires mounted on steel shaft.
Top roll yoke pivots from frame allowing for stock variation and quick roll raising. Bottom infeed rolls are idle.
Variable feed speeds of 50-350 FPM. Top roll is powered by 15 HP helical gear motor with AC variable frequency drive.
Automatic Cut Control for bottom cutterhead.
Coated top press roll located over A.C.C. roll is idle.
Grinding rail stands furnished for bottom cutterhead.
Cutterhead brake. Dust hood.
Standard electrical control panel equipped with full-voltage starters and fuses for line protection.
Service technician required for module installation, start-up assistance, and operator training. (Newman standard service rates will apply.)
