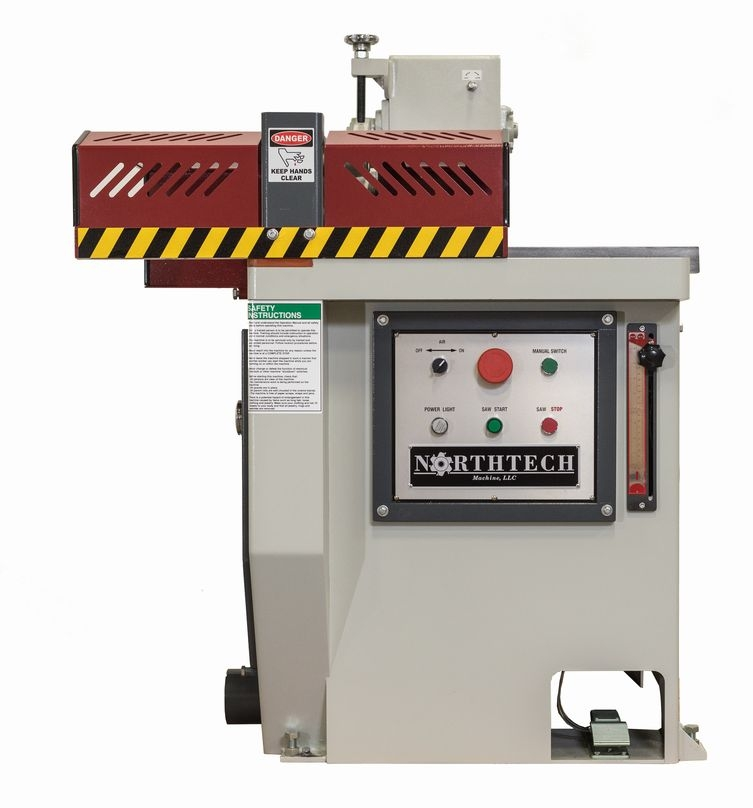

NEW NORTHTECH NT-UCS24

Northtech Model NT-UCS24 Up Cut Saw
Main Motor Hp. = 15 Hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 32 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Magnetic Controls
Assisted Start = Y Delta
Cut Envelope = 2" x 21", 4" x 19", 6" x 15", 8" x 8"
Max. Width = 1'' x 22''
Max. Thickness = 8'
Arbor Rpm = 2100
Blade Size = 24'' Tungeston Carbide Tipped
No. of Teeth = 100 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = .156 In.
Dust Collection = (2) 4'' @ 450 CFM
Dust Port Out = 4'' Top 4'' Bottom
Arbor Diameter = 1'' Arbor
Cycles/Minute = 26 Cuts Per Minute
Hold Down Style = T Clamp
Recommended CFM = 480 nl/min
Emergency Stop = Push Button
Guarding = Full Gaurd with Clear View Window
Operation Style = Pneumatic Foot Pedal
Fence Type = Adjustable Fence
Fence Dims. = 2" x 25'' Machined Steel
Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
Frame Const. = 1/4'' Steel Construction
Worktable Dims. = 28-3/4'' x 45''
Table Const. = Machined Steel
Decible Rating = 68 dB
Net Weight = 1285 Lbs.
Gross Weight = 1455 Lbs.
Machine Dims. = 31-3/4'' x 45'' x 56''
Packaging Dims = 36'' x 51'' x 61''
OPTIONAL: For additional charge Dual Palm
OPTIONAL: For additional charge Safety Interlock Switch
Available in Left & Right Hand Configuration
