NEW NORTHTECH NT

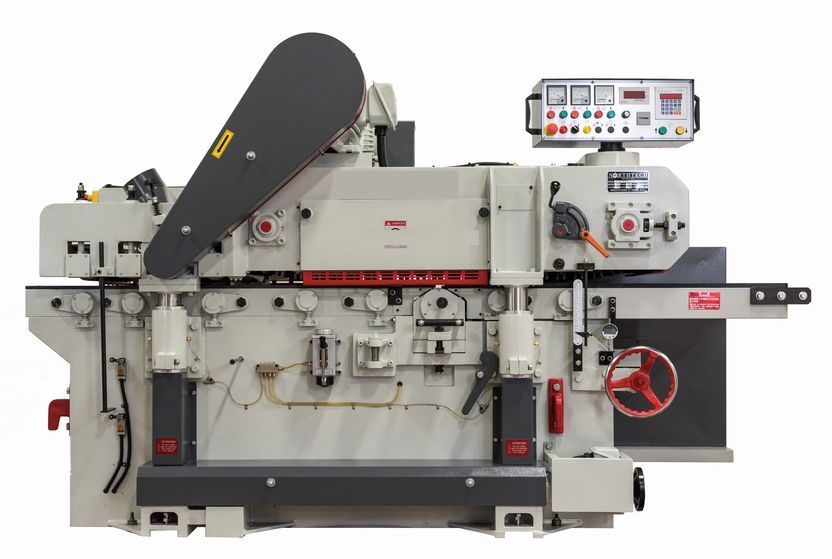

Northtech Model NT 820HC Auto Double Surface Planer
CUTTERHEADS
50HP Top, 50HP Bottom
Dual (8) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
5000RPM solid steel cutterheads with Class 7 NSK bearings
PRODUCT DIMENSIONS
Working width 820mm (32")
16" min working length
Thickness range 10mm - 160mm (3/8" - 6-1/4")
FEED SYSTEM
10HP + 15HP inverter feed motor
Elevation motor: 2HP
Carpet feeding spike system with 1900 spikes
Feed speed 8~25 M/min (25-80FPM)
FEATURES
Digital control panel with 3 oversized inverter feed control amp meters
Chrome bed plate
Patented 4 column lifting system
Carpet feeding spike system
Cardan shaft drive system
80 FPM maximum feed speed
Amperage requirement at 160 @ 460V; 320 @ 230V
(3) 6" dust ports requiring 981 CFM @ each point of extraction
UL/CE Certified electrical components
Lubricating system 2L
Includes operator's manual and parts book
Machine dimensions: 121" L x 77" W x 69" H
Packing dimensions: 124"L x 81"W x 77"H
Machine gross / net weight: 15,433 lbs. / 16,535 lbs
One year parts warranty
All machines are tested stateside prior to shipment providing trouble-free start up.
