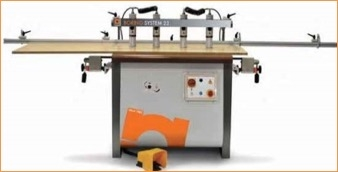

Maggi Boring System 23 Construction/Line Borer

Maggi Boring System 23 Construction/Line Borer

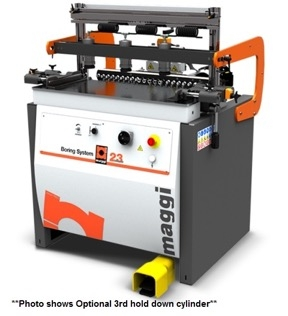

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.
Accurate positioning of the boring unit to the table with digital readout.
0 to 2.5" adjustable drilling depth with patented spiral setting device.
(2) patented quick release material clamps with auto-setting to firmly hold material to table.
Powerful 2 HP motor.
37" x 13" cast iron table.
Side fences with mechanical digital readout for quick and accurate setting.
120" line boring fence with (4) stops.
Foot actuated pneumatic clamps and drill cycle.
Includes: Magnetic Starter with overload protection and (23) quick change chucks. Dust Outlet: 3".
Net weight: 630 lbs.
Dimensions: 51.7" x 37.8" x 50" Tall.
Crated Dimensions: 42.2" x 37.4" x 40.5" Tall.
Crated Weight: 705 lbs.
230v, 3ph (1ph available for additional charge)
