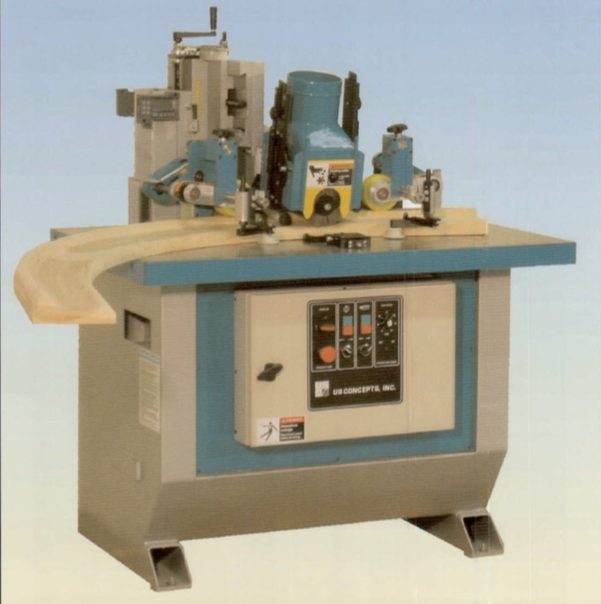

US Concepts Model FAS-HD Universal Arch Moulder

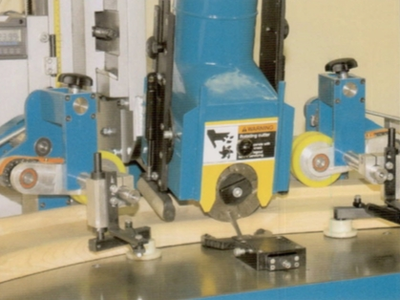

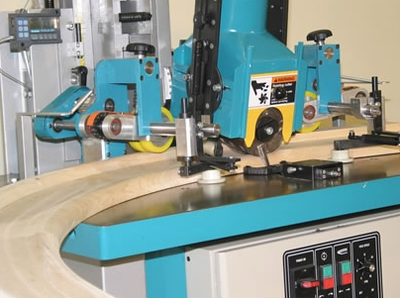

The FAS-HD is a Universal Arch Moulder for curved and straight moldings. This heavy duty, affordable machine consistently cuts curved profiles by using a unique floating feed system that registers on the outside edge of the curved blank. The FAS-HD is equipped with two axis spindle adjustment to easily and accurately match the cutter to the moulding profile. The spindle adjustments and floating feed make cutting circular, elliptical and straight casings and crowns easy. This machine has been designed to accommodate cutting heads from a typical moulder.
Spindle diameter 1.5"
Spindle speed RPM 6200
7 powered feed rollers
Max cutting width 8"
Max cutting diameter 7.75"
Max material height 4.25"
Main Motor 10HP
Feed Speed (Adjustable) 0 - 30 FPM
Floating feed system with 7 powered feed rolls
Machine Weight 1780 lbs
Cast Iron dovetail slides for 2 axis spindle adjustment
Heavy duty frame
Table Size (Cast Iron) 48" x 30"

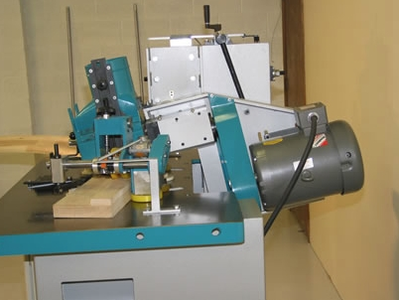

52 degree spindle tilt
Up-down & In-Out adjustment
Forward-Reverse controls for spindle and feed
230V, 3 phase electric
