NEW NORTHTECH NT-UCS18

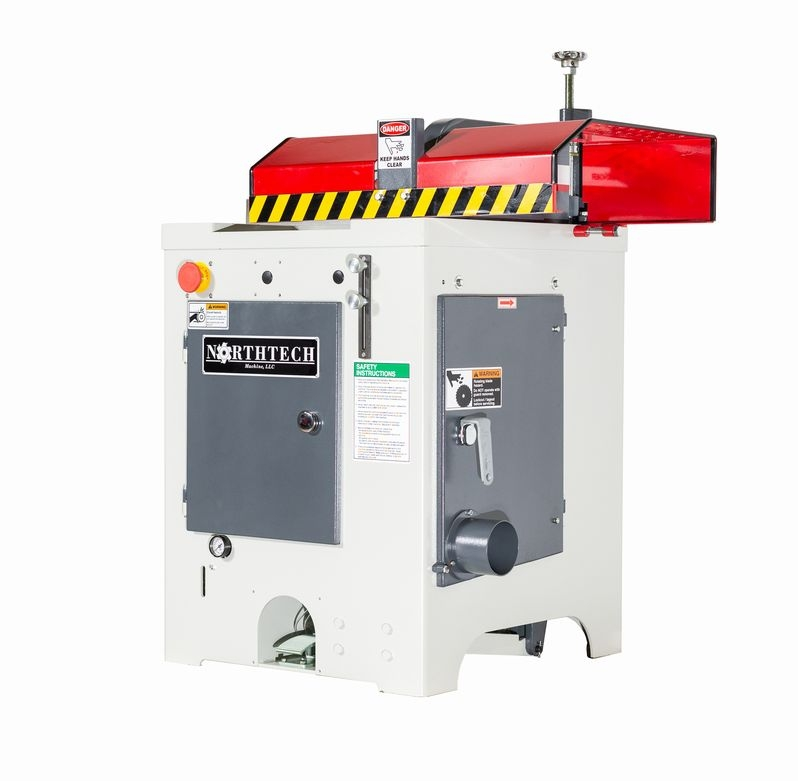

Northtech Model NT-UCS18 Up Cut Saw
Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
10HP motor, 3PH 230V with 24V magnetic controls
18" 120T Carbide tipped blade included
1" Saw arbor diameter
Cycle operation: Pneumatic 45 cuts per minute
Table size: 26" x 27.25"
Adjustable fence 2" x 25"
Quick access on front of the machine to adjust blade stroke
Dust requirements: (1) 4" dust port requiring 436 CFM at point of extraction
(1) Tool box and manual
Cutting Envelope 1" x 13", 2" x 12", 3" x 11", 4" x 10", 4-1/2" x 8"
10HP arbor motor
Pneumatic hook up with slide shut off, filter lubricator, and regulator
Gravity flip stops provide quick reference without relocating stops, (2) included
18", 120T Tungeston Carbide Tipped Blade included
All electrics organized in dust proof box

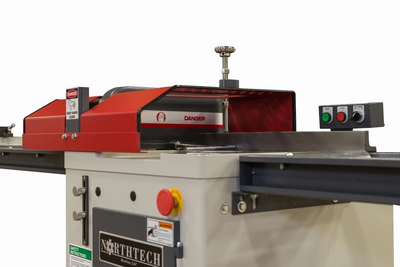

Quick hood adjustment allows operator to set minimum clearance over part for increased productivity and safety
Full guard with clear view windows protects operator while maintaining visibility at point of cut

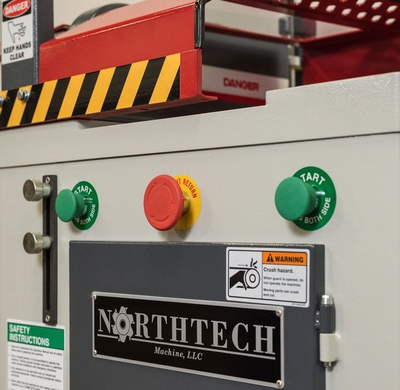

Front mounted Emergency Stop for quick access, shuts electrical power off to blade and immediately terminates air supply returning clamp and blade to home position
Control center with pneumatic shut off
Double action cylinder ensures part hold before blade begins cut
Blade cycle adjustment is easily controlled from the front of the machine through quick lock knobs
Tool box including all applicable tools, wrenches, as well as operators manual are included
Optional gravity flip stops provide quick reference of lengths without relocating stops, not included

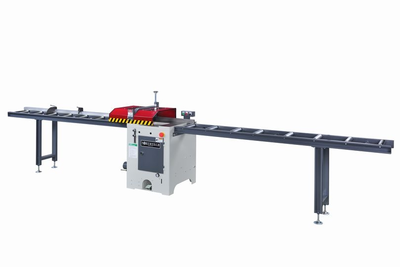

Infeed and Outfeed options available at extra cost, 8' and 16' options
