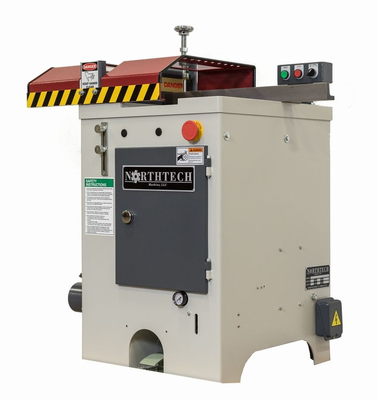

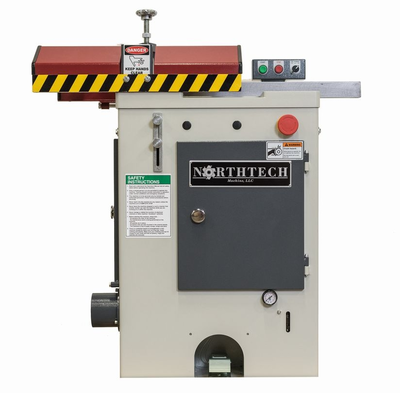

NEW NORTHTECH NT-UCS-14

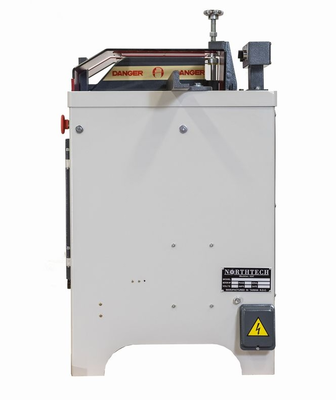

Northtech UCS-14 L or R Up Cut Saw
Max cutting capacity: 1" x 11", 2" x 10", 3" x 9"

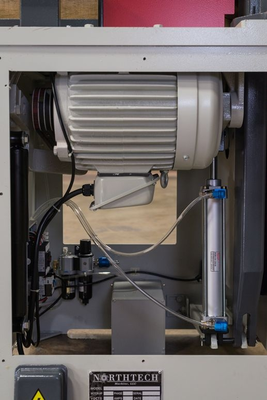

7.5HP motor, 3PH 230V with 24V magnetic controls

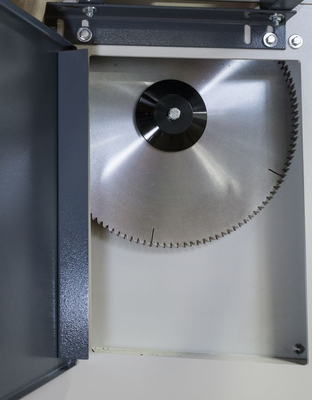

14" 100T Carbide tipped blade included
1" Saw arbor diameter
Cycle operation: Pneumatically adjustable up to 78 cycles/minute
Arbor RPM: 4260RPM
Table size: 25" x 23-1/4"
Fence dimensions: 2" x 25"
Passline: 33-3/4"
Quick access on front of the machine to adjust blade stroke

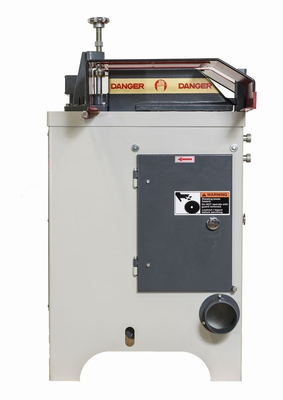

Dust requirements: (1) 4" dust port requiring 436 CFM at point of extraction
(1) Tool box and manual

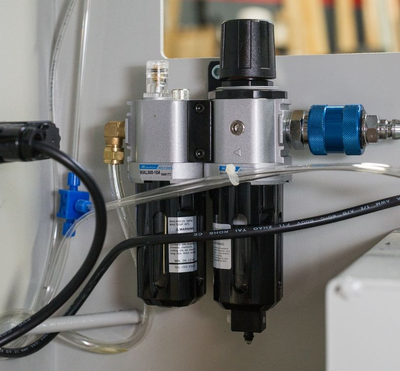

Central pneumatic hook up with slide shut off and filter lubricator and regulator securely located inside body for added protection
Pneumatic foot pedal control

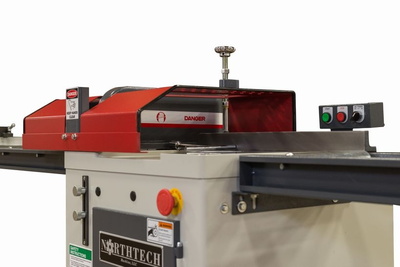

Quick hood adjustment allows operator to set minimum clearance over part for increased productivity and safety
Full guard with clear view windows protects operator while maintaining visibility at point of cut

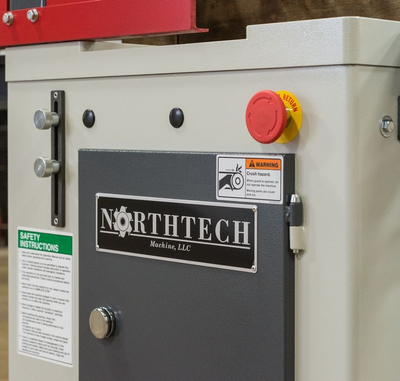

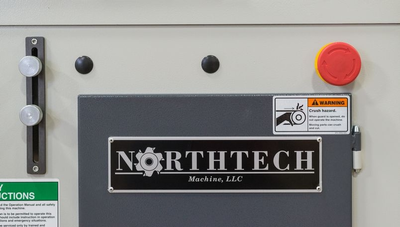

Front mounted Emergency Stop for quick access, shuts electrical power off to blade and immediately terminates air supply returning clamp and blade to home position
Control center with pneumatic shut off

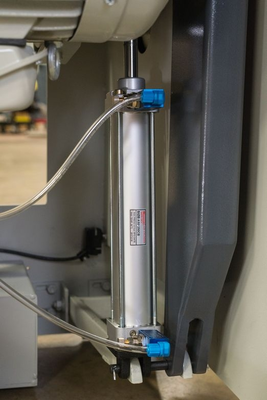

Double action cylinder ensures part hold before blade begins cut
Blade cycle adjustment is easily controlled from the front of the machine through quick lock knobs

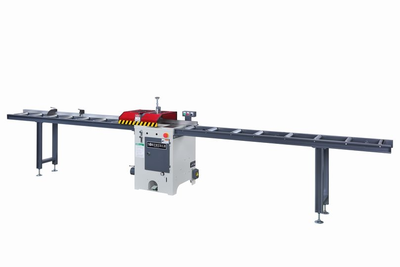

Optional 8 or 16' infeed/outfeed at additional cost
