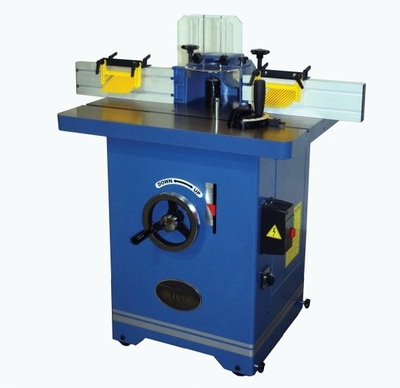

Oliver 10047.001 Shaper 3HP 1Ph

Oliver 10047.001 Shaper 3HP 1Ph
Large cast iron table precision ground table provides a solid work surface.
Full cabinet stand includes wheel and locks.
1-1/4" interchangeable spindle included, other sizes available.
Optional router bit collets available.
Four spindle speeds for versatility
Belt changes are quick and convenient with unique tensioner.

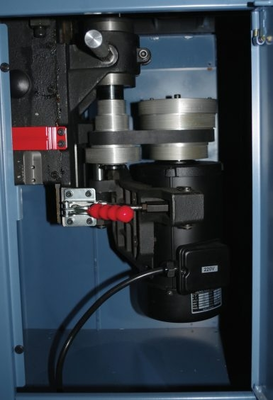

Poly V-belt drive for smoother operation.
Spindle reverses for more options with each set-up.
Four inches of spindle travel allows more set-up options.
Starting pin for irregular shapes included.

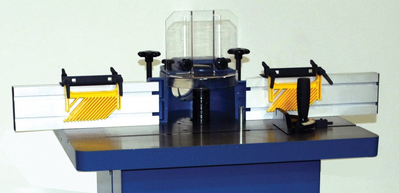

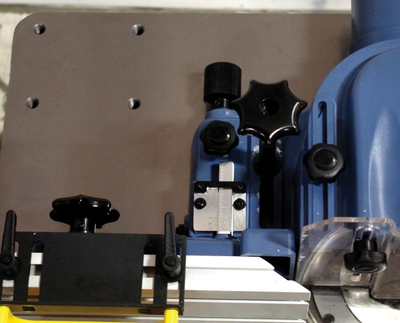

Fence is independent and includes micro adjustments.

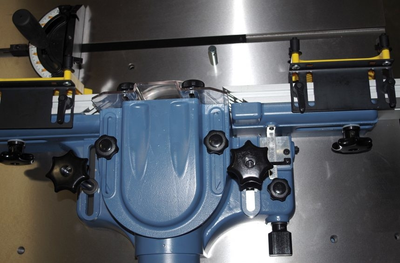

Adjustable hold downs add to a safer operation.

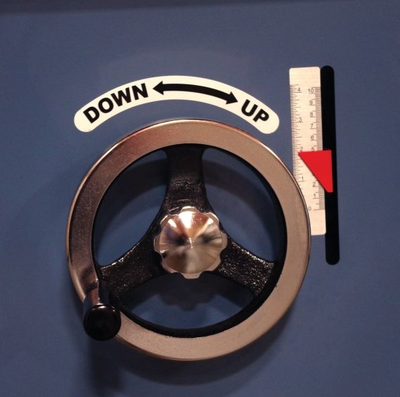

Extra large handwheel for easy and quick height adjustment.
Mitre guage included.
Magnetic controls for added safety.
Powerful TEFC motor in 3HP or 5HP to meet your needs.
Under Nut Capacity 4" with 1-1/4" spindle
Table Opening 6-1/4"
Large Insert Opening 4-5/16"
Small Insert Opening 2-1/2"
Table Height 34"
Table Size 32" x 26"
T-Slot Size 3/4" x 3/8"
Fence Size (2) 4-13/16 x 16"
Dust Port 4"
Minimum CFM Required 800
Motor 10047.001 3HP 1Ph 230V Only
Motor 10047.002 5HP 1 PH 23oV Only
Specify motor power when requesting price
