NEW NORTHTECH NT-ADS100A

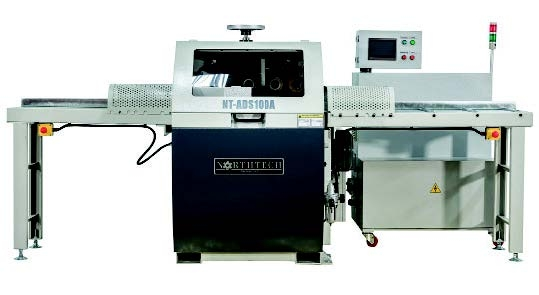

Northtech Model NT-ADS100A Defecting Saw Line
High speed defecting saw
Saw: 10HP high efficiency TEFC motor

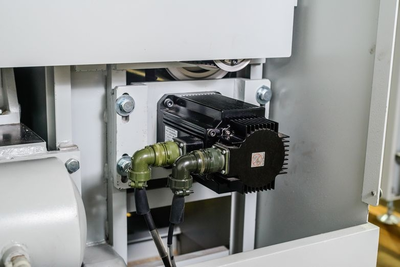

Feed motor: 2kw (2.5HP)
Saw arbor speed:

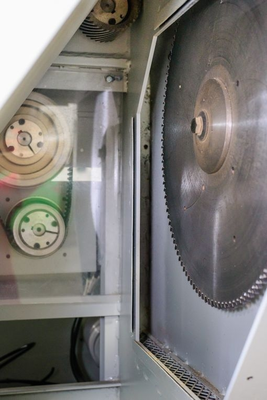

Standard: 18" saw blade: 4000RPM
Feed speed: 25 - 256FPM
Up to 80 cuts/min
1.2m (4') infeed roller table included
1m (3') outfeed table
Crayon Marking Defect Saw included

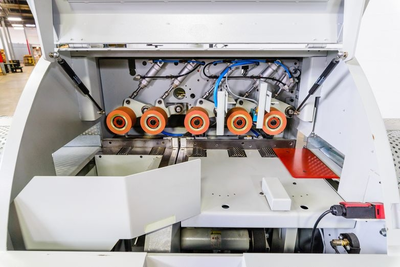

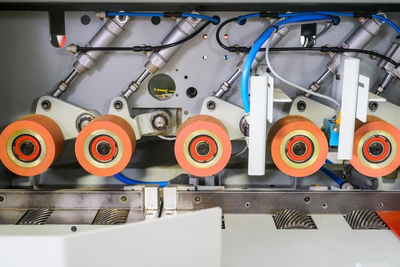

160mm (6") wide hold down rollers for premium support on parts over 4" wide
+/- 1/8" cutting tolerance
Saw arbor: 30mm diameter: (1.125")
Touch screen interface
Minimum product dimensions (LxWxH): 12" x 1.1" x .3"
Working passline height: 900mm (35")
(2) 4" Dust ports require 436 CFM @ points of extraction
