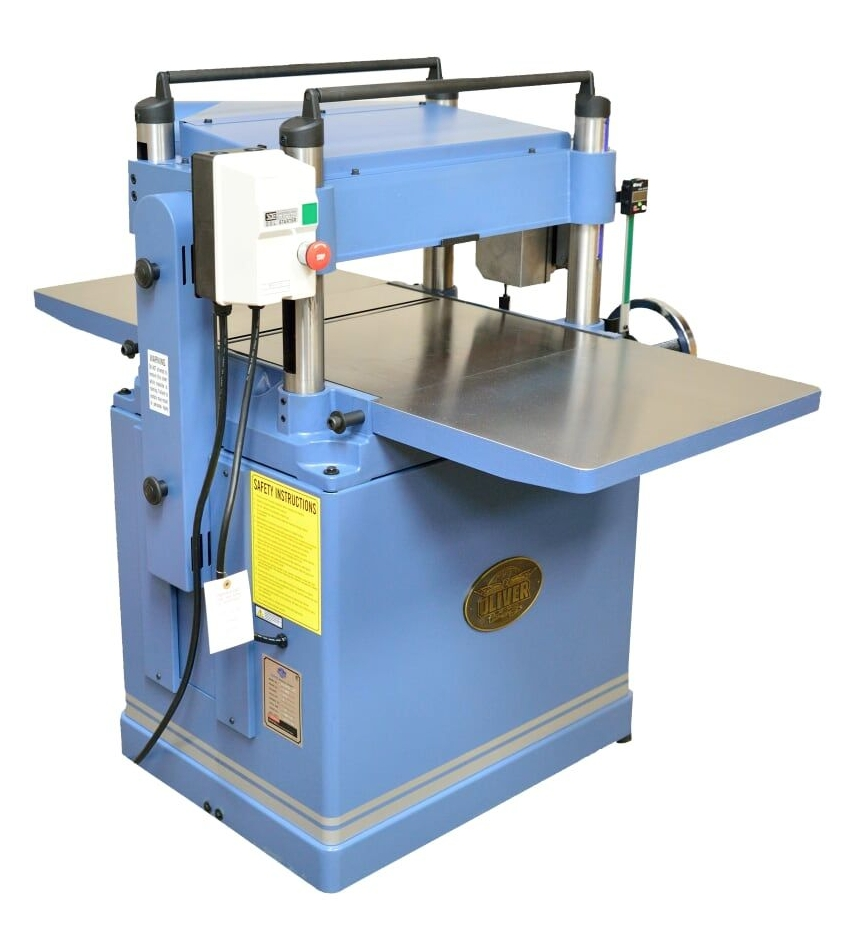

NEW OLIVER 4430.201

Oliver Model 4430.201 20" Planer with Helical Cutterhead 5HP 1Ph
Unique design allows motor and cutter head to move in unison
Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping
Helical cutter head with German-made carbide inserts
4-sided cutting inserts are indexed and easy to replace
Heavy cast iron construction including extension wings
Table is precision ground for smooth stock feeding
Table is fixed allowing easy use of auxilary stock support
Digital read out allows precise thickness settings
Large hand wheel and support struts allow easy height adjustment
Four-post design ensures head alignment regardless of stock thickness
Top mounted roller for easy multiple passes
Two-speed feed gearbox for better cuts
Oil bath gear lubrication for years of performance
Built-in mobile base allows easy movement in the shop
Magnetic switch for added protection and safety
Maximum Stock Width 20"
Maximum Depth of Cut 1/8"
Maximum Stock Thickness 8"
Minimum Stock Thickness 1/4"
Minimum Stock Length 7"
Dust Port Diameter 5"
Feed Speeds 16/20 FPM
Adjustable Bed Rollers 1
Table Size (L x W) 20" x 21"
Table Size With Extension Wings (L x W) 20" x 51"
Cutterhead Diameter 3-1/4"
Cutterhead Speed 5,000 RPM
Motor 5HP 1Ph, 230V Only
