NEW NORTHTECH NT-610XL

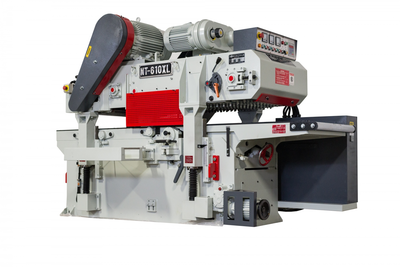

Northtech Model NT-610XL Double Surface Planer
CUTTERHEADS
30HP Top, 25HP Bottom
Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
5000RPM solid steel cutterheads with Class 7 NSK bearings
Cutterhead decibel rating of 75db or less
PRODUCT DIMENSIONS
Working thickness 10 - 155mm (3/8" - 6")
15" min working length
24" maximum width
FEED SYSTEM
5HP feed motor

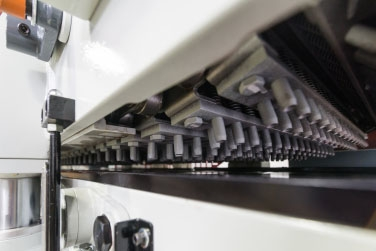

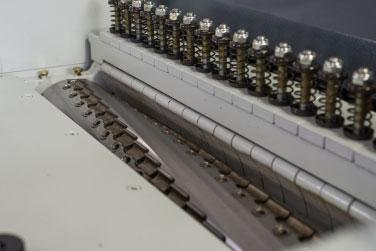

Carpet feeding spike system with 1100 spikes
Feed speed 25 - 95 fpm
FEATURES

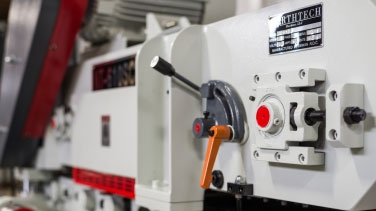

Mechanical variable speed

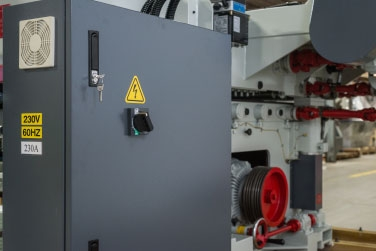

Digital control panel with 3 amp meters

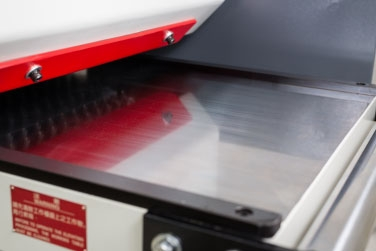

Chrome bed plate .01mm (.004") thick
Amperage requirement: 230V @ 200AMP, 460V @ 100AMP
(2) 6" dust ports requiring 1000 CFM @ each point of extraction
Automatic lubricating system with low level shut off
UL/CE Certified electrical components
Includes operator's manual and parts book
460 volt 3PH option available for an additional cost
8" opening option available for an additional cost
