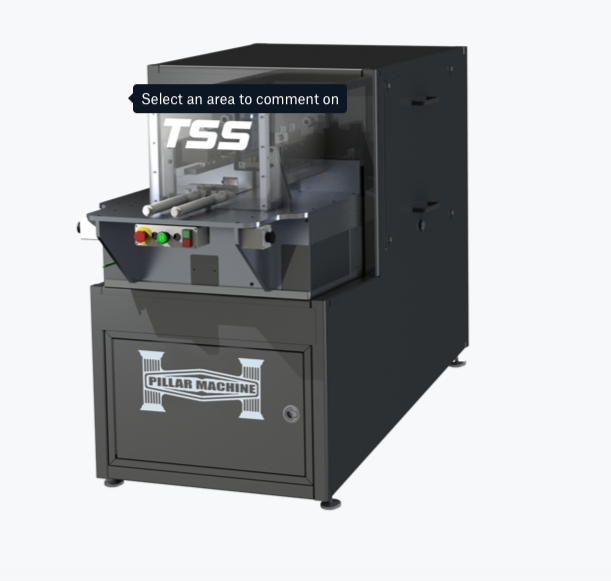

NEW PILLAR TSS

Pillar Model TSS Trim Score Saw
The TSS machine was designed to cut materials that are susceptible to tear out as well as for pack cutting of multiple parts at the same time
The saw is equipped with two counter rotating saws mounted above and below one another
The bottom saw is designed for pre-scoring parts prior to cut off to prevent tear out
The bottom spindle is designed to accept a 150mm diameter scoring saw and is powered by a 1 1/2 HP motor
Spindle speed is 4700 RPM
The top spindle is designed for a 300mm diameter saw blade and is powered by a 3 HP motor with a spindle speed of 4700 RPM as well
Saw blade travel is horizontal via linear bearings
It is powered by a pneumatic cylinder with adjustable flow controls
For Safety, horizontally mounted pneumatic work clamps are installed on each side of the cut-off saw and are equipped with a proximity switch to release only after full saw blade retraction
Standard Features
2 Counter Rotating Saws
Tear-Out Free Design
Ability to Cut Multiple Parts At Once
2" x 12" Material Size
Two 4" dust ports
CFM 700
Options
Waste Chute
Additional Part Clamping
10 Degree Table Tilt
2" X 24" Material Size
Full Integration with TigerStop / RazorGage Systems
