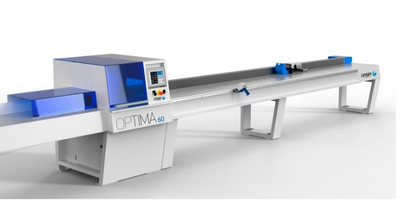

NEW OMGA OPTIMA

Omga Model OPTIMA 60
Data Sheet
Max. Piece Thickness: 4" 5/16th
Max. Piece Width: 12"
Max. In feed Length: 13'9" -20'4"
Max. Feed Speed: 200 FPM
Saw Blade Motor Power: 6HP
Saw Blade Diameter: 18" (20" optional)
Cutting Speed: 0.5-1 sec
Average Number of Cuts: 15 min - 20 min (kc)
General Specifications
Fitted with the last generation CNC

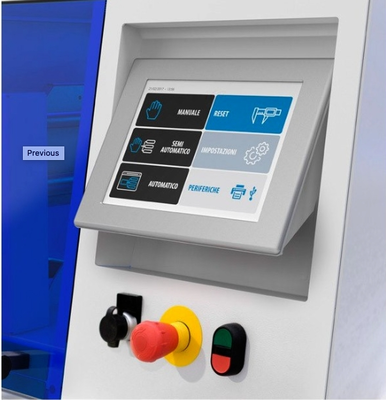

Adjustable 10.4" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator which ensure very accurate positioning of the work piece (+/- 0.15 mm)
RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine
Capable of optimization coupled with defecting function
Two different configurations:
SNC: Allows to process cutting jobs with step-down optimization of the different lengths present in the program or to process pre-determined cutting patterns. This configuration is ideal for batch-cutting
OPT:
Capable of optimization coupled with defecting function. The board is read through a laser guided system, which allows to select up to two separate grades and an absolute accuracy, even on finished parts, without leaving any trace
Optional
The cutting area may be fitted with a system of horizontal clamps, ensuring the squareness of the cut pieces

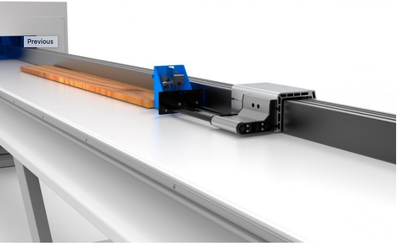

The pusher system may be fitted with a pneumatic tail clamp and linear encoder
