NEW OMGA T

Omga Model T 521 SNC
Data Sheet
Max. Piece Thickness: 4 1/2"
Max. Piece Width: 12 5/8"
Max. In feed Length: 14' -20'
Max. Feed Speed: 200 FPM
Saw Blade Motor Power: 6HP
Saw Blade Diameter: 18" (20" optional)
Cutting Speed: 0.5-1 sec
General Specifications
Average Number of Cuts: 15 min - 20 min

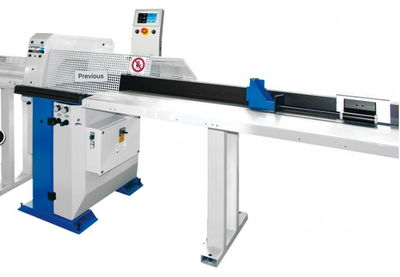

Automatic programmable cut-off saw for precision length cutting of wood stock

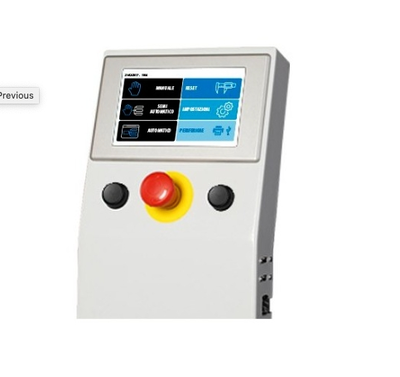

Equipped with a controller capable of performing two work cycle programs
Onboard computer able to store cutting lists with lengths and the relevant quantity of parts
Cutting lists can be input direct for the NC keypad or with direct serial connection to a remote PC
Available in 13' or 20' useable lengths
