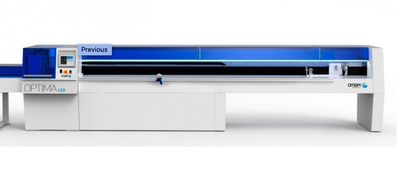

NEW OMGA OPTIMA

Omga Model OPTIMA 120
Data Sheet
Max. Piece Thickness: 4" 5/16th
Max. Piece Width: 12"
Max. In feed Length: 13'9" -20'4"
Max. Feed Speed: 400 FPM
Saw Blade Motor Power: 6HP
Saw Blade Diameter: 18" (20" optional)
Cutting Speed: 0.4-1 sec
Average Number of Cuts: 25 min - 35 min (kc)
General Specifications
Push-Feed Optimizing and Defecting Cut-Off

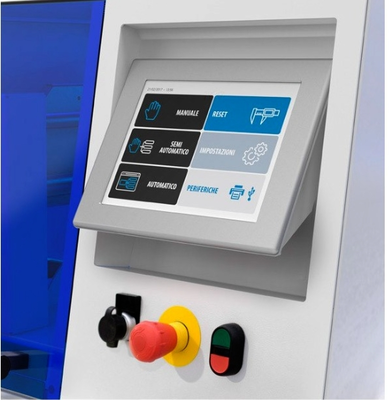

Adjustable 10.4" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator

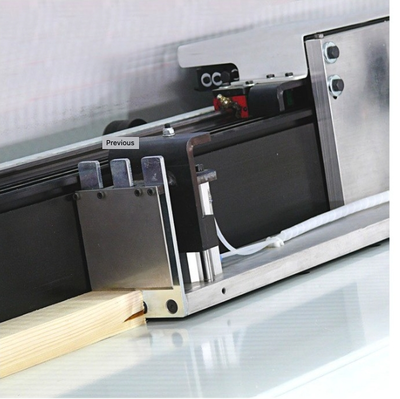

Pusher system, rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm)
Intelligent vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces
RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine
Capable of optimization coupled with defecting capability
Two Available Configurations
SNC: Allows to process cutting jobs with step-down optimization of the different lengths present in the program or to process pre- determined cutting patterns. This configuration is ideal for batch- cutting.
OPT: Capable of optimization coupled with defecting capability. The board is read through a laser guided system, which allows to select up to two separate grades and an absolute accuracy, even on finished parts, without leaving any trace.
