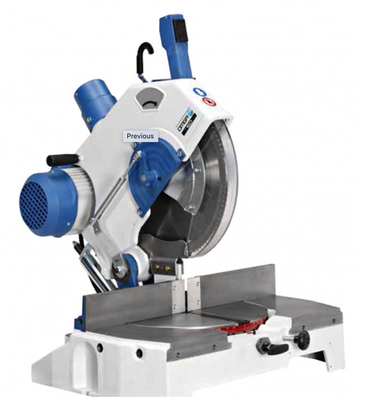

NEW OMGA T

Omga Model T 50 350
Data Sheet
Cross Cut Capacity 90 deg.: 6 3/4"
Cross Cut Capacity 45 deg.: 4 3/4"
Max. Depth of Cut With Head at 90 deg.: 4 5/16"
Motor Power: 3HP
Saw Blade Bore: 1"
Saw Blade Diameter: 14"
Arbor Speed: 3400
Dust Port: 3 1/8"
General Information
Solid cast iron base and head construction
Rotating table rides on roller bearings for maximum smoothness and accuracy
Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees
Manual locking device for all the intermediate angles provides a great flexibility to this unit
The belt driven transmission and a powerful 3 HP induction motor

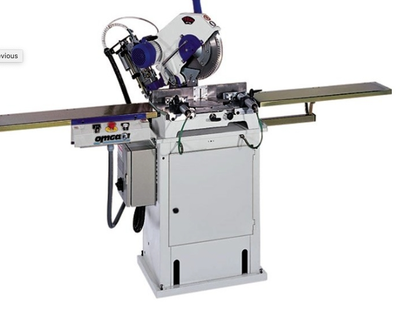

Options:
Cabinet for Mitre Chop Saws
Dust Collecting Cabinet
Table Extension with Scale 4'
Support for scaled table extension
Flip over stop Plexiglass at 45 degrees
Automatic Descent of the Head (T 50 350)
Pneumatic Horizontal Clamp RH (T 50-T 53)
Pneumatic Horizontal Clamp LH (T 50-T 53)
Pneumatic Hold-Down Clamp (T 50-T 53)
