NEW OMGA T

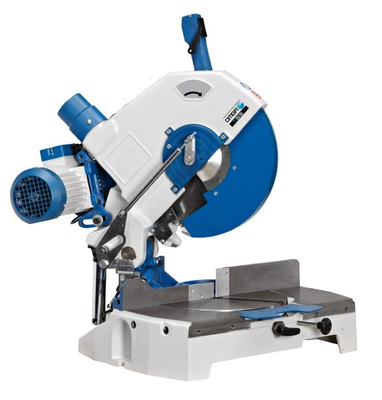

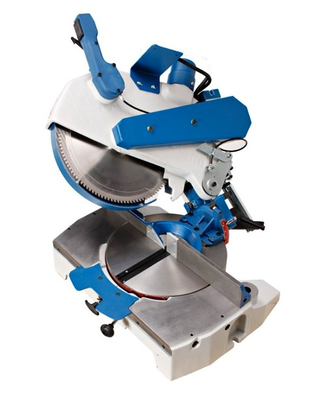

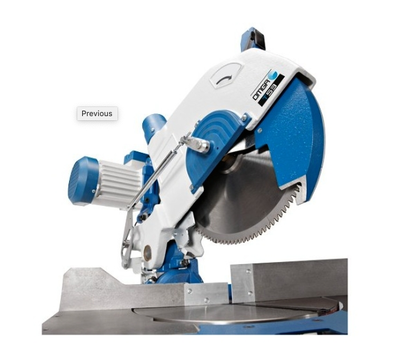

Omga Model T 53 370
Data Sheet:
Cross Cut Capacity 90 deg.: 6 11/16" - 7 1/4"
Cross Cut Capacity 45 deg.: 4 3/4" - 5 7/8"
Max. Depth of Cut 45 deg.: 2"
Max. Depth of Cut With Head at 90 deg.: 4 5/16" -4 3/8"
Motor Power: 4HP
Saw Blade Bore: 1"
Saw Blade Diameter: 14"
Arbor Speed: 3400
Dust Port: 3 1/8"
General Specifications:
Heavy duty and flexible Compound Precision Mitre Chop Saw
Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees
Manual locking device for all the intermediate angles
Equipped with a 45 degree positive stop for precision beveling
Belt driven transmission and a powerful 4 HP induction motor ideal for heavy duty industrial usage
