NEW OMGA TR

Omga Model TR 2A
Data Sheet:
Max Distance Between Saws: 9' 2"
Min. Distance Between Saws: 8' 3/4"
Min. Distance Between Saws 45 deg: 15' 1/8" or 6' 11/16" (+opt. +alt)
Cross Cut Capacity 90 deg: 5' 1/2"
Cross Cut Capacity 45 deg: 4'
Max. Depth of Cut: 3' 1/2"
Motor Power: 2 x 3HP
Saw Blade Bore: 1"
Saw Blade Diameter: 12"
Arbor Speed: 3200
Dust Port: 2 x 3 1/8"
General Information:

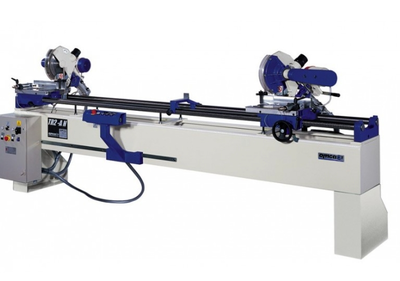

12" Double Mitre Saw is equipped with one fixed and movable head
Positive mitering stops at +45,-45 and 90 degrees
Controlled by an electro-pneumatic system which enables the operator to select between three automatic working cycles:
1) Simultaneous cycling of both blades
2)Alternate cycle allowing the machine to cut very short pieces at 45 degrees
3) Single head cycling
Two standard pneumatic vertical clamps ensure the perfect stability of the work piece
Standard overload protection on each of the two main motors
Options:
Vertical or horizontal pneumatic clamps
extended cutting lengths to 11'4", 14' 7" and 18' available
Brackets for short pieces
Air over oil descent of the heads
Spray mist system
