NEW OMGA TR
Overview
Specs
Omga Model TR 2B I INT NC
Data Sheet:
Max Distance Between Saws: 9'2"
Min. Distance Between Saws: 23 5/8"
Min. Distance Between Saws 45 deg: 23 5/8"
Cross Cut Capacity 90 deg: 6 3/4"
Cross Cut Capacity 45 deg: 4 1/2"
Max. Depth of Cut: 4 1/4"
Motor Power: 2 x 4HP
Saw Blade Bore: 1"
Saw Blade Diameter: 370mm (15")
Arbor Speed: 3200
Dust Port: 2 x 3 1/8"
General Information:

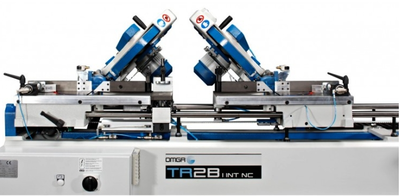

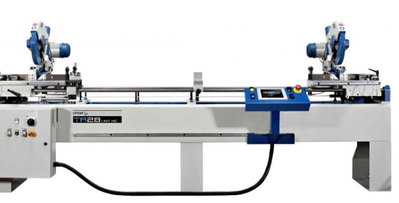

14" Compound Double Mitre Saw fitted with one fixed head on the left and on movable head on the right with automatic traverse

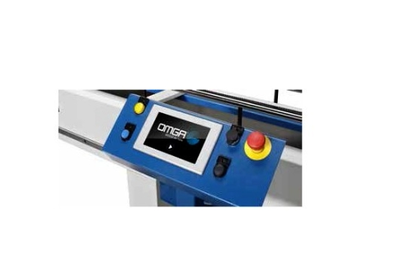

7" Touch-Screen display NC
Precision ball bushing for the smoothness of movement
Positive stops for all the main angles are standard on both heads
One standard pneumatic vertical clamp on each head guarantees stability to the workpiece
Options:
Additional horizontal or vertical pneumatic clamps
Increased cutting length to 11"4", 14'7" or 18' available
Air over oil descent of the heads
Brackets for short pieces
Spray mist system
