NEW OMGA T

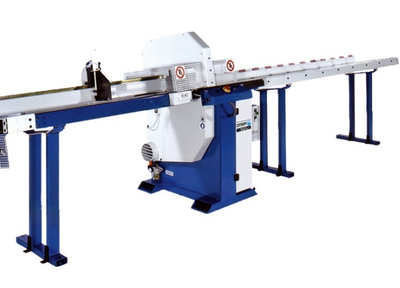

Omga Model T 521 ST
Data Sheet
Max. Cutting Width: 12 5/8"
Max. Cutting Depth: 5 1/2"
Motor Power: 7HP
Saw Blade Bore: 35mm
Saw Blade Diameter: 18" (20 Opt)
Arbor Speed: 3200
Dust Port: 6"
General Info
Pneumatic adjustable speed pop-up chop saw, pneumatically activated through a foot pedal control
Automatic workpiece clamping in cycle with blade stroke
The clamp also acts as the blade guard and ensures total safety for the operator
Suited for length cutting and defect removal
Can be equipped with infeed and out feed roller table wit scale for positioning of manual or pneumatic flip over stops
Options
9' Outfeed Table with Fence
12' Outfeed Table with Fence
9' Table with Rollers and Fence
12' Table with Rollers and Fence

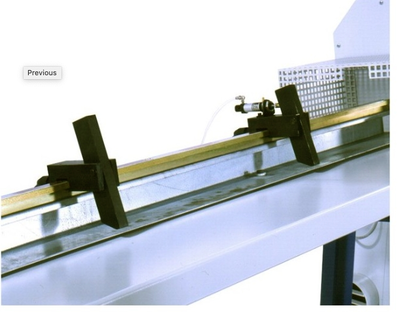

Balancing Moveable Stop
Pneumatic Moveable Stop
Pneumatic Bridge Stop w/manual Controls
5' Motorized Outfeed Conveyor Belt
10' Motorized Outfeed Conveyor Belt
Pneumatic Bridge Stop w/automatic Controls
