NEW OMEC F

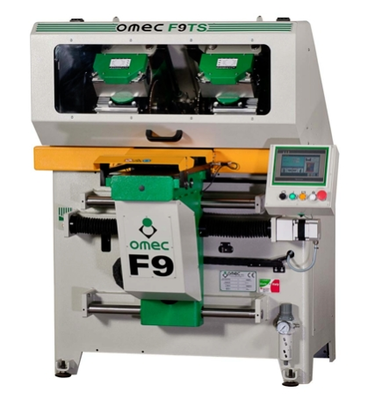

Omec Model F 9TS Door Frame Miter
Technical Data:
On board machine installed power: 10.5Kw
Working pressure: 0.7M Pascal
Mill cutter: 1
Mill cutter revolutions: 5,600rpm
Blades: 2
Blades revolutions: 2,800rpm
Drill bit (optional): 1
Drill revolutions: 2,800rpm
Average production of cases: 60/hr
Average production of crosspieces: 30/hr
Average production of a full door frame: 25/hr
Standard Equipment
Designed to mill joints on door frames
Extremely easy to use with high precision and fast work process
Utilizing two milling and two saws produces 45 degree cuts and joints
Automatically mills the jamb and casing as one unit, saving labor needed to assemble the pieces
Having left and right tooling the F9 completes one joint at a time
Built in touchscreen brings all the controls to the operator
Numeric Control runs the work cycle
