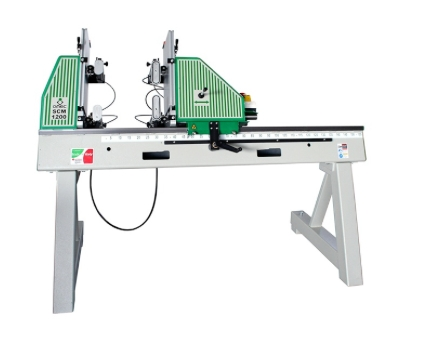

Omec Model SCM 1200 Hydraulic Drawer Clamp
Technical Data
On board machine installed power: 0.5 HP
Working pressure: Mpascal 0.7
Drawer production output: Up to 60 boxes/hour
Workpiece Limits
Draw Length: min. 250mm max. 1200mm
Draw Width: min. 240mm max. 600mm
Draw Thickness: min. 60mm max. 260mm
Standard Equipment
Took kit for adjustments and maintenance
User's and instruction manual

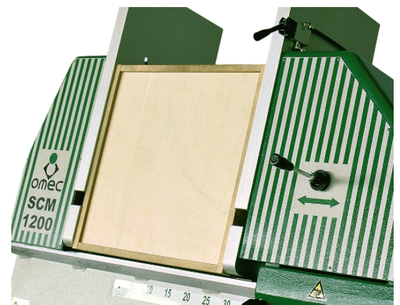

This drawer box clamp is unique in that the operator assembles the loose box parts in the clamp itself not prior to introducing to the clamp
Pneumatic cylinders lock in the drawer sides and spring guides the fronts and backs
A pneumatic vacuum holds the drawer bottom in place when the hydraulic cylinder compresses the box
Total time from loose parts to completed box is less than one minute.
