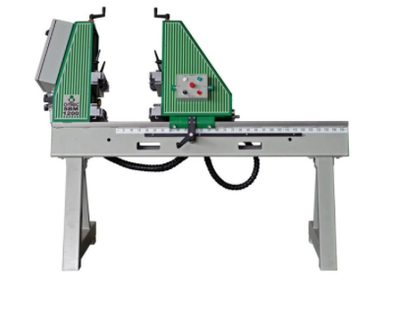

Omec Model SBM 1200 Drawer Box Clamp
Technical Data
Power installed on the machine: 1.12 Kw
Working pressure: 0.4 MPascal
Boxes production: 180 n/h
Workpiece Limits
Draw Length: min. 100mm max. 1050mm
Draw Width: min. 70mm max. 400mm
Draw Thickness: min. 2mm max. 15mm
Standard Equipment

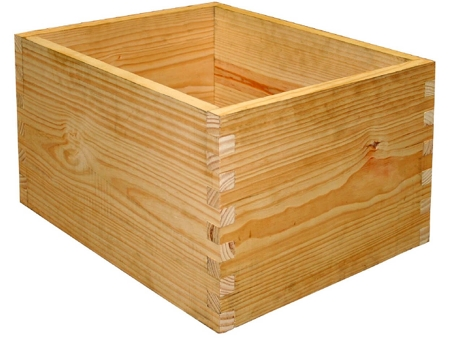

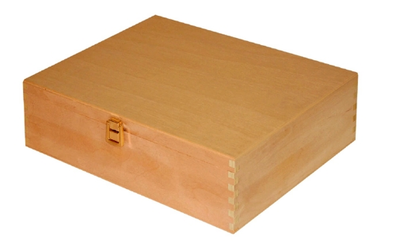

Hydraulic Manual clamp has been designed and built for assembling small boxes
The size of the box is adjusted manually by the operator
The machine has a hydraulic power plant which drives three cylinders to press the four sides of the box previously inserted in the relevant clamps
Controls are located on a built-in control panel
The SBM1200 model is controlled by a programmable controller (PLC) which is entrusted with the working cycle control
